Understanding rounded, scalloped, and chamfered corners
Rounding produces a curved corner, scalloping replaces the corner with an edge that has a curved notch, and chamfering replaces the
corner with a straight edge, also known as a bevel.

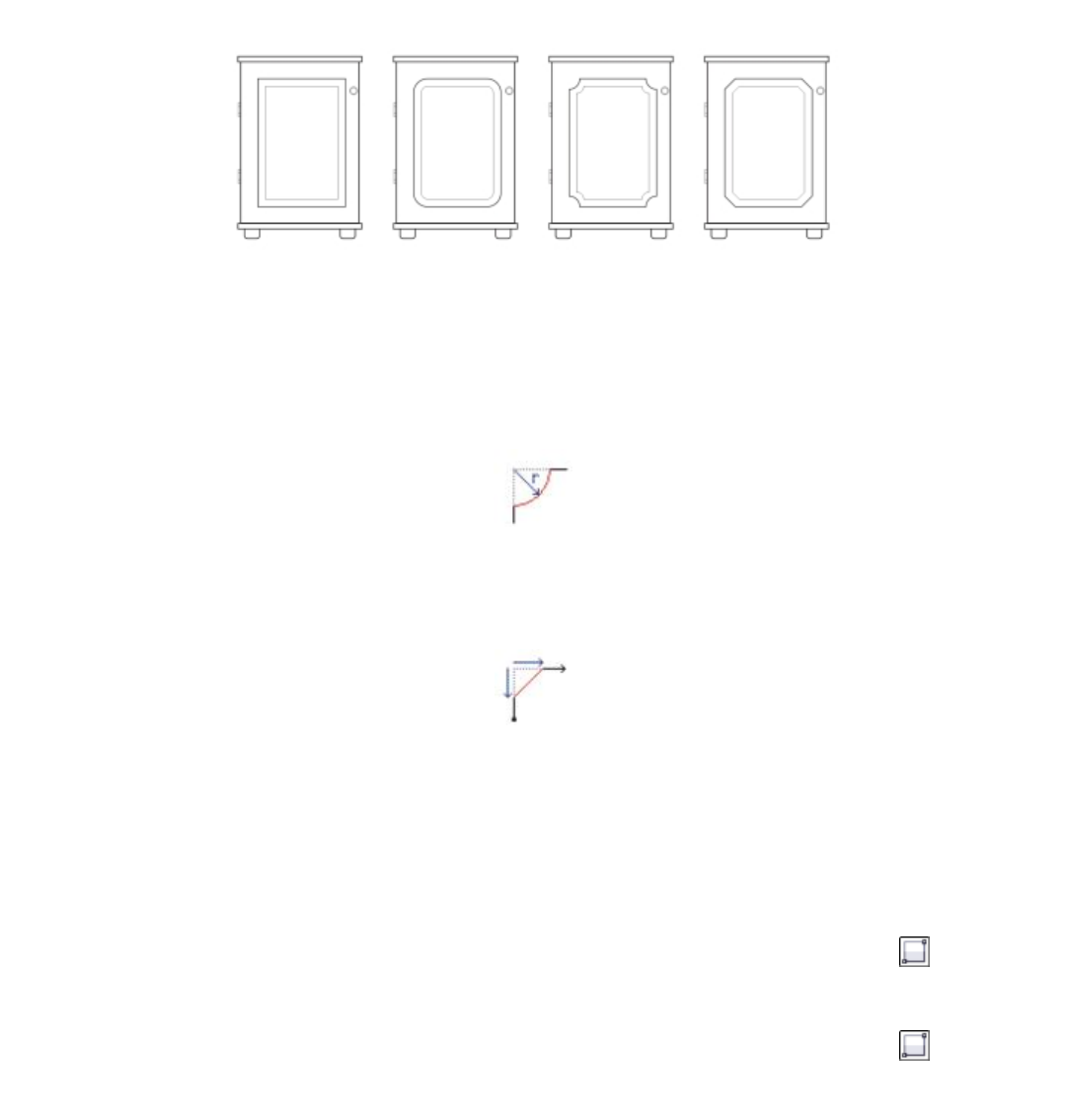

The cabinet doors have different styles applied to the corners. From left to right you can see
standard corners with no changes, filleted corners, scalloped corners, and chamfered corners.
To draw rectangles or squares with rounded, scalloped, or chamfered corners, you need to specify the corner size. For rounding or scalloping
a corner, the corner size determines the corner radius. The radius is measured from the curve’s center to its perimeter. Higher corner size
values produce more rounded corners or deeper scalloped corners.
From left to right, you can see the radius of a rounded corner and the radius of a scalloped corner.
The size value for chamfering a corner represents the distance from the original corner to the beginning of the chamfered edge. Higher
values produce a longer chamfered edge.
For more information about modifying the corners of curve objects, such as lines, text, or bitmaps, see “Filleting, scalloping, and chamfering
corners of curve objects” on page 182.
To draw a rectangle or square by dragging diagonally

To Do the following
Draw a rectangle
In the toolbox, click the 2-point rectangle tool . Drag in the
drawing window until the rectangle is the size you want.
Draw a square
In the toolbox, click the 2-point rectangle tool . Hold down
Ctrl, and drag in the drawing window until the square is the size
you want.
