User Manual

7

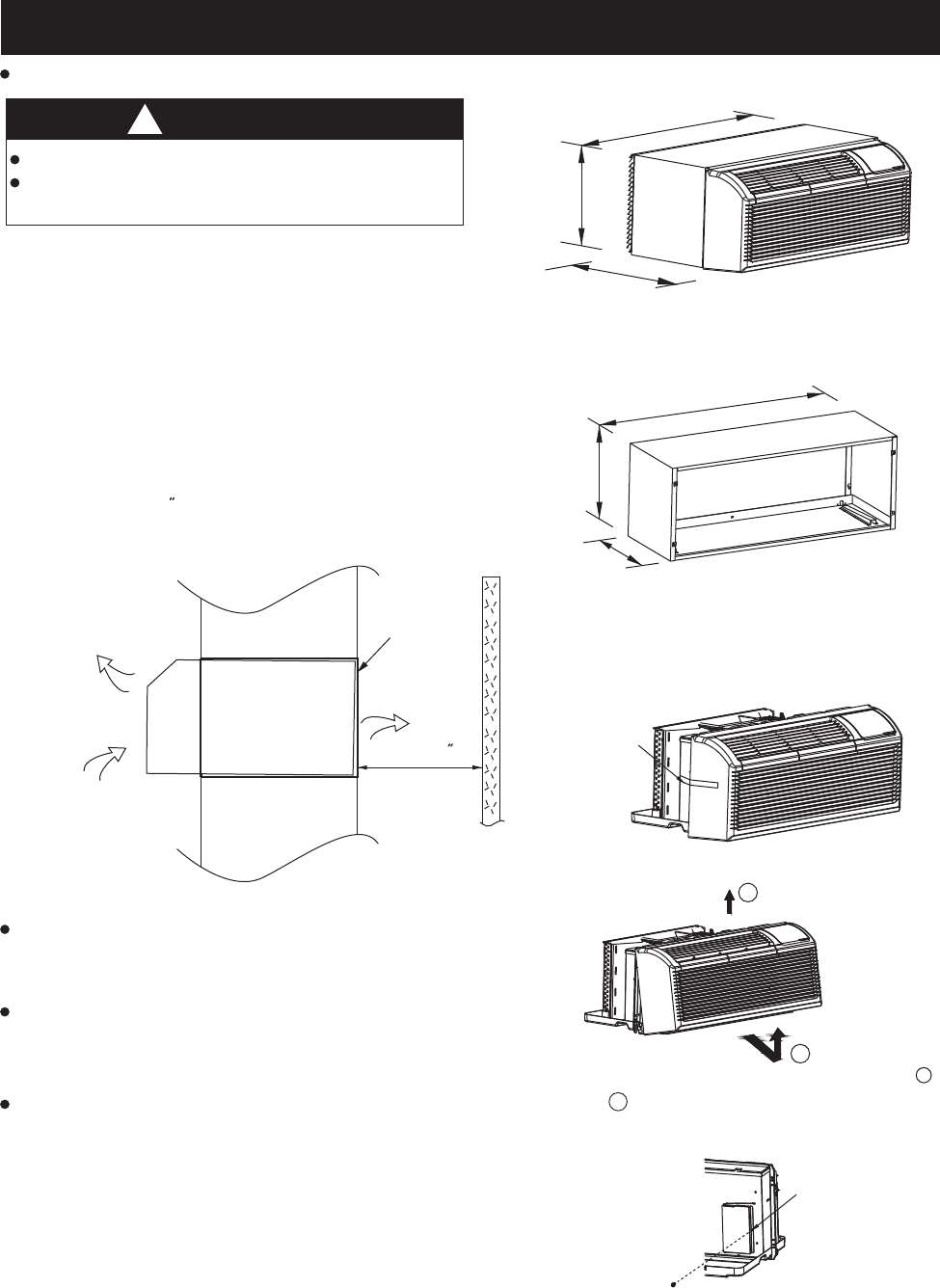

INSTALLATION
HOW TO INSTALL THE UNIT
- For existing sleeve,you should measure the wall
sleeve dimensions.
- Install the new air conditioner according to these
installation instructions to achieve the best performance.
All wall sleeves used to mount the new air conditioner
must be in good structural condition and have a rear
grille that securely attaches to the sleeve or the flange
of the sleeve to secure the new air conditioner.
- To avoid vibration and noise,make sure the unit is
installed securely and firmly.
- When installing the sleeve,make certain there is
nothing within 20 of the back that would interfere
with heat radiation and exhaust air flow. (See Fig.2)
!
CAUTION
There are sharp edges that can cause serious cuts.
When lifting the air conditioner,it is HEAVY.Use 2
people to lift.
COOLED
AIR
INTAKE
AIR
WALL
WALL
HEAT
RADIATION
SLEEVE
Over 20
Fig.2
PREPARATION OF SLEEVE ASSEMBLY(optional)
- Refer to the installation instruction of sleeve assembly
for details.
UNIT INSTALLATION
- Carefully remove shipping tapes from the front panel.
(See Fig.3)
Fig.3
Shipping
tape
- Remove the shipping screw from the vent door.(See
Fig.5)
Fig.5
- Remove the front panel. (See Fig.4)
Shipping
screw
1067mm/4 2inch
408mm/1 6in ch
606mm/2 3.9 inch
Dimension of air conditioner
376mm/14.8 in ch
408mm/16in ch
1067mm/4 2in ch
Dimension of sleeve assembly (optional)
2
1
Fig.4
- Pull out at the bottom to release it from the tabs .
- Then lift up .
1
2
PREPARATION OF REAR GRILLE ASSEMBLY(optional)
- Refer to the installation instruction of rear grille
assembly for details.
