User Manual

CONTROL PANEL OPERATION

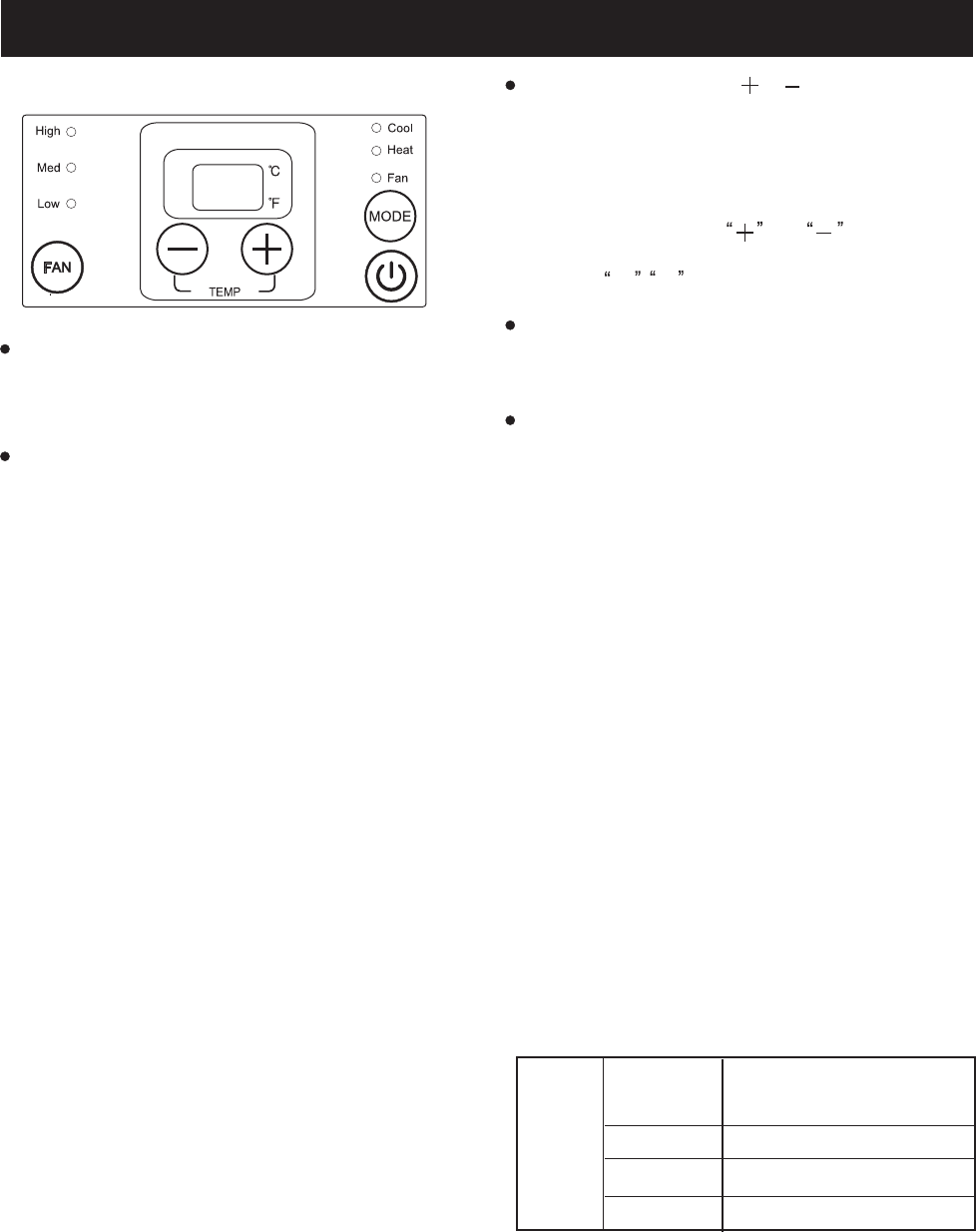

The control panel keypad will look like the following
Fig.1:
POWER
- Press the POWER button to turn the unit on or off.
When the unit is on,the power indicator light will be
green.When the unit is off,the light will go out.
MODE
- Push this button to cycle through the modes from
COOL-HEAT-FAN-COOL.The indicator light beside
the "MODE" option will illuminate, identifying the
mode selected.
O O
- COOL:The range of set temperature is 17 C/62 F
O O
~30 C/86 F.Cooling begins automatically when the
room temperature is above the set point,and stops
O O
when the room temperature is 2 C(4 F) below the
set point.But the compressor will run 5 minutes at
least in COOL mode before stoping. The fan runs
in continuous mode.
O O
- HEAT:The range of set temperature is 17 C/62 F
O O
~29 C/84 F.For heat pump models,the unit can
alternate to run between in reverse cycle heat mode
and electric heater mode according to the difference
between the setting temperature and the room
temperature.The fan motor cycles on and off
with the compressor and electric heater.
NOTE:
The reverse cycle and electric heater cannot be
run at the same time. In following cases, it is normal
that the reverse cycle does not operate.
1.When the outdoor temperatrue is lower than
O O
4 C/40 F or the room temperature falls to
O O
4.5 C/8 F below the set point temperature.
2.There is a 3-minute minimum compressor run
time at any setting to prevent short cycling. The
indoor fan motors starts before the compressor
and stops after the compressor cycles off.
3.When frost builds up to the evaporator coils, the
unit will defrost automatically and the compressor
will cycle off.
- FAN:Fan operation only without heating and cooling.
UP/DOWN BUTTONS ( / )
- Push the UP (or DOWN) button to increase (or
decrease) the set temperature of the unit in cooling
or heating mode.The temperature can be set by
O O
increments of 1 C (1 F).The setting temperature
appears in the display.
NOTE:Press and hold and buttons together
for 3 seconds will alternate the temperature display
O O
between C & F scale.
FAN (FAN SPEED)
- Every time you push this button,the fan speed
cycles through the settings as follows:HIGH-MED-
LOW-HIGH.
Fig.1
DISPLAYS:
O O
- Shows the set temperature in C or F. While on
Fan only mode,it shows the room temperature.
Control code (on some models):
LC-Pads on the control panel is not available.The
unit can be setted by using wire cotroller only.
Error codes:
AS-Room temperature sensor error;
ES-Evaporator temperature sensor error;
CS-Condenser temperature sensor error;
OS-Outside temperature sensor error;
HS-Exhaust temperature sensor error;
NOTE:When error occurs,unplug the unit and plug
it back in.If error repeats, call for service.
Other codes:
O O
LO-Room temperature is lower than 0 C/32 F;
O O
HI-Room temperature is higher than 37 C/99 F.
All the illustrations in this manual are
for explanation purpose only. Your air
conditioner may be slightly different.
The actual shape shall prevail.
NOTE:
Note: Performance may be reduced outside of
these operating temperatures.
NOTE:This air conditioner is designed to be
operated under condition as follows:
Cooling
operation
Outdoor temp:
O O O O
18-43 C/64-109 F (18-52 C/64-125 F
for special tropical models)
Indoor temp:
6
Heating
operation
Outdoor temp:
Indoor temp:
O
O
17-32 C/62-90 F
-5-24
O
O
C/23-76 F
O
O
0-27 C/32-80 F
