User Manual

This unit has many featrues.The servicer must be
familiar with these features in order to properly
service the unit.
AIR CONDITIONER FEATURES
Compressor Restart Delay
This feature extends the overall life of compre-
ssor by preventing the short-cycling of the air
conditioner.When the compressor restarts,the
unit is designed to give a minimum of three
minutes to have a time of equalizing the refrig-
erant pressures for optimizing cycling.
Memory
The unit has memory .If power is lost,all of the
control settings(mode,fan speed,on/off and
configuration) are remembered.So when power
is restored,the unit will start back up in the mode
(and configuration) it was in,when power was
lost.
Automatic Evaporator Freeze Protection
Automatically to keep the evaporator from
freezing,the compressor is tuuned off and the
indoor fan is turned on when the evaporator
temperature is too lower.If the evaporator
temperature is not too lower this function is off.
Automatic Quick Warm-up (for heat pump
models only)
O O
If the room temperature falls to 4.5 C/8 F
below the set point temperature,the reverse
cycle heat is shut off and the electric strip heat
is turned on for one cycle,until heating is
satisfied.
LED Indicators and Buttons
The touch pad has buttons for MODE,FAN,
POWER,SETPOINT UP and SETPOINT DOWN.
It also has LEDs that correspond to the mode,
fan speed,power and setpoint operation,to
indicate the unit s status.LEDs for HIGH,MED
and LOW indicate the fan speed that is selected.
LEDs for FAN,COOL and HEAT indicate what
operating mode is active.LED for POWER is the
unit ON/OFF status LED.If the unit is in ON mode,
the LED will be green.If the unit is OFF,the LED
will be off.
,
Unit Configuration
NOTE: HEAT mode is for Cooling & Heating models only.
O O
F or C
O O
The unit can display in either F or C.
High Temperature Protection In Heating
Operation
The compressor and(or) electric heater will be
switched off to prevent damage in high indoor
blow air temperature or error indoor temperature
sensor.
5

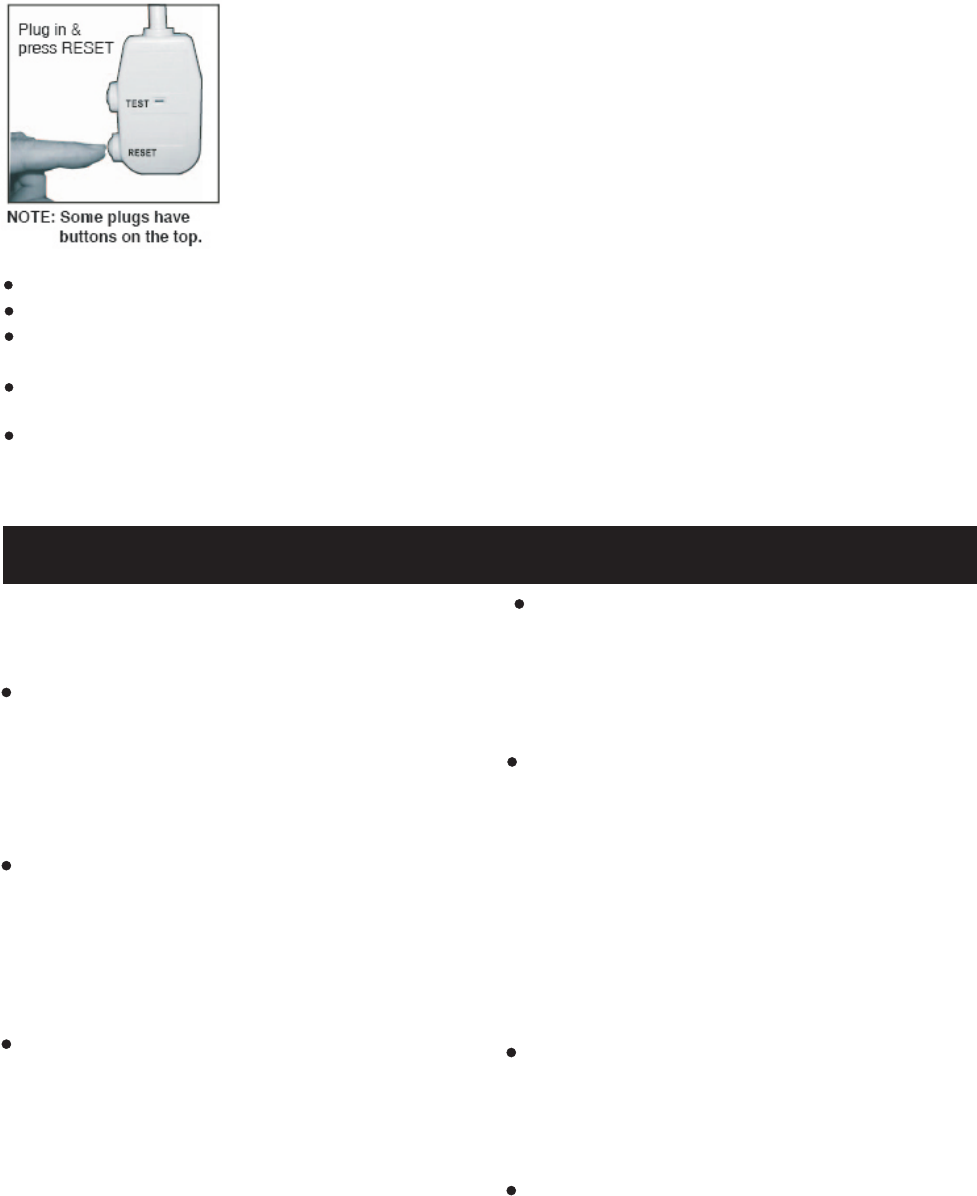

Operation of Current Device(optional)
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head.
Press the TEST button, you will notice a click as the RESET
button pops out.
3. Press the RESET button, again you will notice a click as the button
engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this it also indicated by a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be
reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one obtained from the
product manufacturer.
When 265V units are to be installed,the power supply must be permanent wiring.Permanent
wiring may be done through the accessory subbase.An exposed cord connection on 265V units
are not permitted.
