User guide

8
10
12
14
16
80
55
35
-40
Ambient Temperature
(Degrees Celsius)
Supply Voltage

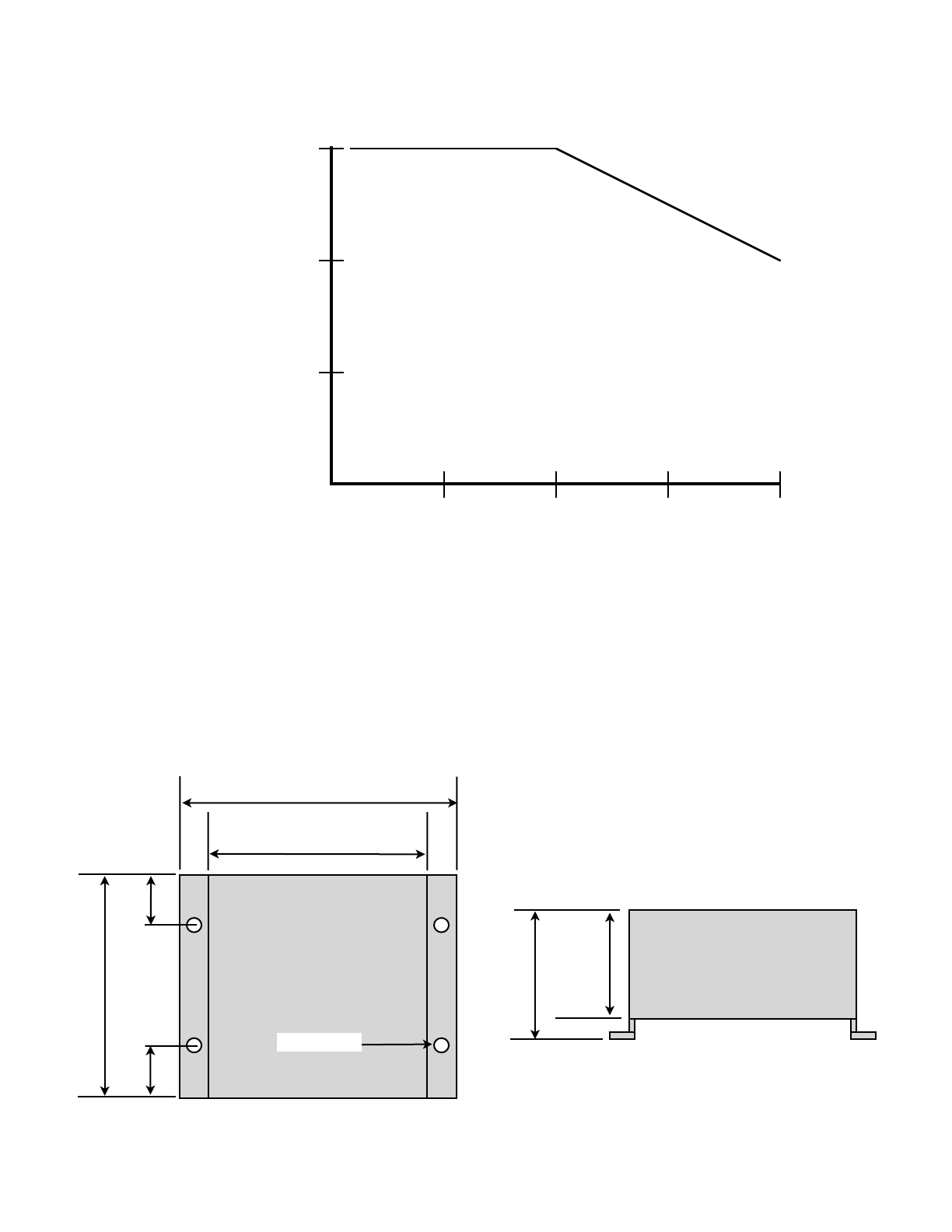

Temperature/Voltage de-rating curve
The Suprex units should be operated with a filtered 12 Volt nominal DC supply.
Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage derating curve.
Voltage should not exceed 16 VDC under normal operating conditions.
Temperature Rating vs Voltage Derating Curve
4.45
3.15
0.80
3.08
0.80
ø0.20 X 4
1.70
2.00
Cypress Suprex® SPX-7500 Enclosure Dimensions
