18

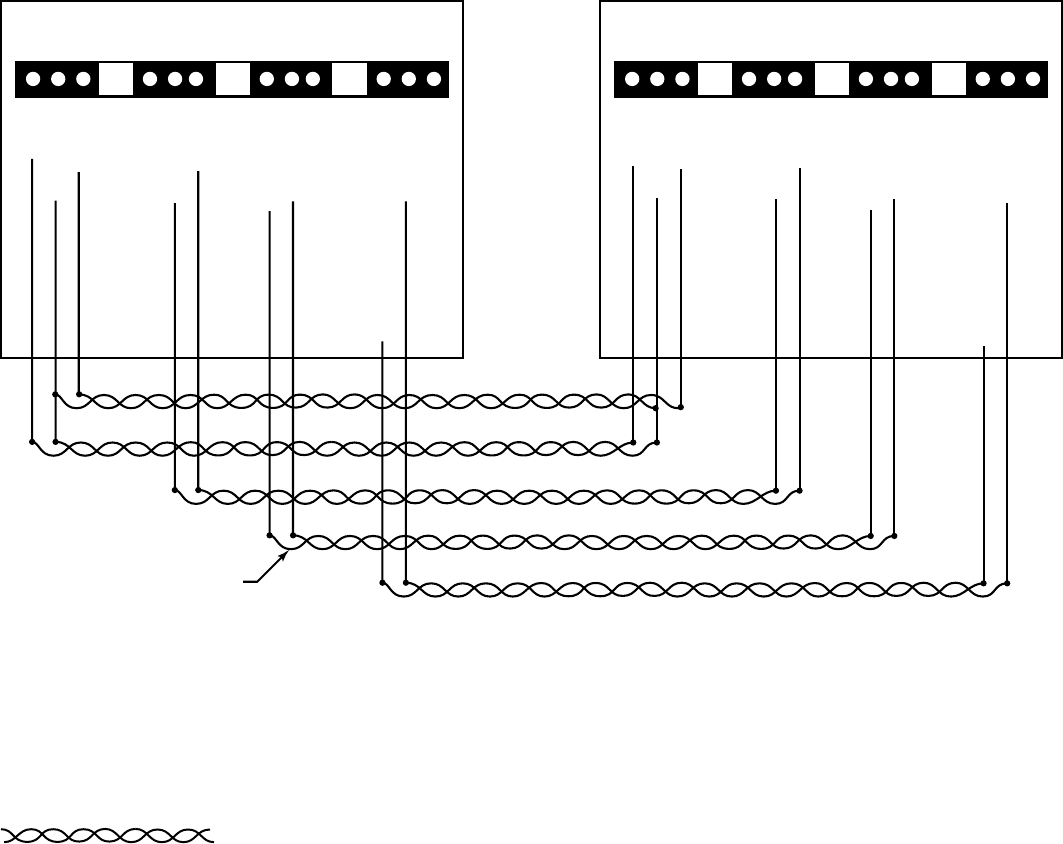

SYNCHRONOUS OPEN/CLOSE OPERATION DGC 2000
OPEN
COMMON
CLOSE
JS1
STOP
COMMON
PULSE
JS3
GATE EDGE
COMMON
GATE EDGE
JS6
VEHICLE LOOP/PHOTO EYE
COMMON
VEHICLE LOOP/PHOTO EYE
JS9
OPEN
COMMON
CLOSE
JS1
STOP
COMMON
PULSE
JS3
GATE EDGE
COMMON
GATE EDGE
JS6
VEHICLE LOOP/PHOTO EYE
COMMON
VEHICLE LOOP/PHOTO EYE
JS9
LEFT RIGHT
only if needed
Controllers must be operated from same 110v line.1.
Synchronous* Open/Close operation ins obtained by installing two twisted pair cables between the JS1 2.
Open/Common and Close/Common connectors of two DGC 2000 controllers.
Connection required only with the Gate Edge or other Safety Device.3.
*Formerly referred to as Master-Slave Operation
Twisted pair cable - Belden P/N 9501
