16

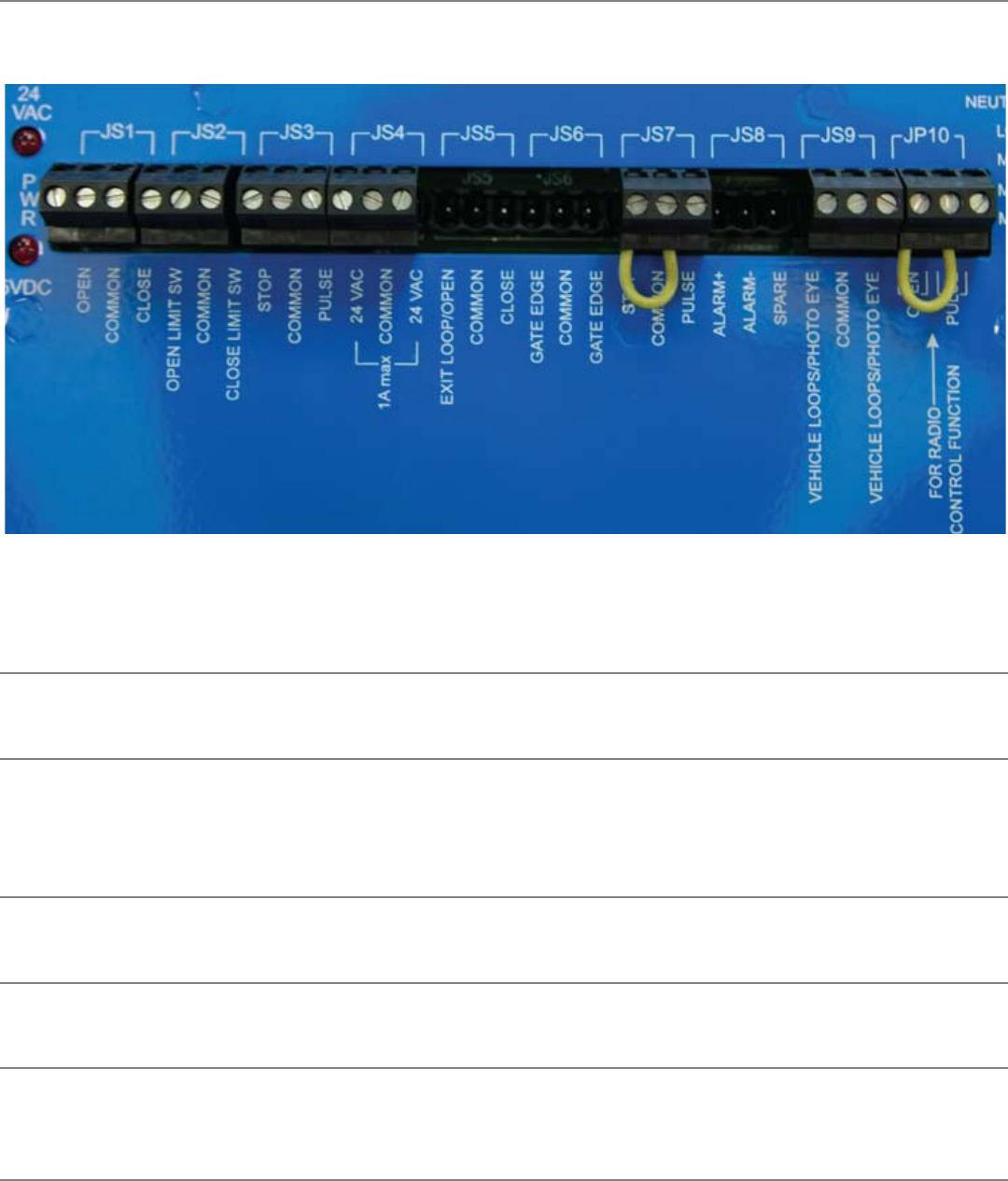

BLUE BOX FORMAT
All Commands are dry contact, except JS4 & JS8
JS1
Open / Common / Closed. — Dry Contact Command: For Open & Closed gate function, Telephone Entry,
Digital Key Pad, Postal Box, etc...
JS2
Limit Switches — Pre-wired, normally a closed circuit
JS3
Stop / Common / Pulse, Stop / Common — Normally a closed circuit, for a stop button on 3 button switch
(remove jumper wire on JS7 if JS3 is used) Pulse/Common for use when “close timer is o to open & close gate
with transmitter. Must also change JP10 jumper to Common/Pulse
JS4
24V / Common / 24V / 1Amp 24VAC, for use with accessories
JS5
Stop / Common / Close — Same as JS1, good to use for exit loop
JS6
Gate Edge / Common / Gate Edge — 2 wire safety edge input-Gate will stop back 3” & stop has started with a
constant transmitter or open command. Also to be used with rear photo eye only.
JS7
Same as JS3 — Jumper wire must be used between Stop / Common in order to work. Pulse / Common for
use when “close Timer” is o to Open / Close gate with transmitter. Must also change jumper wire on JP10 to
common / pulse.
