400 Operator And
455 D Control Panel Installation Manual
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
F
AIL SAFE:
If this function is activated,
it enables a function test of
the photocells before any
gate movement.
Y = Enable
No = Disabled
P
RE FLASHING (5S):
5s before start of move-
ment.
Y = Enable
No = Disabled
E
LECTRIC LOCK ON LEAF 2:
For using the electric lock on
leaf 2 instead of on leaf 1.
Y = Enable
No = Disabled

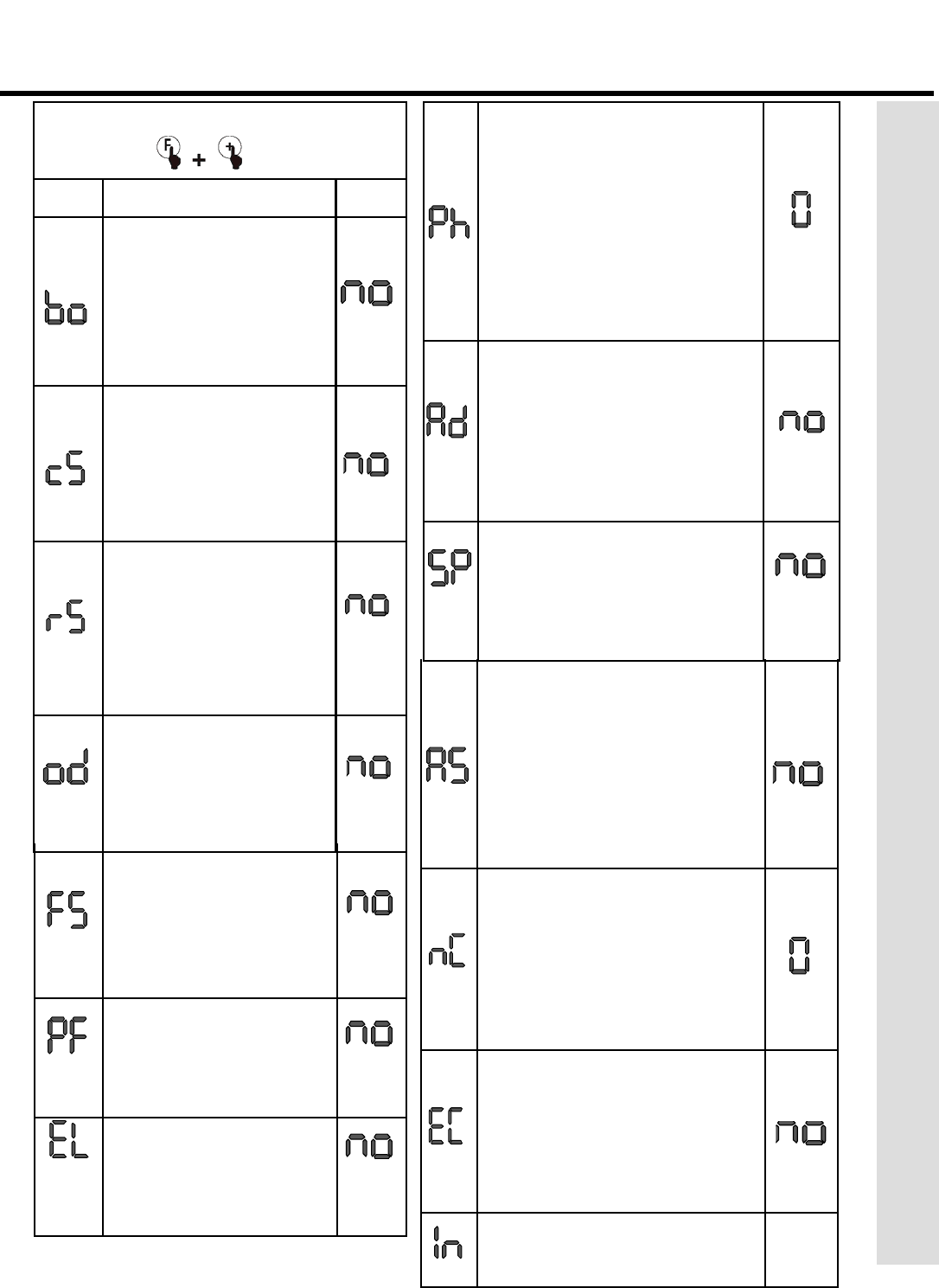

ADVANCED PROGRAMMING
Display Function Default
M
AXIMUM TORQUE AT INITIAL
THRUST: The motors oper-
ate at maximum torque
(ignoring the torque set-
ting) at start of movement.
Useful for heavy leaves.
Y = Enable
No = Disabled
L
AST STROKE AT CLOSING:
The motors are activated at
full speed for 1s to facili-
tate locking of the electric
lock.
Y = Enable
No = Disabled
R
EVERSING STROKE:
Before opening, while the
gate is closed, the motors
thrust to close for 2 s thus
facilitating release of the
electric lock.
Y = Enable
No = Disabled
L
EAF 2 OPENING DELAY (2S):
Enables delayed start of
leaf 2, avoiding interfer-
ence between leaves.
Y = Enable
INDICATOR-LICHT:
If 0 is selected, the output func-
tions as a standard indicator-light
(lite at opening and pause, flashing
at closing, and off when gate
closed). Time can be adjusted
from 0 to 59s in 1s increments,
and from 1.0 to 4.1 min. in 10s
steps.
0 = Standard Indicator-Light
From 1 to 4.1 = Timed Output
CLOSING PHOTOCELLS REVERSE AT RE-
LEASE: Enable this function if you
want the closing photocells to stop
the gate and reverse it after the
beam is cleared. Default setting is
immediate reverse.
Y = Enable
No = Disabled
A.D.M.A.P. F
UNCTION:
If this function is enabled, the
safety devices to comply with
French standard NFP 25/362.
Y = Enable
No = Disabled
ASSISTANCE REQUEST (COMBINED WITH
NEXT FUNCTION): If activated, at the
end of countdown (settable with the
next function, i.e. “Cycle program-
ming”) it effects 8s of pre-flashing
at every Open pulse (job request).
Can be useful for setting scheduled
maintenance jobs.
Y = Enable
No = Disabled
C
YCLE PROGRAMMING:
For setting count down of system
operation cycles. Settable (in thou-
sands) from 0 to 99 thousand cy-
cles. The displayed value is up-
dated as cycles proceed. This func-
tion can be used to check use of
the board or to exploit the
“Assistance Request” function.
E
XTRA WORK TIME:
When operating, if reversing occurs,
and if the leaf does not reach its
end contact point, you can activate
this function to increase work time.
Y = ACTIVE
N
O = DISABLED
E
XIT PROGRAMMING:
Exit from programming.
