ACTIVATING DEVICES AND RADIO RECEIVER: The activating
devices and radio receiver for your gate must have
normally open (N.O.) contacts. Connect such devices to
terminals “OPEN DEVICES”.
N
OTE: The FAAC radio receiver plugs into the 5
prongs labeled J2 on the 455D (Quick connect
port).
D
ECODER CARD: If you are installing the Digicard
magnetic card reader, or the Digikey keyboard, use the
quick-fit connector J2 for the DS decoder card (see
Figure 1).
N
OTE: If your using both a receiver and decoder,
hard wire the decoder and plug in the receiver.
OPEN/HOLD OPEN DEVICE: To open and hold open the
gate, simply maintain a contact across terminals “OPEN
DEVICES”. (“A” Mode only)
S
TOP BUTTON: The stop button you install must have
normally closed (N.C.) contacts. Multiple stop buttons
must be wired in series. Connect your stop device
between terminals 11 and 16. (This jumper is already
provided form factory.
N
OTE: The 455 will not operate the motors
without a closed circuit between 11 & 16.
The LED Indicators: The nine light emitting diodes
(LEDs) on the control panel can be used to check for
the proper function of the devices attached to the
panel. The LED lights are on whenever the contacts
are closed across each of the respective terminals.
OP_A and OP_B (Partial Opening) should illuminate only
when an activating signal is sent for 2 and 1 gate leaves,
respectively. STOP should be illuminated except when
the stop button is pressed. FSWOP and FSWCL should be

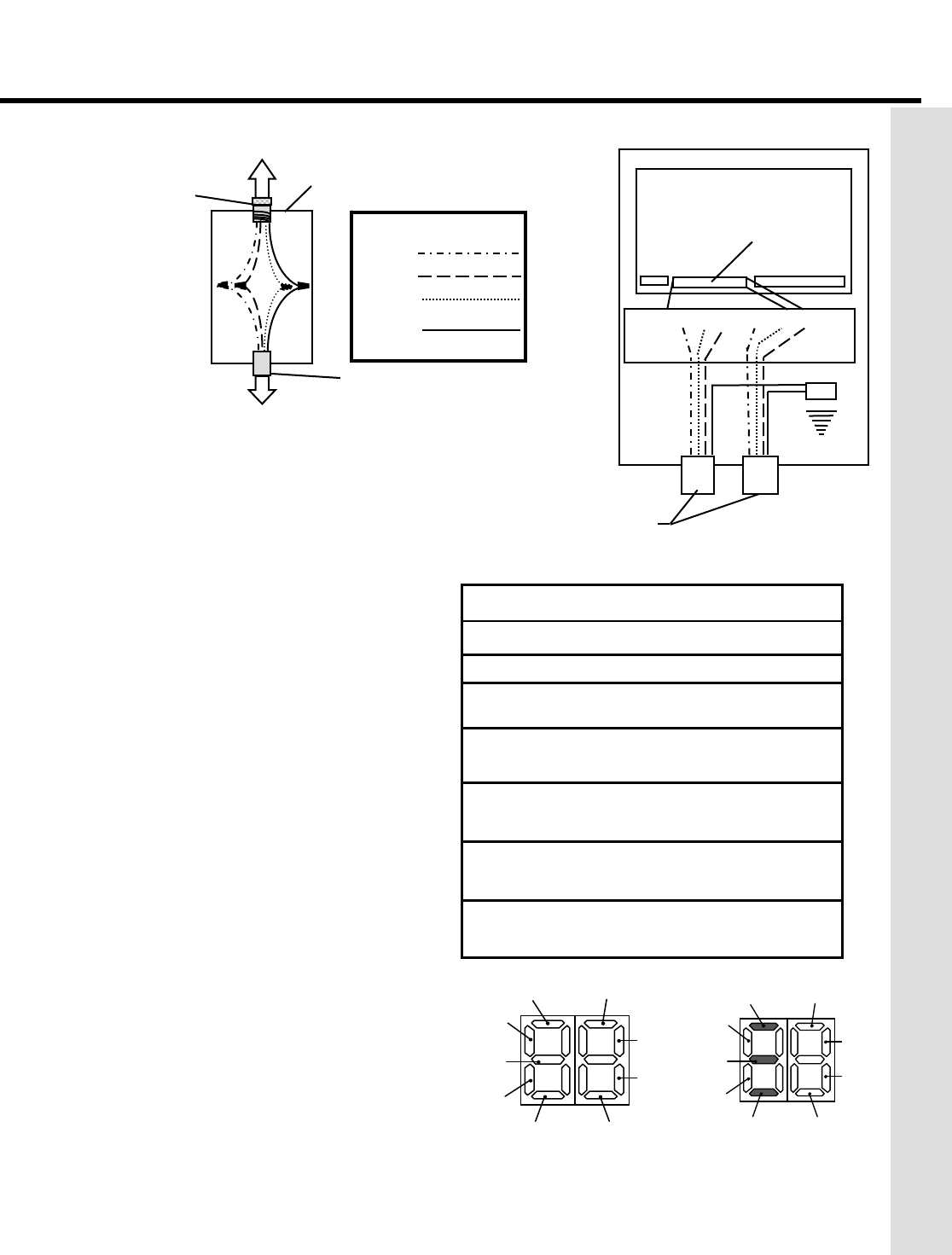

Figure 11.
Wiring detail (a) inside
the junction box and
(b) from the junction
box or operator to the
high-voltage terminal
strip on the 455 D
control panel
FSWOP
FSWCL
OP_A
OP_B
STOP
FCA1
FCA2
FCC1
FCC2
LED On Off
OP_A
Command Given No Command
OP_B
Command Given No Command
Stop
No Command Command Given
FSW
Open
Opening reversing
devices clear
Reversing device
triggered
FSW
Close
Closing reversing
devices clear
Reversing device
triggered
FCA1
FCC1
Flashes when gate coder is in use.
Operator 1
FCA 2
FCC 2
Flashes when gate coder is in use.
Operator 2
U.L. Listed Control Panel Enclosure
Cord grip or
conduit from
U.L. Listed gate
operator(s)
(b)
Op.1 Op.2
COM OP CL COM OP CL
J3 J4
High-voltage
terminal strip
455 MPS Control Panel
Ground
J1
To the U. L. Listed gate operator
To the U.L. Listed
control panel
U.L. Listed
cord grip
Junction box
Legend
White
Red
Black
Yellow/
Green
(a)
Conduit to U.L. Listed
control panel enclosure
according to N.E.C.
FSWOP
FSWCL
OP_A
OP_B
STOP
FCA1
FCA2
FCC1
FCC2
This display shows the normal
status of the control panel.
This display shows the
meaning of each LED.
Figure 12. The 455 D display.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
