400 Operator And
455 D Control Panel Installation Manual

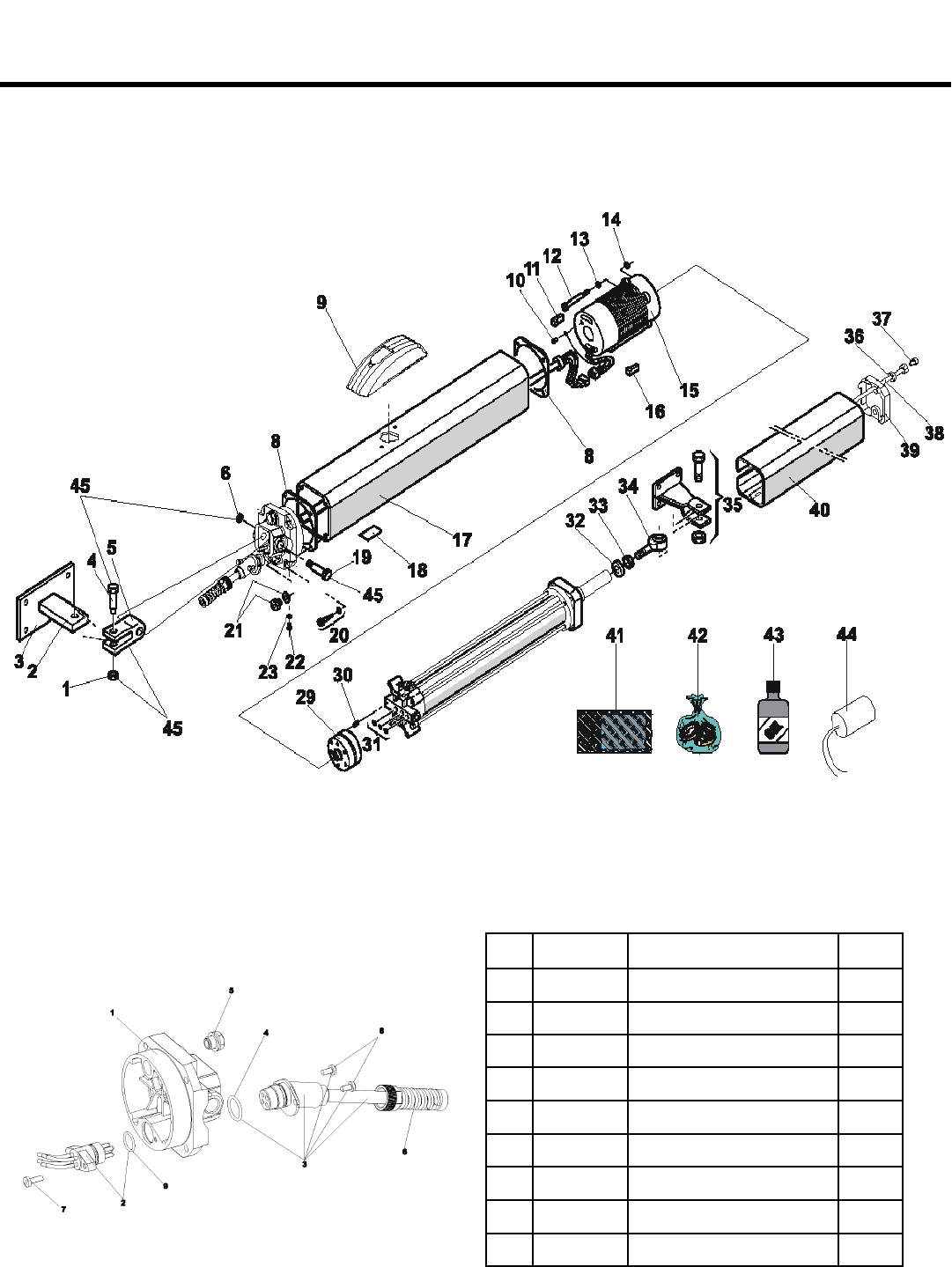

EXPLODED VIEW, 400 CBAC
POS PART # DESCRIPTION QTY
1 7171485 Flange (Rear 08’) 1
2 417010 Wiring Harness (08’) 1
3 63001005 Electric Cable 1
4 N/A O-Ring (18x1mm) 1
5 7110015 Plug (Oil Fill) 1
6 7109135 Strain Relief (Pig Tail) 1
7 701479 Screw (3x12mm) 1
8 701466 Screw (3x8mm) 2
9 7090725 O-Ring (Internal Harness) 1
400 REAR FLANGE PARTS LIST
