System Controller LC-AVMHTC1-0 (HTC) Installation Guide 1

this information may chang

Applications or Application Requirements

The center of the Touch4 system is the System

Controller (HTC), which communicates with Johnson

Controls and third-party products to enable office

automation and interaction of individual devices.

The Touch4 system is made of a combination of

Johnson Controls or third-party devices that are

controllable using BACNET, TCP/IP, Infrared (IR), RS

232, contacts, relays, WiFi, ZigBee, etc.

The Touch system provides a customizable navigation

device user interface. It has the ability to easily tie all

the devices to the system to easily program

interactions between devices on the system.

On the Touch4 system, you set up the system using

Composer software that resides on the PC. The PC

communicates to the System Controller using a Local

Area Network (TCP/IP). You need to use the Composer

software to define locations, devices, and the

programming interaction between the controllable

system devices on the Touch4 system.

When you arrive on-site, you need to establish a

network connection using your normal method, such as

WiFi (wireless) or Ethernet (Category 5 cable).

You need to place the System Controller at a location

where there is an Ethernet port available to the Local

Area Network, such as a direct connection to the

router, switch, or Ethernet port on the wall.

Software and hardware requirements for setting up a

Touch4 system include:

• System Controller hardware (included)

• PC Software and Hardware

• Composer Professional Software (sold

separately)

• Microsoft .NET 1.1 and Support Pack 1

(Installation automatically launched from

Composer Install either from CD or web.)

• Microsoft Windows XP and Service Pack 2

(Home or Professional)

• 500 Mhz processor or higher

•256 MB RAM

• 80 MB Hard Disk space

• Video card and monitor supporting resolution

of 1024x768 or higher

• Keyboard

•Mouse

• 1-2 Ethernet (Category 5) cables

• TCP/IP-based network (DSL/Cable Modem,

secure gateway, router, or switch)

• Internet Connection (broadband required)

• Wireless Access Point supporting 802.11 b or g

(optional - recommended)

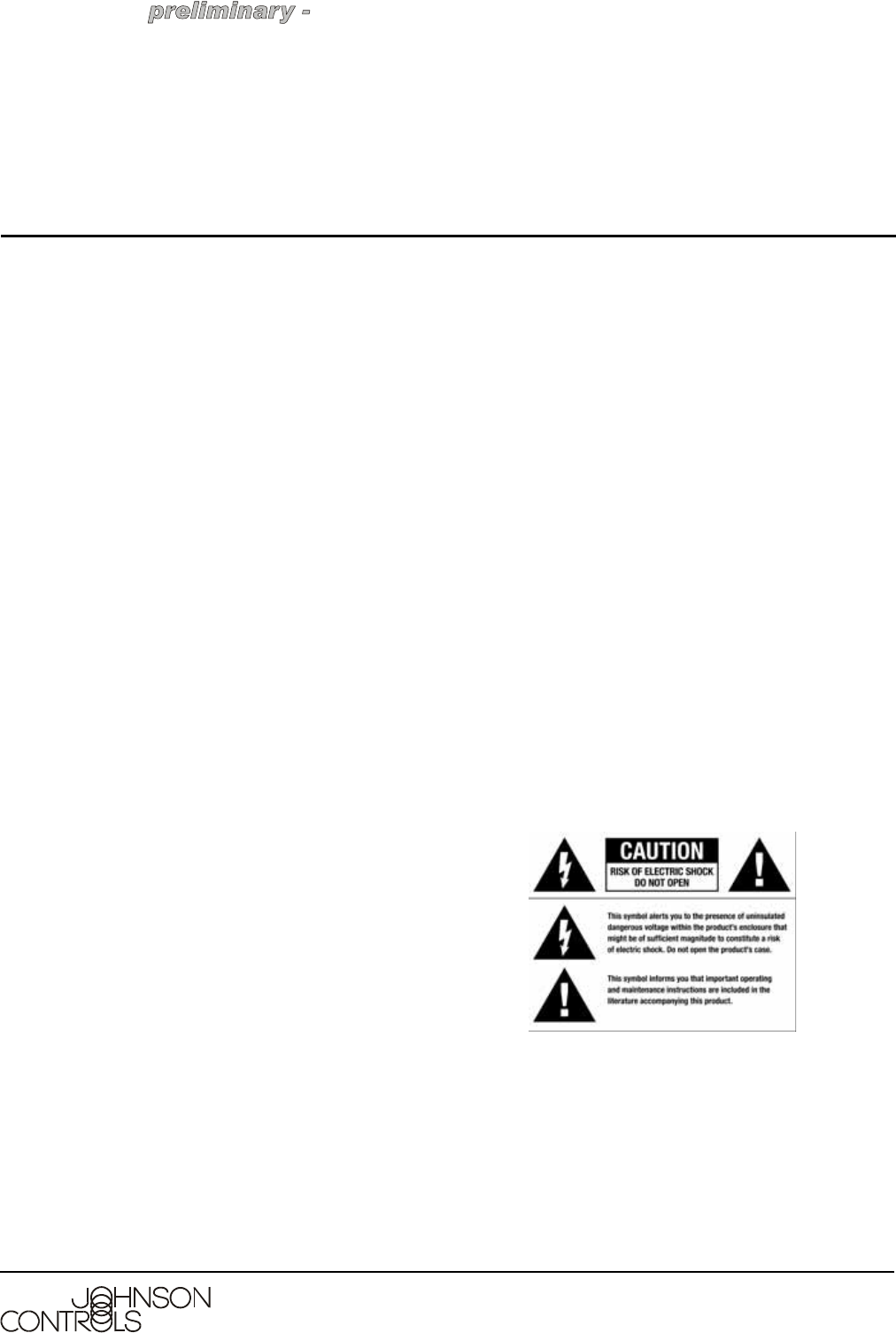

Graphical Symbols on the Device

The following information has been placed on the

device:

System Controller LC-AVMHTC1-0 (HTC)

Installation Guide

LC-AVMHTC1-0

Part No. 21-0250-JC, Rev. A

Release Draft 1

Issued November 13, 2006

Supersedes NA

Summary of content (9 pages)

PAGE 1
this information may change System Controller LC-AVMHTC1-0 (HTC) Installation Guide Part No. 21-0250-JC, Rev. A LC-AVMHTC1-0 Release Draft 1 Issued November 13, 2006 Supersedes NA Applications or Application Requirements • Microsoft .NET 1.1 and Support Pack 1 (Installation automatically launched from Composer Install either from CD or web.
PAGE 2
this information may change Graphical Symbols in this Guide The following symbols and their descriptions draw your attention to important safe practices and additional information that can help you avoid injury, death, or loss of material or time. ! ! WARNING: Risk of a potentially hazardous situation that, if not avoided, may result in death or serious injury. DO NOT IGNORE A WARNING! CAUTION: Risk of a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
PAGE 3
this information may change Important Safety Instructions 1. Read these instructions. This CLASS I apparatus must be connected to an AC mains socket outlet that has a protective earthing connection (i.e., third-prong ground conductor). DO NOT DEFEAT THE 2. Keep these instructions. PROTECTIVE EARTHING CONNECTION! 3. Heed all warnings. CE Declaration of Conformity 4. Follow all instructions. 5. Do not use this apparatus near water. DeClaration OF CONFORMITY 6. Clean only with dry cloth.
PAGE 4
this information may change Installation The installation of a fully functional Touch4 system includes the following steps: 1. Install Composer software on Personal Computer. 2. Design System and Create Groups and Users. 3. Set up Agents and Program using Composer. 4. Install and Configure Hardware. 5. Test Device Control using Navigation Devices. 6. Test System using Navigation Devices. This document outlines how to install hardware in this process.
PAGE 5
this information may change Connection Options and Typical Use Reserved for: BACnet/FLBus (1 set)—Pluggable terminal block connector for 1 BACnet/FLBus, such as a thermostat. See “Using BACnet/FLBus Port” for more information. 1. IR Out (6)—3.5 mm jacks for up to 6 IR output transmitters. See “Setting Up IR Emitters” for more information. 1. 2. 3. 4. 5.
PAGE 6
this information may change Note: USB Port: To make music saved to a USB drive available to the system, use the USB port on the back of the System Controller. The USB port is only for music storage use and USB updates. You cannot use it to connect the PC directly to the System Controller. Using BACnet/FLBus ports The System Controller provides one BACnet® Network port (labeled RS-485/FC-Bus as a subset of the pluggable terminal block provided).
PAGE 7
this information may change Setting Up IR Emitters Your system might contain products that are controlled with IR commands (usually through remote controls). Note: IR emitters sold separately in the “Media Package.” To provide a way for the System Controller to control a device that only recognizes IR commands, complete the following setup: 1. Plug the 3.5 mm connector end of one of the 6 IR stick-on emitters into an IR Out port on the System Controller. 2.
PAGE 8
this information may change • • Connections — Allows you to identify all connections (Room, Control, AV, Network). See Composer online help for more information. Media — Allows you to add and scan stored or broadcast media. See Composer online help for more information. • Agents — Allows you to set up agents for use on the system and programming. Agents include: lighting scenes, wake up, scheduler, variables, etc. See Composer online help for more information.
PAGE 9
this information may change System Controller LC-AVMHTC1-0 (HTC) Installation Guide 9
