Data Sheet

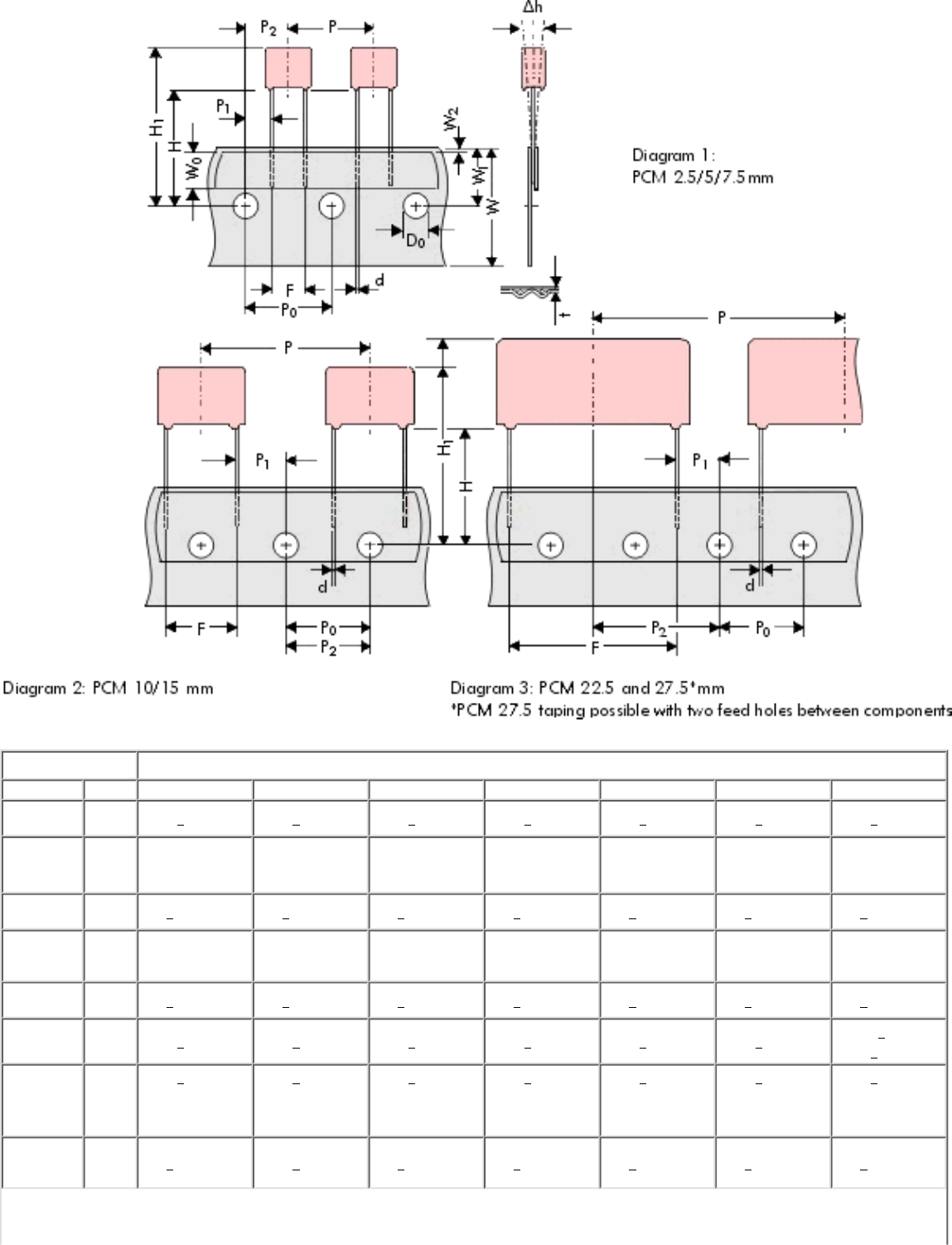

Typical dimensions for taping configuration
Dimensions for radial insertion
Designation Symbol
PCM 2.5 PCM 5 PCM 7.5 PCM 10** PCM 15** PCM 22.5 PCM 27.5
Carrier tape
width
W 18.0+0.5 18.0+0.5 18.0+0.5 18.0+0.5 18.0+0.5 18.0+0.5 18.0+0.5
Hold-down
tape width
W0
6.0 for hot-sealing
adhesive tape
6.0 for hot-sealing
adhesive tape
12.0 for
hot-sealing adhesive
tape
12.0 for
hot-sealing adhesive
tape
12.0 for
hot-sealing adhesive
tape
12.0 for
hot-sealing adhesive
tape
12.0 for
hot-sealing adhesive
tape
Hole
position
W1 9.0+0.5 9.0+0.5 9.0+0.5 9.0+0.5 9.0+0.5 9.0+0.5 9.0+0.5
Hold-down
tape
position
W2 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max 0.5 to 3.0 max. 0.5 to 3.0 max.
Feed hole
diameter
D0 4.0+0.2 4.0+0.2 4.0+0.2 4.0+0.2 4.0+0.2 4.0+0.2 4.0+0.2
Pitch of
component
P 12.7+1.0 12.7+1.0 12.7+1.0 25.4+1.0 25.4+1.0 38.1+1.5
*38.1+1.5 or
50.8+1.5
Feed hole
pitch
P0
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
12.7+0.3
cumulative pitch
error max.
1.0mm/20pitch
Feed hole
centre to
lead
P1 5.1+0.5 3.85+0.7 2.6+0.7 7.7+0.7 5.2+0.7 7.8+0.7 5.3+0.7
Taping
