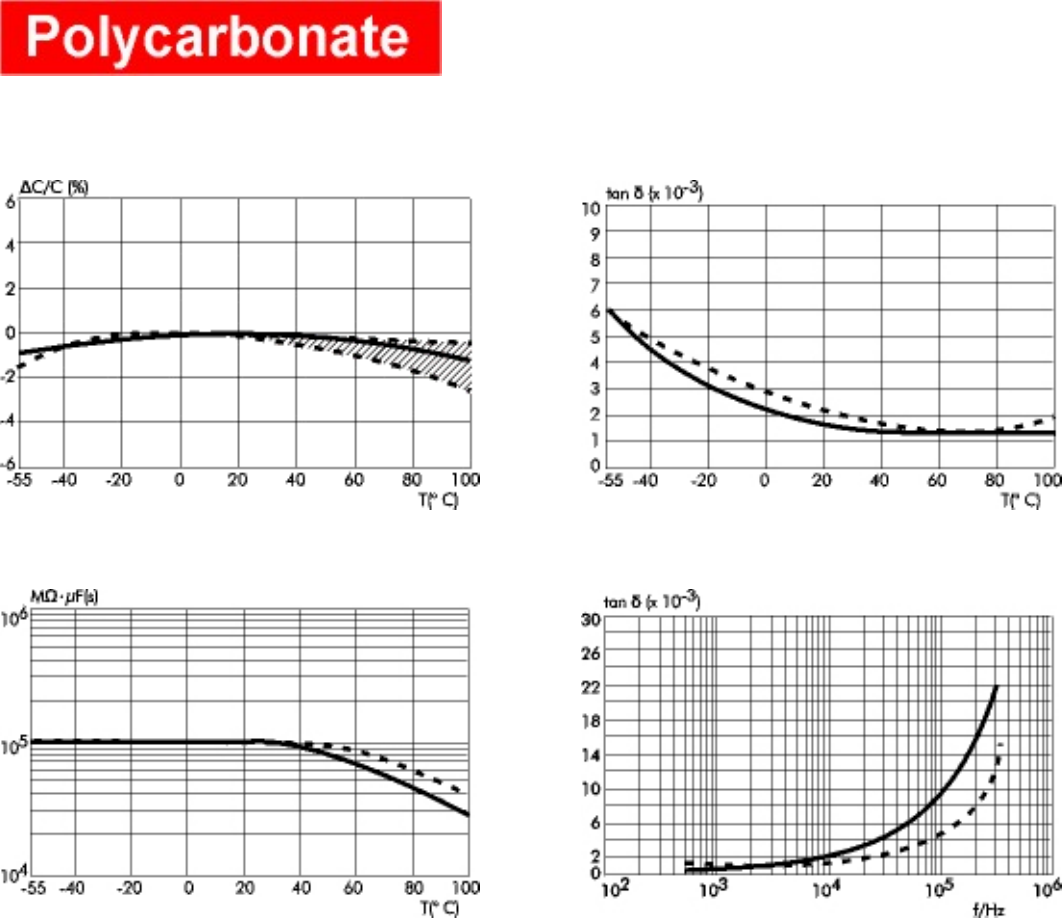

Typical graphs of the polycarbonate dielectric
Capacitance change with temperature
(f=1 kHz) (general guide)
Dissipation factor change with temperature
(f=1 kHz) (general guide)
Insulation resistance change with temperature
(general guide)
Dissipation factor change with frequency
(general guide)
Annotation:
The full lines characterize the metallized versions
The broken lines show the film/foil types
Polycarbonate
http://www.wima.de/polycarbonatkurven.htm [03.08.2000 07:20:25]
