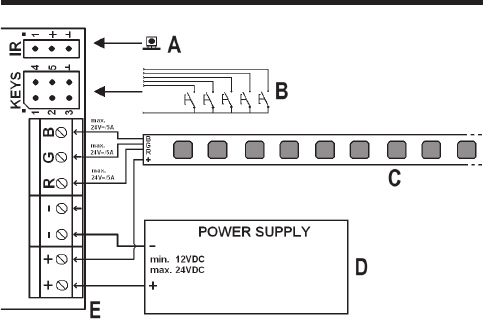

6. Connection Diagram
A IR receiver
B External keypad
C LED strip
D External mains power supply plug for the controller and the light strip (the mains power unit
must be able to supply sufficient power for three colour channels!).
E Controller
