Connect Tech Xtreme/104-Plus User’s Manual
Revision 0.04
9

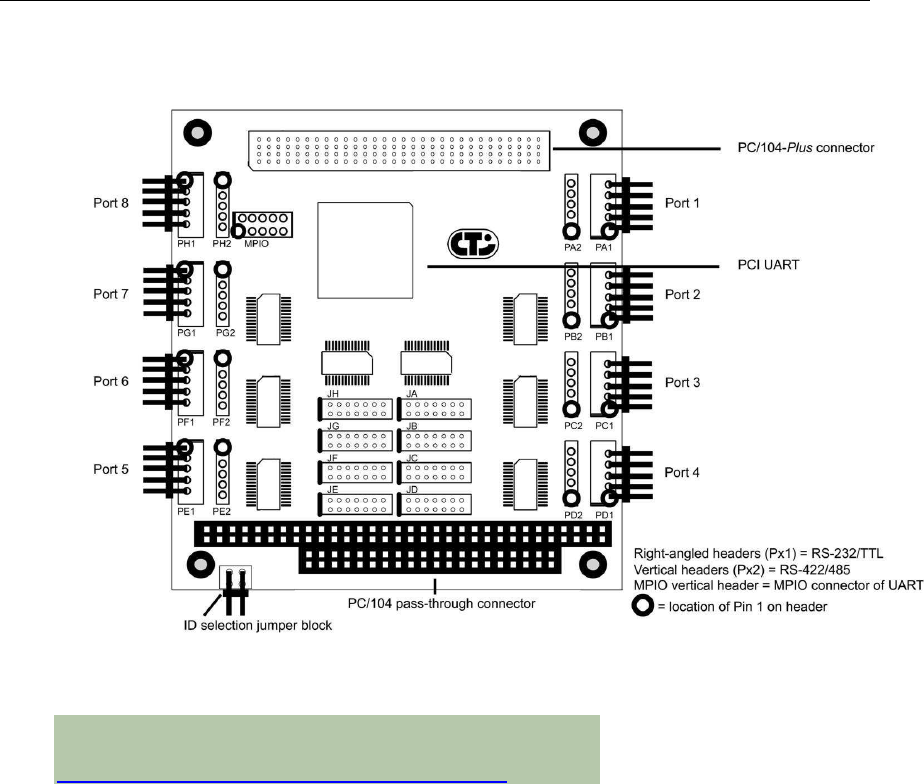

Figure 3: Xtreme/104-Plus RS-232/422/485/TTL Models
Note: Configuration information for the RS-232/422/485/TTL
model, including jumper settings and pinouts, is located in
Electrical Interfaces (RS-232/422/485/TTL models).
