User`s manual

Connect Tech Xtreme/104-Plus User’s Manual

Revision 0.04

Xtreme/104-Plus Opto

• Universal PC/104-Plus adapter

• PCI 2.0 and PC/104-Plus compliant

• 2 or 4 ports jumper selectable RS-232/422/485

• Supports full duplex, half duplex and multi-drop communication modes in RS-422/485

• Maximum data speeds of 921.6 Kbps (RS-232) and 1.8432 Mbps (RS-422/485)

• Operating temperature range of -40ºC to 85ºC, storage temperature of -40ºC to 185ºC

• Each port can be configured independently for baud rate, parity, data and stop bits

• High performance PCI UARTs

• 3kV of optical isolation

• PC/104 pass-through connectors installed for compatibility with legacy PC/104 cards

• Software support for Windows NT/CE/2000/Server 2003/XP/XPe/XPx64/Vista, Ardence

RTX for Windows QNX 4/6, Linux and SCO Unix/Openserver.

• Available signals

 RS-232: TxD, RxD, RTS, CTS and Signal Ground (SG)

 RS-422/485: TxD+/-, RxD+/-, RTS+/-, CTS+/- and Signal Return (SR)

• Multilayer PCB built with EMI reduction techniques

• Built with low power CMOS components

• PCI plug and play -- no jumpers to set for memory or interrupt configuration

Xtreme/104-Plus Diagrams

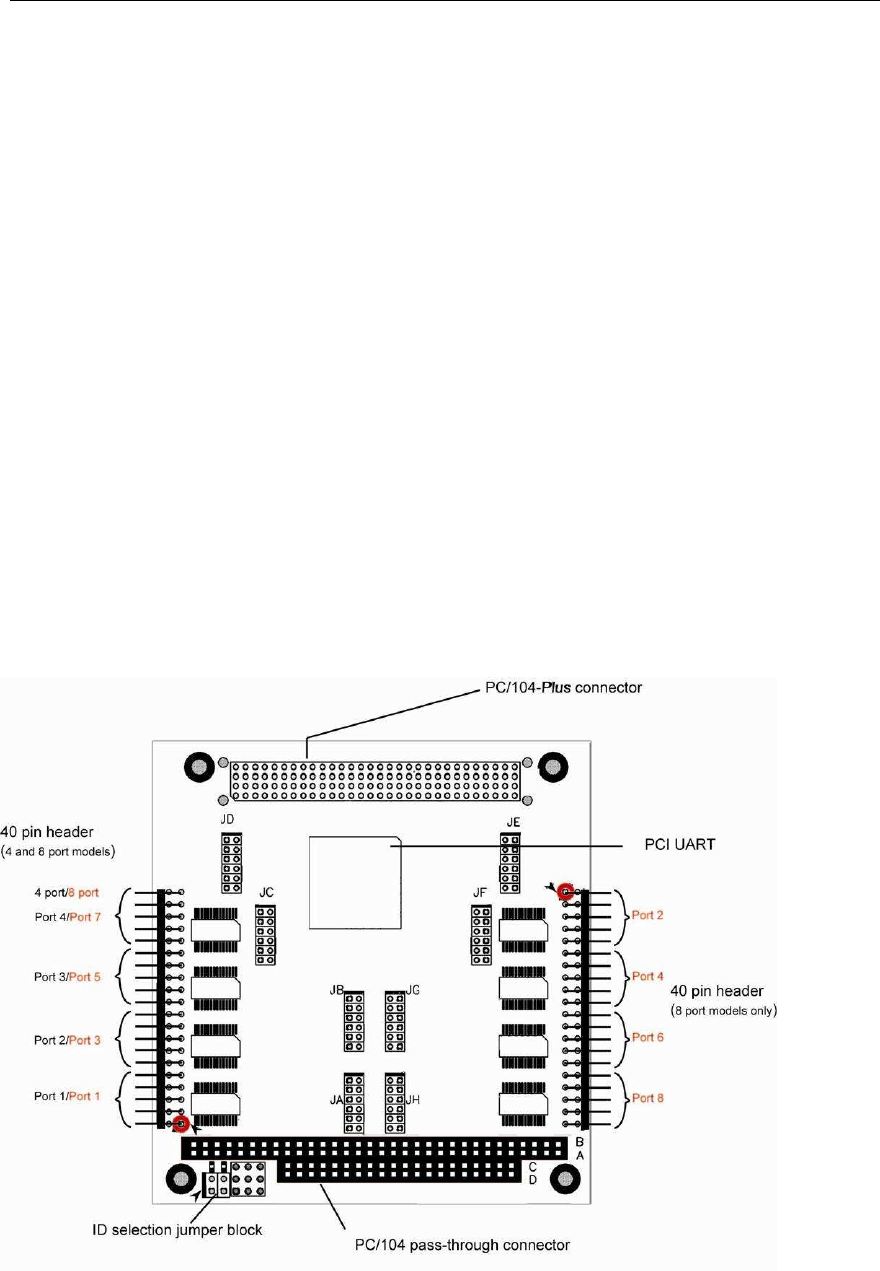

Figure 1: Xtreme/104-Plus RS-232/422/485 model hardware components
