Connect Tech BlueStorm/Express User Manual
Revision 0.02
9

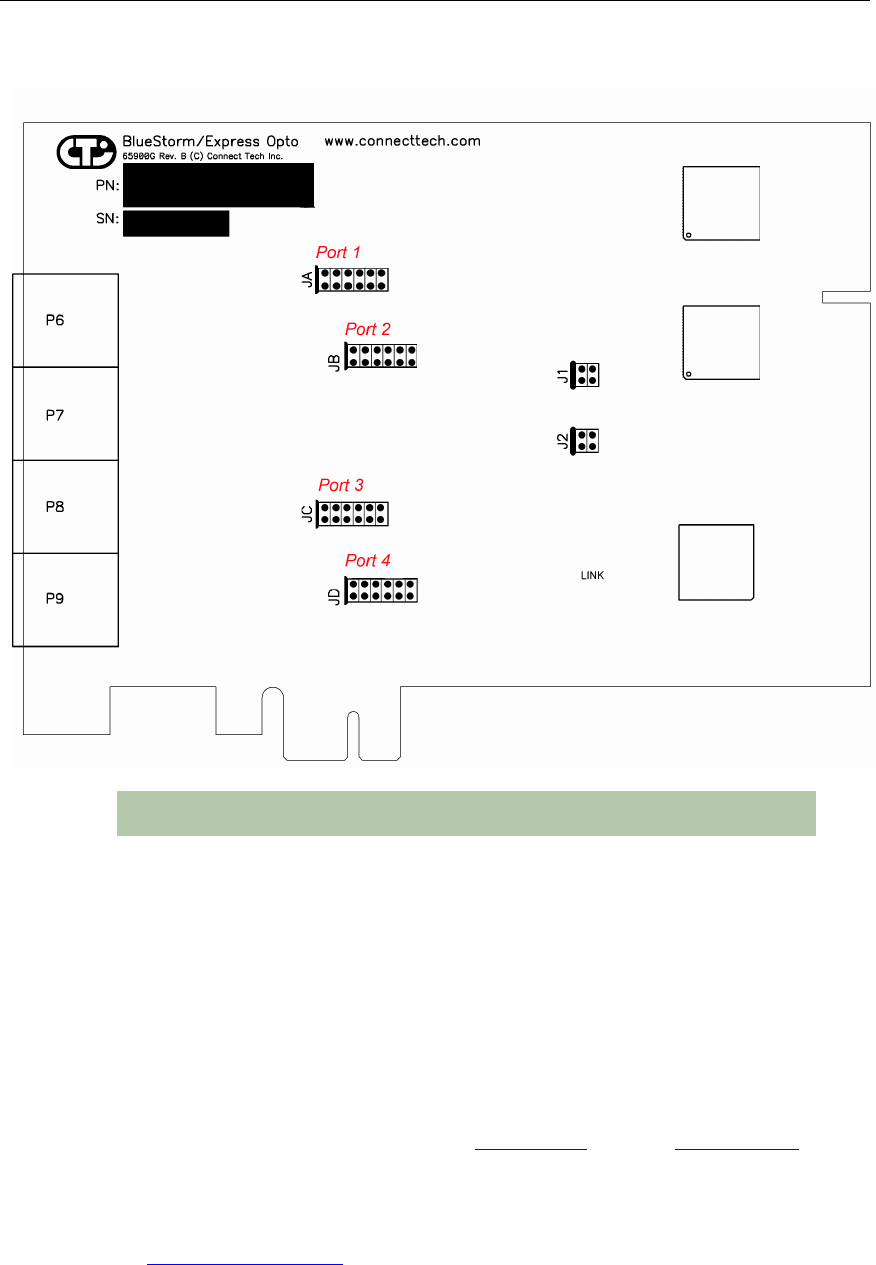

Figure 3: BlueStorm/Express Opto RS-232/422/485 four port model hardware components
Note: The above example is a four port BlueStorm/Express Opto model
installed with headers JA through JD.
BlueStorm/Express Installation Overview
Before you begin, take a moment to ensure your package includes the components that ship with
your product. These components should include:
One BlueStorm/Express adapter
One CD containing software and documentation
One DB-9 male fan-out cable or other custom cable assembly (optional).
If any of these components are missing, contact Connect Tech (see more Contact Details) or
your reseller.
There are three stages to installing your BlueStorm/Express:
1. Hardware Configuration
Interrupts and Memory selection will be set by the host computer’s BIOS and operating
system. This section outlines jumper settings and configuration.
