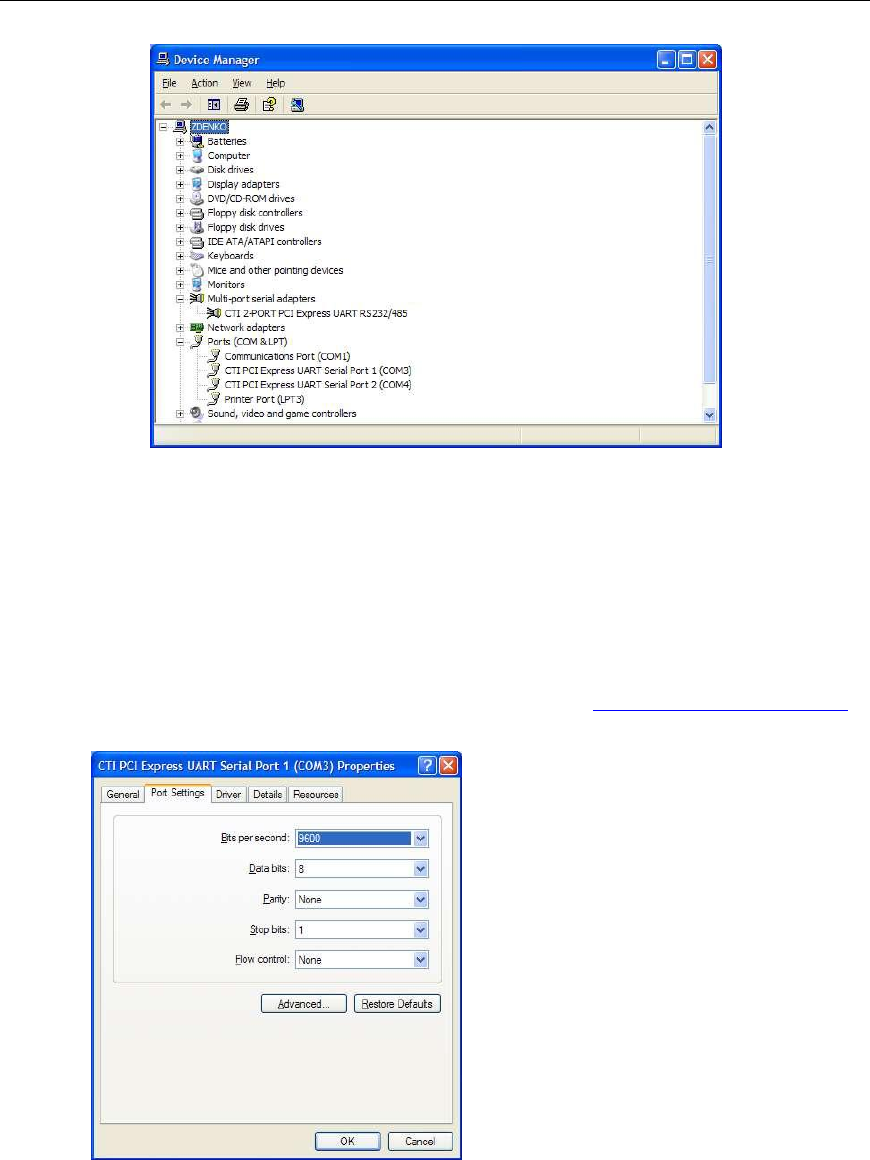

Verify the presence of BlueStorm/Express serial ports in your system by going to Start – Control
Panel – System – Hardware – Device Manager – Multi-port serial adapters. You should see CTI X-PORT
PCI Express UART RS232/485 listed.
Port Settings
You can now access individual port settings such as baud rate, data bits, parity, stop bits and
flow control by choosing the appropriate CTI PCI Express UART serial port under Ports in the
Device Manager. Clicking on Advanced while in Port Settings will access port settings for FIFO
buffers, Baud Rate Mapping, and RS-422/485 options (see the RS-422/485 Electrical Interface
section for more details.)
