ContaminationSensor CS 1000 Status Messages
HYDAC FILTER SYSTEMS GMBH
en(us)
Page 86/112
BeWa CS1000 3764916 300 en-us 2012-08-29.doc 2012-08-29

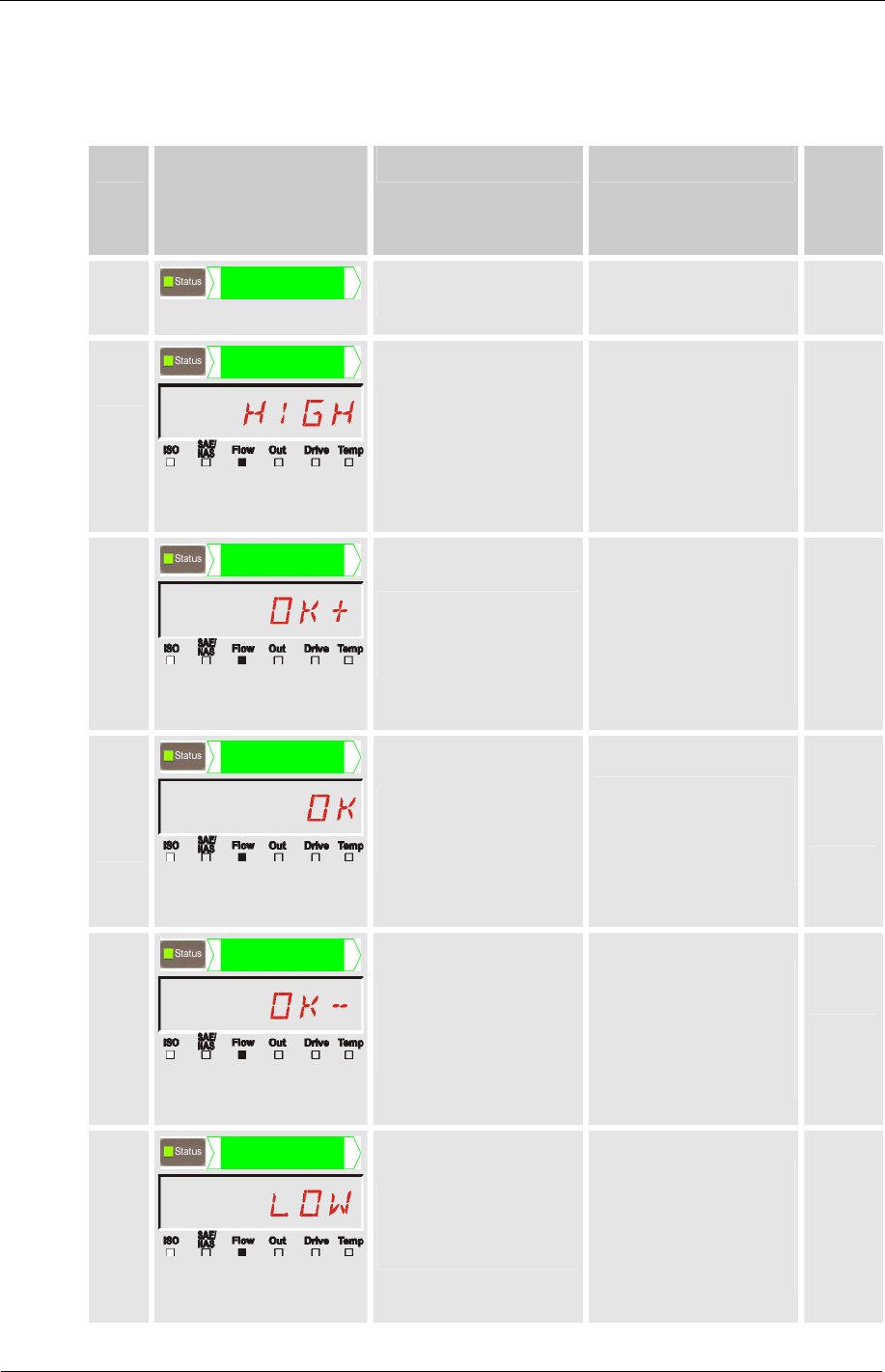

Status Messages
Status LED / Display
LED Blink code /
Display /
Analog output /
Switch out
Status To do
Error
no.
Gree
n
Conductive
CS o.k. ---
-
Gree
n
19,9 mA / 9,95 V*
Open
The flow rate has
reached the upper
limit.
Reduce the flow rate
to prevent the sensor
from going into the
CHECK error state.
-
Gree
n
19,9 mA / 9,95 V*
Open
The flow rate has
reached the upper
permissible range.
Check the flow rate
in short cycles.
The sensor is in the
upper permissible
flow rate range.
-
Gree
n
19,9 mA / 9,95 V*
Open
The flow rate is in the
middle permissible
range.
Do nothing. The
sensor is in the
middle flow rate
range.
-
Gree
n
19,9 mA / 9,95 V*
Open
The flow rate has
reached the lower
permissible range.
Check the flow rate
in short cycles.
The sensor is in the
lower permissible
flow rate range.
-
Gree
n
19,9 mA / 9,95 V*
Open
The flow rate has
reached the lower
limit.
Increase the flow
rate to prevent the
sensor from going
into the CHECK error
state.
-
