ContaminationSensor CS 1000 Setting the measuring mode
HYDAC FILTER SYSTEMS GMBH
en(us)
Page 29/112
BeWa CS1000 3764916 300 en-us 2012-08-29.doc 2012-08-29
Mode M4: Filter to continuously monitor cleanliness class
Application: Control of stationary offline filtration unit
Data output: Display & RS485 & analog output & switching output
Purpose: Establish continuous monitoring of cleanliness class between
min./max. limit values.
Function: Control of a filter unit, continuous measurement of solid
contamination.
If min./max. limit values are pre-programmed, the CS switches
the filtration unit on/off to maintain the cleanliness within the
limit value range.

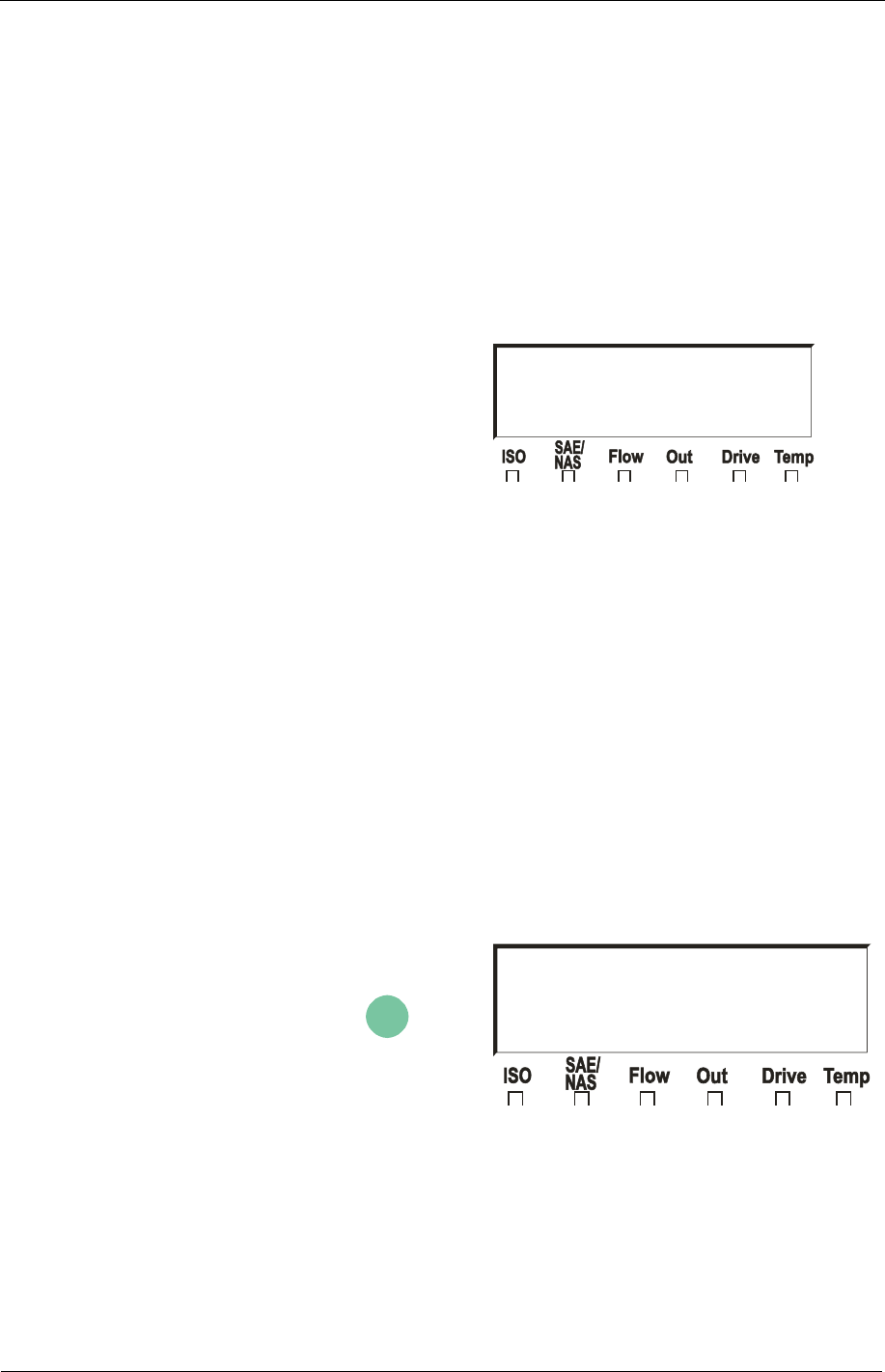

Once the target cleanliness has been
reached (5x undershooting of the
TARGET), the set test cycle time in
minutes appears on the display. The test
cycle time expires.
T 1
After the test cycle time has elapsed, the switching output is closed and a
measurement is started. If the result is still below the TARGET cleanliness, the test
cycle time (CYCLE) begins again.
Mode "SINGLE" measurement
Application: Stand-alone sensor
Data output: Display & RS485 & analog output
Purpose: Perform a single measurement and "stop" the result.
Function: Single measurement of solid contamination without switching
functions
When Single mode is selected in the PowerUp menu, the display jumps directly to
the following message after switching to the Measuring menu or after switching the
CS on:
The CS begins with individual
measurement after the message has
been confirmed by pressing
o.k.
.
START?
