Fastening / mounting the CS1000

Install the CS in such a way that the flow runs from bottom to top.

Use the one (lower) port as the INLET and the other (upper) port as the OUTLET.

When selecting the installation site, take ambient factors like the temperature, dust,

water, etc. into account.

The CS1000 is designed for IP67 according to DIN 40050 / EN 60529 / IEC 529 /

VDE 0470.

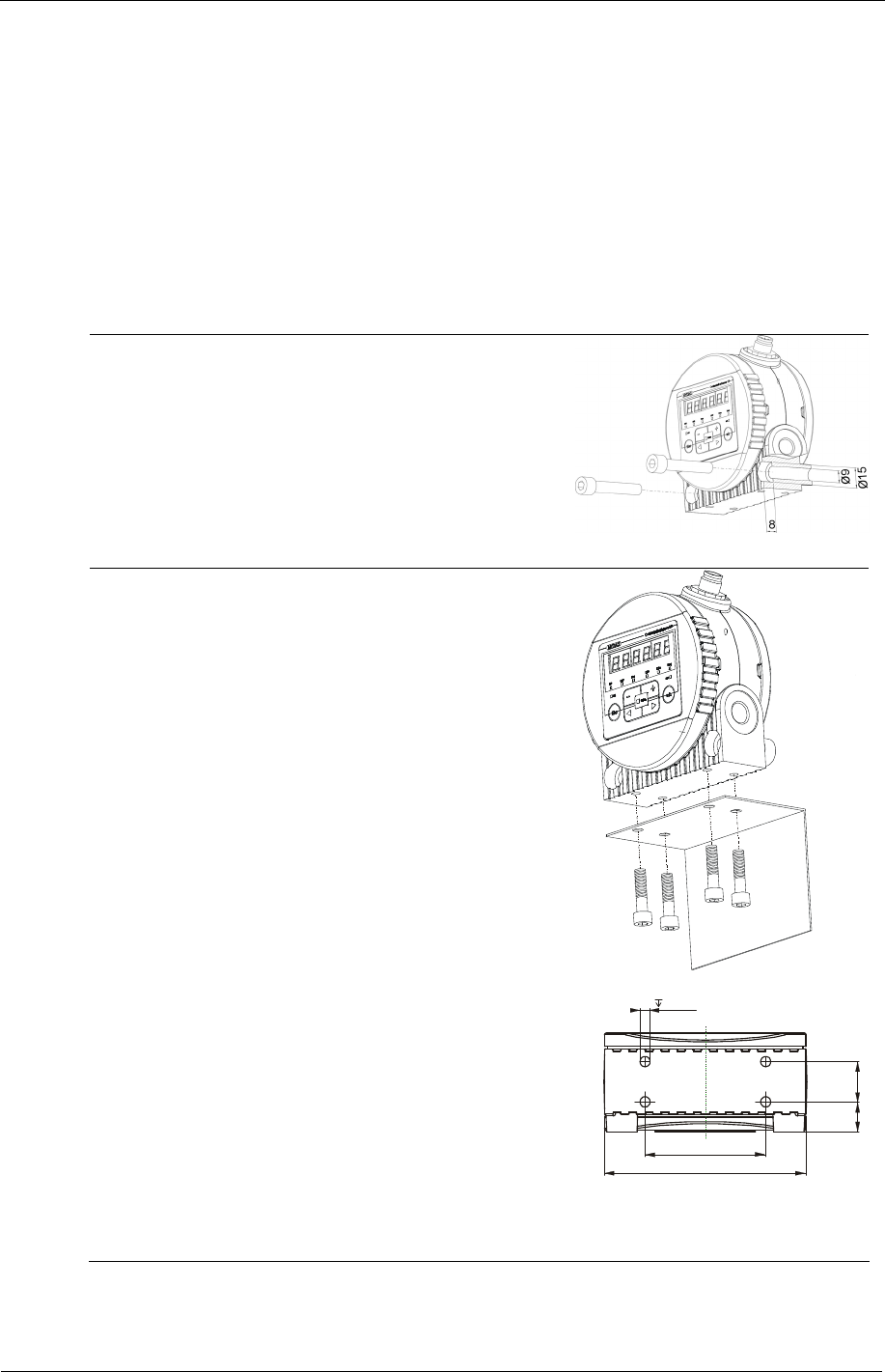

Mount the sensor as shown in the following examples:

Wall mounting:

Mount to a wall using two cylindrical screws

having an M8 hexagonal socket according to

ISO 4762 and having a length of at least

40 mm.

Console mounting:

Mount to a console using 4 cylindrical screws

having an M6 hexagonal socket according to

ISO 4762.

100

12/16

4xM

Bottom view

All dimensions in mm.
