ContaminationSensor CS 1000 Storing the CS
HYDAC FILTER SYSTEMS GMBH
en(us)
Page 14/112
BeWa CS1000 3764916 300 en-us 2012-08-29.doc 2012-08-29
Storing the CS
Store the CS in a clean, dry place, in the original packing, if possible. Do not remove
the packing until you are ready to install the unit.
Rinse the CS completely with Cleanoil before putting it into storage.
The solvents and flushing oils used must be handled and disposed of correctly.
Storage conditions
Storage temperature: -40 °C … 80 °C / -40 °F … + 176 °F
Relative humidity: maximum 95%, non-condensing

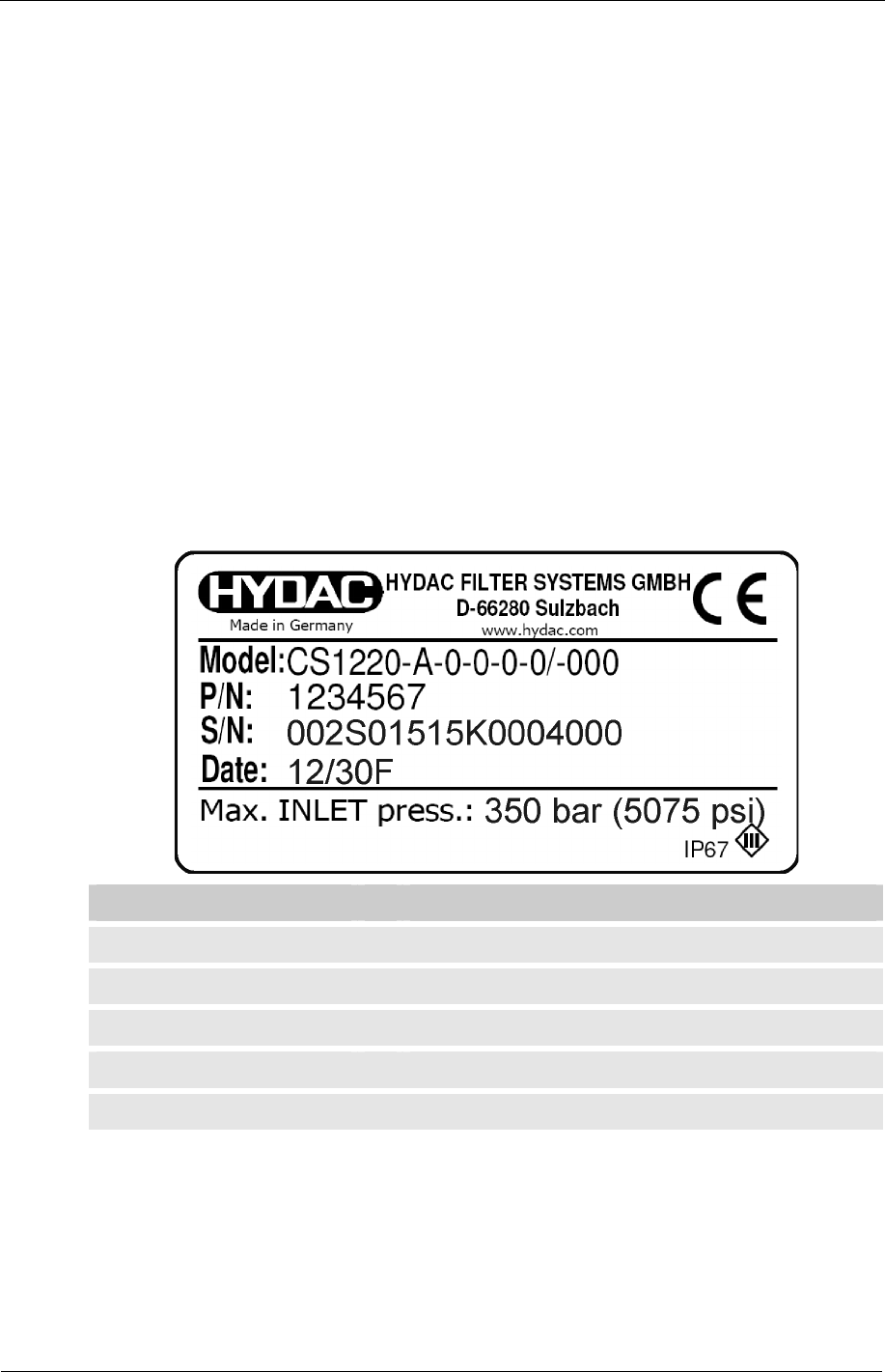

Decoding the model code label
For product identification details see the Model code label. This is located on the
back of the unit and contains the exact product description and the serial number.
Row -> Description
Model -> Model code; for details, see page 106
P/N -> Part no.
S/N -> Serial no.
Date -> Year/week of production and hardware index
Max. INLET press.: -> Maximum operating pressure
