Connect One
Electrical Specifications
7 On-Board
Antenna
Designed f
or 2.4Ghz oper
atio
n
Peak Gain:
2.1 dBi
Average efficiency
:
75%
Max return loss:
-11dBi
Max VSWR:
1.
8:1

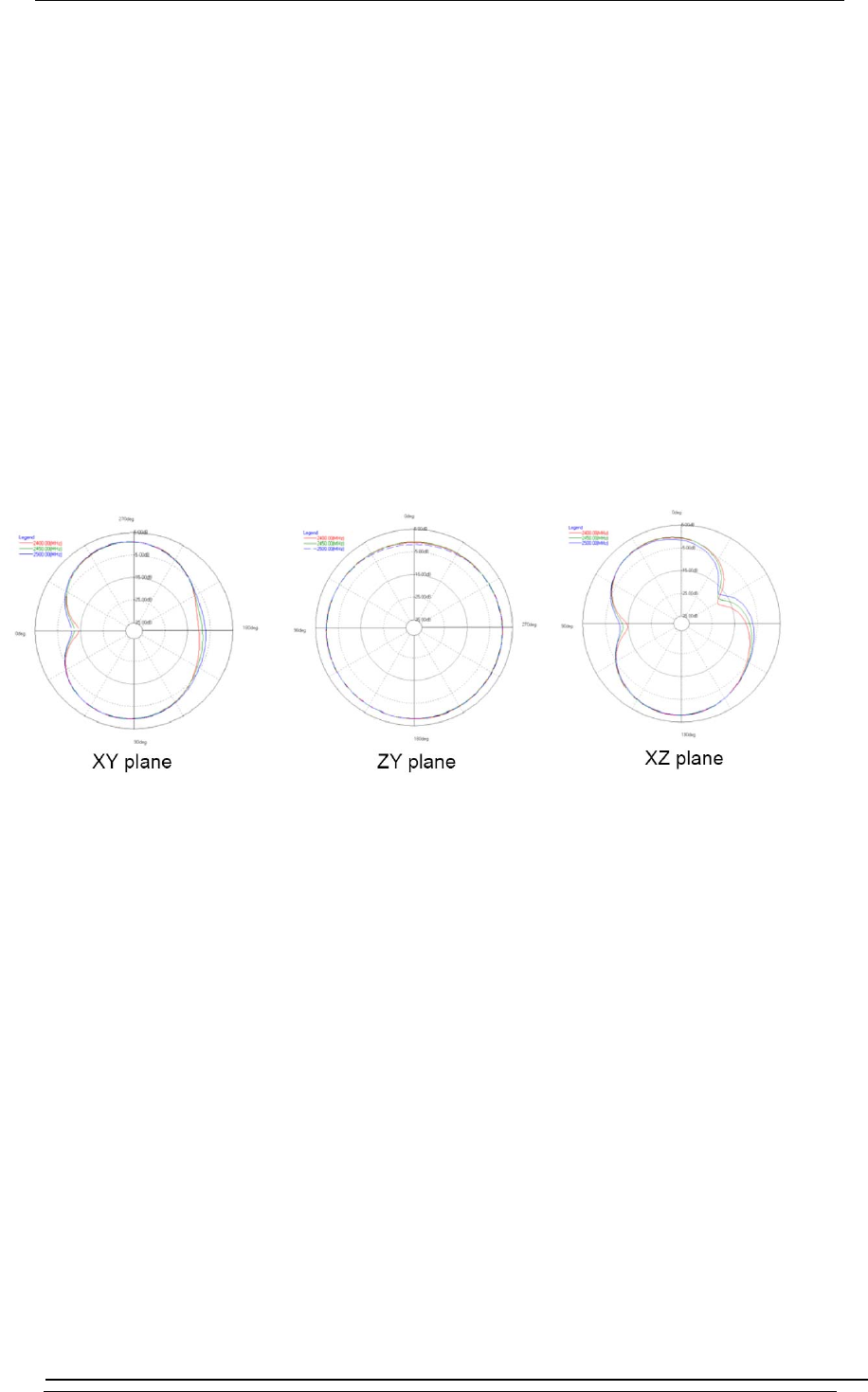

Antenna Patt
erns:
WiReach BK Data Sheet
