Specifications

50

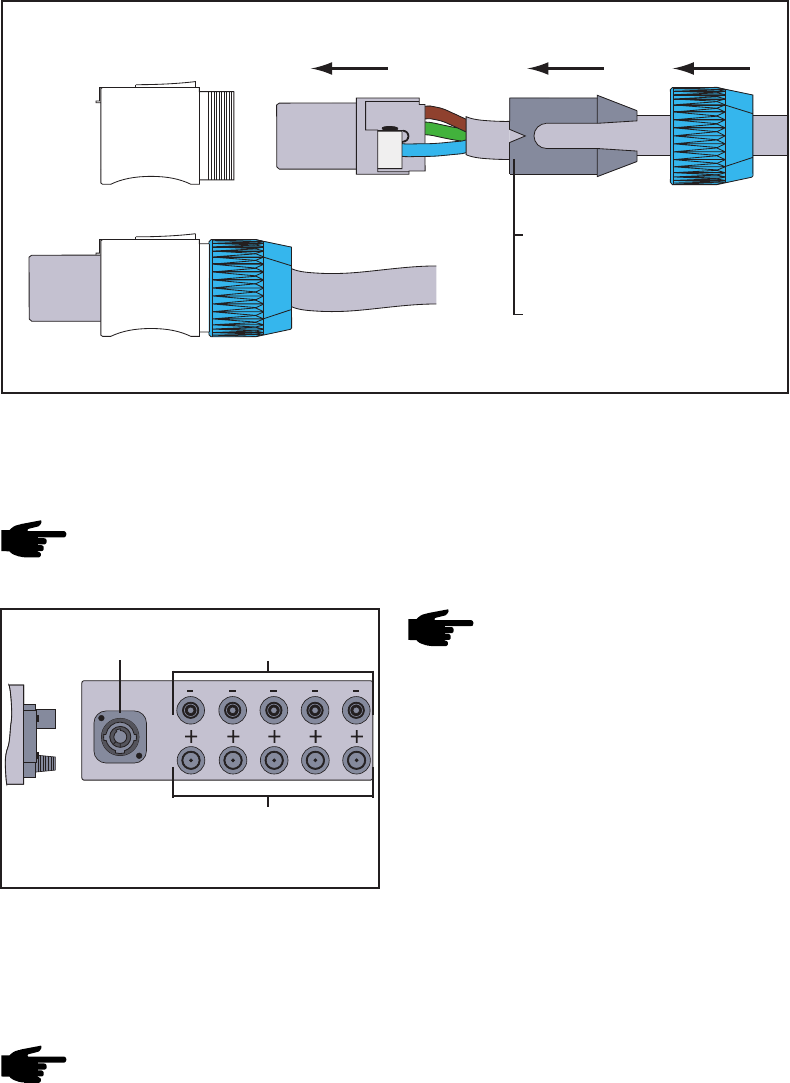

- assemble AC plug
- connect AC plug to Conergy WR unit and latch
Note! Always shut off voltage before unplugging the AC connec-
tion by disconnecting fuse in the house distribution cabinet.
3. DC plug
and AC
connection
(continued)
- install DC connections on the plus and minus pole of the strings on the
solar modules
- plug the strings on to the Conergy WR unit
Note! Never disconnect the DC connections of the Conergy WR
unit from the sockets when it is in operation of feeding power
supply. Before disconnecting the strings, always first disconnect
fuse in the house distributor panel.
Failing to comply with this instruction may damage the plug connections.
Should an electric arc develop during unplugging, both plug and socket
must be replaced. Never re-use damaged DC connections.
Note! When installing DC
connections for solar modu-
les make sure that the plus
and minus poles correspond
with the respective symbols.
DC plugs +
Connector rail with 5 pairs of DC plugs
DC sockets -AC-plug
Illustration also applicable for connector rail
with 1 - 5 DC plug pairs
(1) (2) (3)
white: for main cable with
5 to 11 mm diameter
black: for main cable with
9,5 to 15 mm diameter
