Specifications

45
26 mm

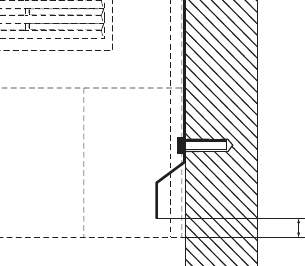

Important! Should a cable channel
be located below the Conergy WR
unit, the following must be obser-
ved:
- lower edge of Conergy WR unit
will be located exactly 26 mm
beneath the wall mounting frame
Fixing the wall
mounting
frame
(continued)
The housing is designed for a cable channel of up to 50 mm height which
can be located directly below the connection area, without
- cables visible below the Conergy WR unit
- impairing access to the connection area and the slot- in board area
