- „IG-NR“ ...Setting the number
(=address) of the Conergy WR
unit in a setup comprising more
than one photovoltaic inverter
linked with each other

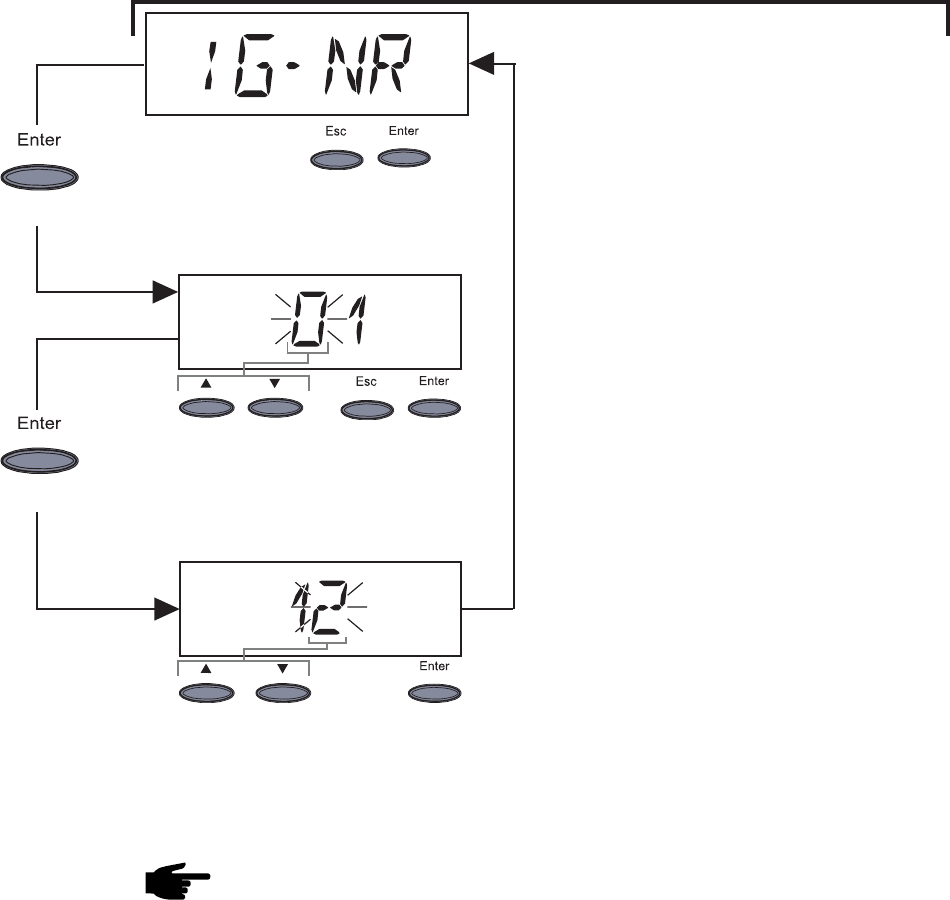

- enter „IG-NR“ by pressing the key
„Enter“ (D)
(D)
(B)
enter address (01 ... 99)
(factory setting: 01)
- first digit starts flashing
- select a figure for the first digit by
pressing key (A) or (B)
- confirm with key „Enter“ (D)
- subsequent digit starts flashing
(A)
(B) (D)(A)
- for second digit follow procedure
as described above for first digit
- accept the IG-No. selected: press key „Enter“ (D)
- maintain previous setting: press key „Esc“ (C)
Note! Allocate an own address to each Conergy WR when con-
necting several Conergy WR into a data communication network
using data recorders.
It is important to give each Conergy WR an own address, so that the data
recorder can differentiate between the individual static inverters. If two
Conergy WR are in the system with the same address, they cannot com-
municate with the data recorder. Set another address on the Conergy
WR showing the status-message 504.
Important! Version without display: You will find the relevant information
for address setting in the operating manual chapter entitled „Installation“
in the section „Version without Display: Set address“.
