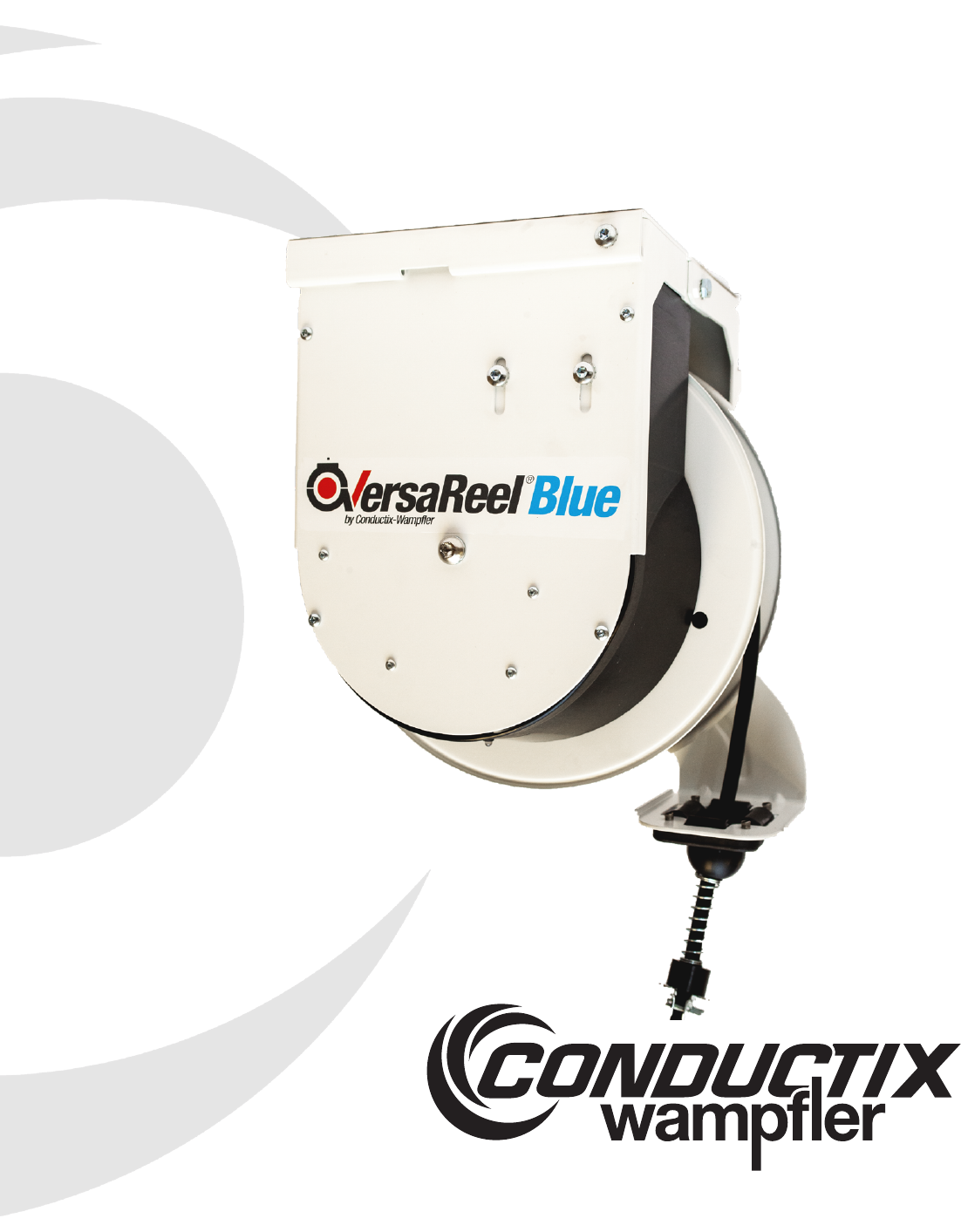

VERSAREEL BLUE USER MODULE MANUAL

XA-587112 | 11.13.19

www.conductix.us

VersaReel

Blue

User Module Manual

Summary of content (16 pages)

PAGE 1
VersaReel® Blue User Module Manual XA-587112 | 11.13.
PAGE 2
CONDUCTIX INCORPORATED The technical data and images which appear in this manual are for informational purposes only. NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE CREATED BY THE DESCRIPTIONS AND DEPICTIONS OF THE PRODUCTS SHOWN IN THIS MANUAL.
PAGE 3
TABLE OF CONTENTS SECTION 1 - GETTING STARTED 4 Quick Guide App Download Device Safety Features 4 4 5 SECTION 2 - MOBILE APP INITIAL SETUP 6 Scan Screen Info Screen Scan Screen Device List Device Control 6 6 7 7 8 SECTION 3 - MOBILE APP USER CONFIGURATION 9 Default Pin Code Screen Ready To Use Screen Default Master Password Screen Change Master Password Screen Change Device Pincode Screen Change Device Name 9 9 10 11 11 12 SECTION 4 - TROUBLESHOOTING APP 13 Incorrect Password
PAGE 4
SECTION 1 - GETTING STARTED Quick Guide • The VersaReel Blue is able to connect to all Bluetooth-enabled Apple and Android devices. • Optimal range to use the VersaReel Blue is up to 100 feet. • As a safety feature, Bluetooth connection from the app to the reel will terminate when the screen is locked, or goes into sleep mode. The user will need to reconnect the app to the reel at this point. App Download 1.
PAGE 5
SECTION 1 - GETTING STARTED Device Safety Features • If the user taps the Up or Down buttons more than three times consecutively within 0.5 seconds of each other, all reel function stops and a warning appears. The user must press “Got It” to continue. • Holding the Up or Down buttons for 25 seconds, regardless of the reel speed, will cause all motor operation to stop. Figure 6-1: App download screen (Apple OS) Figure 6-2: App download screen (Android OS) 5 XA-587112 | 11.13.
PAGE 6
SECTION 2 - MOBILE APP INITIAL SETUP Scan Screen Info Screen 1 When the Scan screen comes up, press the Info button to display required user information. The Info screen provides the most current version for the app; a downloadable PDF of the user manual; FAQs; the default pincode; and the default password. Callouts: 1) Link to the user manual 6 VERSAREEL BLUE MANUAL XA-587112 | 11.13.
PAGE 7
SECTION 2 - MOBILE APP INITIAL SETUP Scan Screen Device List 3 1 2 4 When the Scan screen comes up, press Scan button to display a list of available devices to connect to. The Scan screen shows the individual devices to interact with. When user presses the Hold To Detect Device button, the reel’s light indicator turns red to show which reel the signal is being transmitted to. Green on the light indicator shows an available reel.
PAGE 8
SECTION 2 - MOBILE APP INITIAL SETUP Device Control 1 2 Once a device is paired, the main Device Control screen comes up. Callouts: 1) Retract; 2) Pay out 8 VERSAREEL BLUE MANUAL XA-587112 | 11.13.
PAGE 9
SECTION 3 - MOBILE APP USER CONFIGURATION Default Pin Code Screen Ready To Use Screen The first time the Up/Down buttons are pressed, a Pairing Requests prompts user to enter pincode. Enter 123456 (pin code can be changed in the Setting screen). NOTE At the Ready To Use screen, changes to the reel’s pincode, name, and password are done by pressing the Setting tab. Users are encouraged to change the default password following the initial setup.
PAGE 10
SECTION 3 - MOBILE APP USER CONFIGURATION Default Master Password Screen After selecting Setting, a prompt asks for the default master password. Enter password. The master password allows user to change the reel’s pincode, name, and password. Users are encouraged to change the default password following the initial setup. 10 VERSAREEL BLUE MANUAL XA-587112 | 11.13.
PAGE 11
SECTION 3 - MOBILE APP USER CONFIGURATION Change Device Pincode Screen Change Master Password Screen Master (or User) Password is required to access the Settings Panel. Choose the Change Master Password option to expand the form. Toggle Show Password to help verify the input is correct. The Device Pin code is used to access the reel’s main controls. The pin code must be a 6-digit number. If there are issues after the pin code is changed, please refer to the Troubleshooting section.
PAGE 12
SECTION 3 - MOBILE APP USER CONFIGURATION Change Device Name Select to open Change Device Name form. Enter the device’s new name here. After tapping Confirm, this is the name that will display once the reel is reconnected. 12 VERSAREEL BLUE MANUAL XA-587112 | 11.13.
PAGE 13
SECTION 4 - TROUBLESHOOTING APP Forgot User Password 1. Power down the reel and wait until the power indicator light goes off. 2. Open the cover. Jumper should be on FR2. 3. Put the jumper to FR1 and FR2 . 4. Power up the board. 5. Verify the password has been reset to the default password. 6. Replace the cover. 7. See Section 8 on resetting the password. NOTE An interruption in power to the reel does not cause the current password to reset back to the default password.
PAGE 14
SECTION 4 - TROUBLESHOOTING APP For Android: Pull down the top screen, and then press and hold the Bluetooth icon. Tap the gear icon next to the VersaReel Blue. Under the Paired Device screen, tap Unpair and this will erase the device memory of the phone. The next time you control a reel, you will have to input in a new pin code that you have assigned. Unable to connect to reel Disconnect Bluetooth from the phone’s Settings screen. Turn off, leave off for 5 seconds, then turn Bluetooth back on.
PAGE 15
SECTION 4 - TROUBLESHOOTING APP Reel Damage Warning Screen Incorrect Password Screen An incorrect password will trigger an error message at the top of the screen. If user has forgotten password, refer to Forgot User Password at the beginning of this section. At this point, the reel is set up and ready to use. If the user presses either button more than 3 times (at least 0.5 seconds each time), a reel damage warning appears. The user must press Got It! to continue using the reel. 15 XA-587112 | 11.13.
