5. Connecting the Media Titan

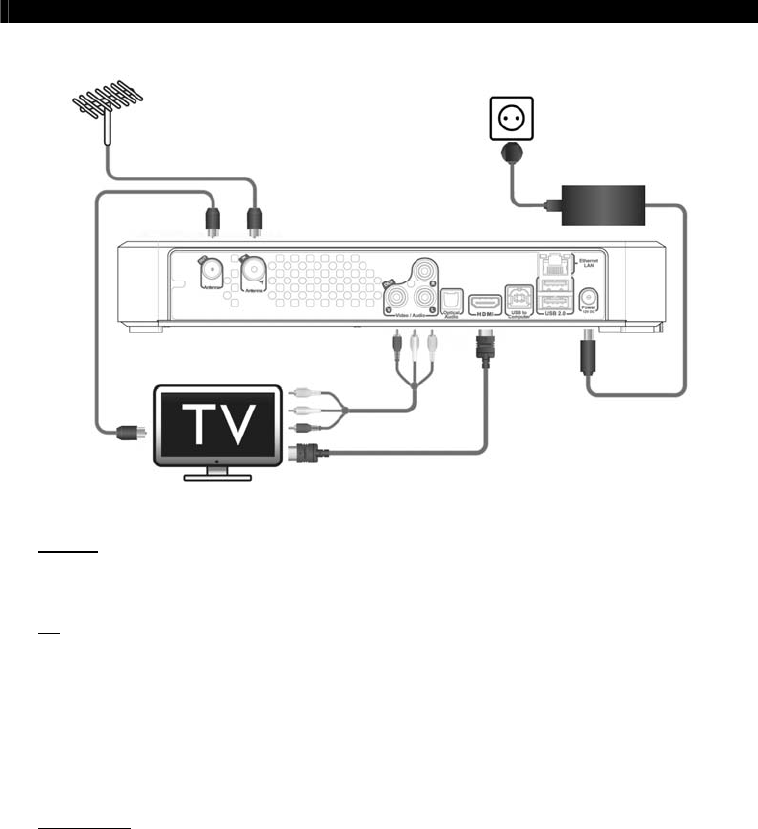

5.1 Basic Media Titan connection
In order to use the Media Titan, you need to connect it to your TV and DVB-T antenna.
Antenna:
- Connect your DVB-T antenna to the ‘Antenna in’ [6] of the Media Titan.
- In case your TV is equipped with a DVB-T tuner, connect a RF antenna cable to the ‘Antenna out’ [5]
of the Media Titan and to the Antenna in of your TV.
TV:
You can connect the Media Titan to your TV by HDMI or composite. In order to experience HD quality, you
need to use the HDMI output of the Media Titan.
- Connect the HDMI cable to the ‘HDMI output’ [11] of the Media Titan and to the HDMI input of your
TV.
When your TV is not equipped with HDMI, you can use the composite output of the Media Titan.
- Connect the composite cable to the ‘Composite video output’ [8] and the ‘Stereo audio output’ [9]
of the Media Titan and to the composite input of your TV.
Power supply:
When the Media Titan is connected to your antenna and your TV, you can connect the power supply.
- Connect the power cable to the power supply and to a free wall outlet.
- Connect the power supply to the ‘DC input’ [14] of the Media Titan.
The Media Titan will automatically startup.
