VCP701
Colour Mono Zoom Camera
Fax: [phone] Email: [e-mail] Web: www.videcon.co.uk
6
Cameras -
1/4" Colour Mono Body Camera c/w Zoom Lens
Introducing the Concept Pro VCP701 featuring 30 x optical and 10 x digital zoom lens.
Amongst a host of features and functions, the camera comes complete with an on-screen display
menu and RS-485 controller interface, enabling the unit to be integrated with a variety of control
equipment including standard telemetry keyboards and PTZ enabled DVRs.
n CCD 1/4”
n Resolution Colour 480 Lines
n Sensitivity Colour 1 Lux
n Sensitivity Mono 0.5 Lux
n Sensitivity DSS Colour 0.005 Lux
n Sensitivity DSS Mono 0.001 Lux
n Lens Size 3.3-99mm
n Optical Zoom 30x
n Voltage 12V DC
n Power Comsumption 380mA / 4.56W (Max)
n Dimensions (WxHxD) 65x62x122mm
n Weight Approx. 330g
Other Features
n True Colour Mono (ICR)
n Auto White Balance
n Auto Gain Control
n Back Light Compensation
n On Screen Display
n 10x Digital Zoom
n Auto Iris
n Auto Focus
n Flickerless
n RS-485 Inter
face
n 5 YEAR WARRANTY
VXM4B
(see page 39-42)
VHSD-870EXT / VHSD-970EXT
(see page 31)
VA-KBDPRO+
(see page 32)
VHSD-810EXT
(see page 30)
VCP451
(see page 5)
VCP701/IRH
(see page 11)

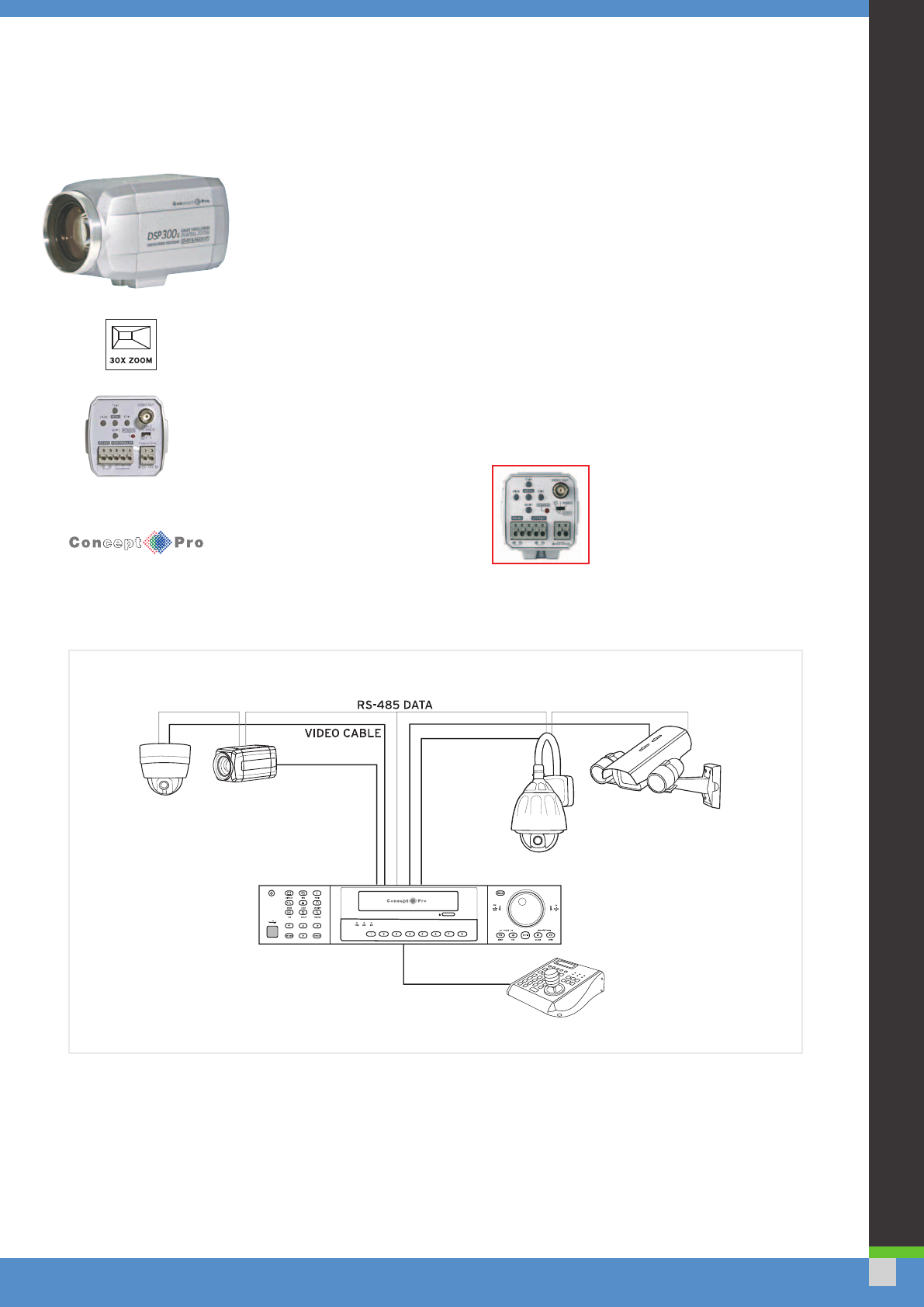

RS485 CONTROL DIAGRAM
Dat
a tr
ansmission between items of CCTV control equipment is often carried over twisted-pair cable. This includes data from
control keyboards to a central processor or video switching matrix as well as the data from a controller to a telemetry receiver
at a functional camera. RS485 is a common data transmission standard employed.
RS485 uses signals of about 5 volts in amplitude and are differential which means that only the difference in voltage between
the two cables of the twisted-pair is taken into account. If both of the two wires are interfered with by the same amount then
this is automatically ignored. This makes RS485 very good at getting data a long way with very few errors in noisy environments
The maximum cable dis
t
ance along which signals will pass reliably is 1200m. This is dependent upon using the correct grade of
cable. Belden 9841 is one such cable, of which there are many.
VCP701UTP
n T
elemetry, power and video can all
be carried on a single CA
T5 cable run
n Reduced cabling cost
n Less susceptible to interfer
ence
n 12V DC
n 500mA / 6W (Max)
n 65x62x140mm
n Approx. 375g
OPTION
