User Manual

26
CATC MERLIN’S WAND 1.22 CHAPTER 3
User’s Manual Bluetooth Wizard
The Speaker and Microphone Volume levels can be adjusted by moving
the sliders up or down. The level is indicated by a number, from 0 to 15,
to the left of each slider.
Note If you cannot establish a connection, you can re-attempt the connection by either
pressing Back and re-running the previous two steps, or by pressing the Connect
button again.
Step 8 To verify that Merlin's Wand and the Bluetooth device are
successfully connected, speak into the microphone on one
device and listen for audio on the other.
At this point, the audio signal should transfer to the headset. Listen to the
headset to see if the data transfer is successful.

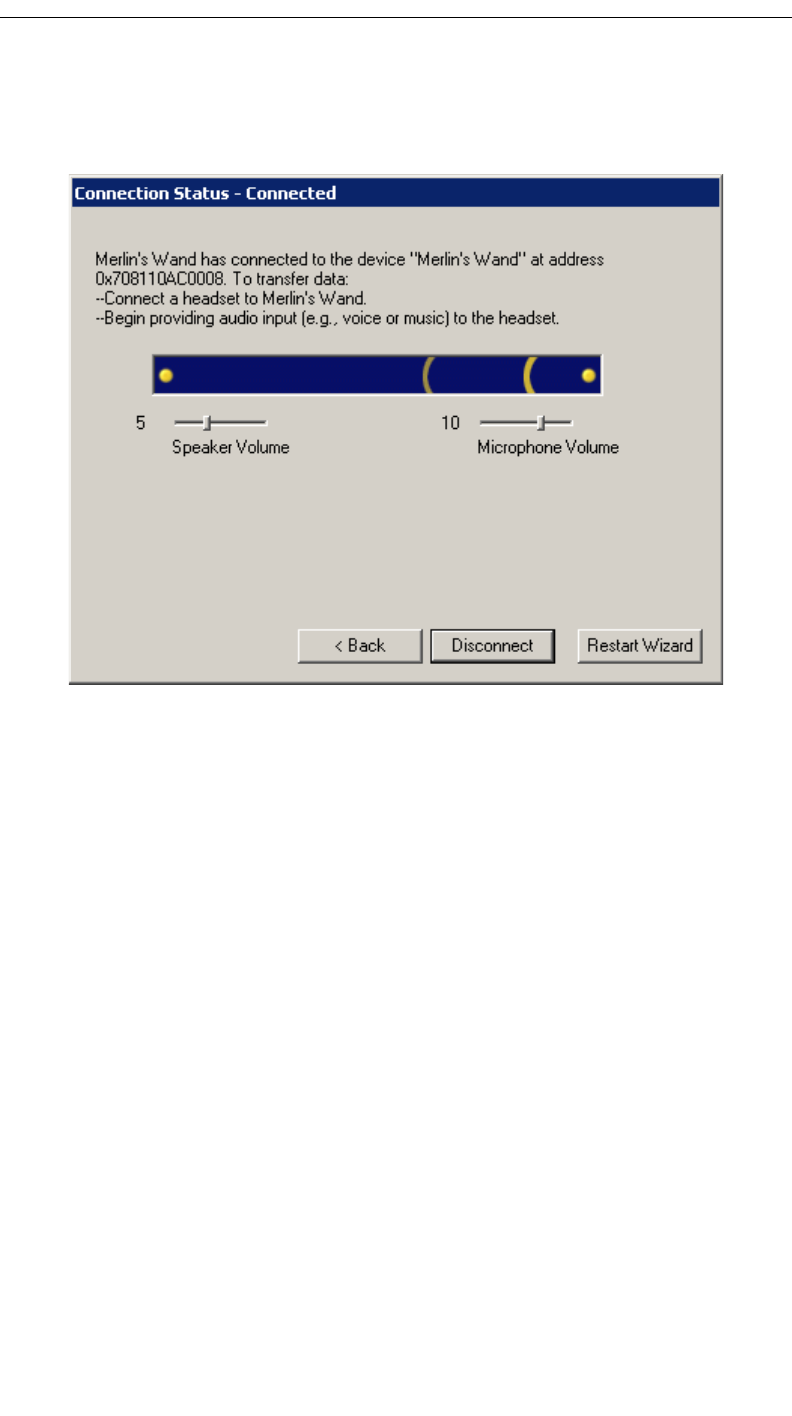

Step 9 (Optional) Click the Disconnect button on the Connection
Status screen to close the connection.
The connection between Merlin's Wand and the device will terminate,
and the Connect button will again be available. Selecting Connect will
reestablish the connection.
