CATC MERLIN’S WAND 1.22 CHAPTER 2
User’s Manual Getting Started
Note: When switching between Bluetooth Wizard, Command Generator
and Script Manager, all connections that have been established
between Merlin’s Wand and another Bluetooth device should be
closed. However, expert users may choose to leave the connections
open. If a connection is left open and you attempt to switch tools,
Merlin’s Wand will prompt you to close the connections. Choosing
Disconnect All will close the connections. Choosing Cancel will
leave the connections open, but some commands might not work
properly in the other tool. When switching to Bluetooth Wizard, any
open connections must be closed.

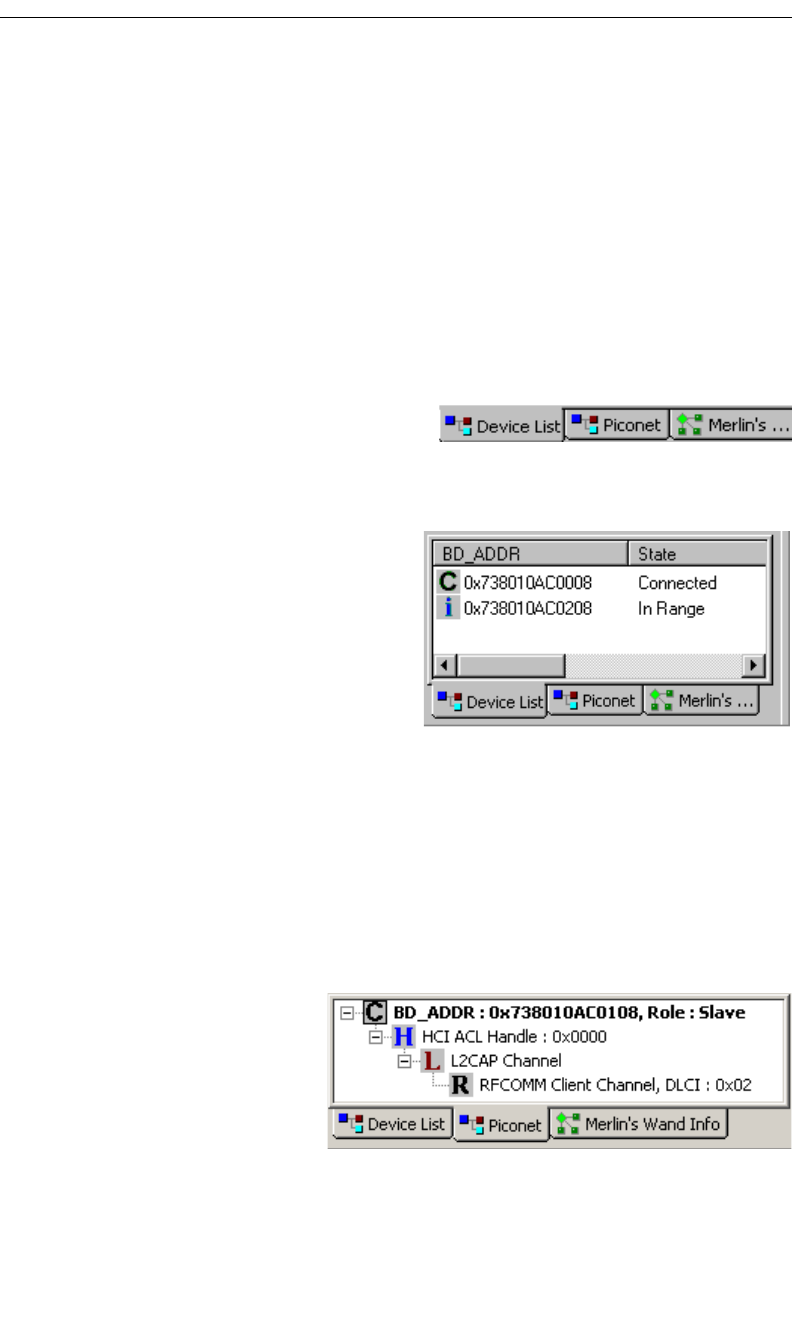

• The Device Status
window is on the left side
of the interface. It contains three tabs: Device List, Piconet, and
Merlin’s Wand Info.
• Device List - Displays
a list of devices that
Merlin’s Wand has
discovered. It also
contains information
about the devices
found, such as the
Bluetooth address, the
state, the role, the class, and the device’s local name. This
window is open by default. These symbols in the list indicate a
device’s state: C = Connected; i = In Range. Right-clicking on
a listed device opens the Device List Pop-Up Menu. The
menu presents the following options: Connect, Add Audio
Connection, Get Device Information, Delete, and Disconnect
All. For details on using the Pop-Up Menu, see Chapter 6,
Device Search and Device List Pop-Up Menu, on page 63.
• Piconet -
Displays a
hierarchical
list of all
connections
between
Merlin’s Wand and other devices. At the top of the list is the
address of the connected device; below it are the various
channels established between Merlin’s Wand and the device.
Symbols: C = Connection; H = HCIACL; S =HCISCO;
L =L2CAP; R = RFCOMM; O =OBEX.
