CATC MERLIN’S WAND 1.22 CHAPTER 1
User’s Manual Overview

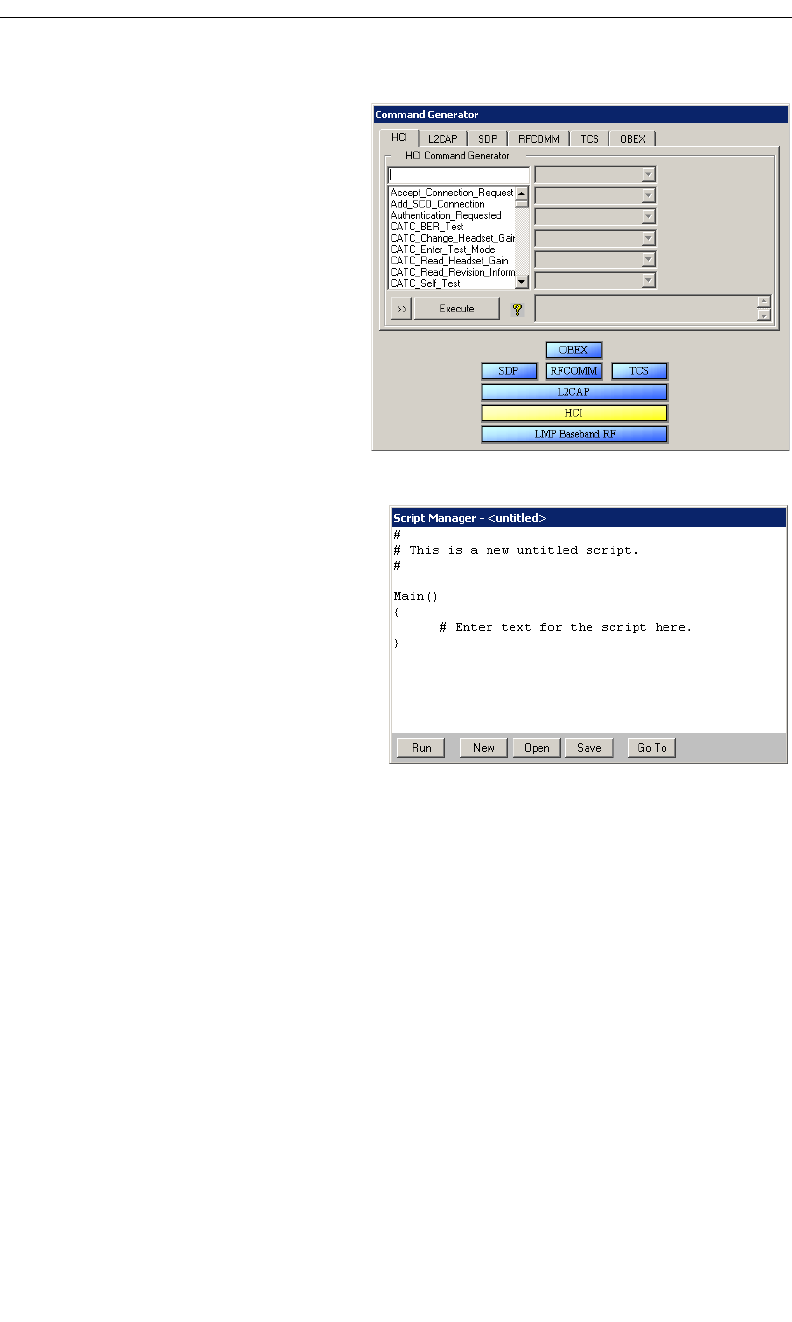

Command Generator is a
tool that presents a menu of
protocol commands that can
be selected and executed in
virtually any sequence.
Command Generator thus
offers maximum control over
the traffic generation process,
but also requires familiarity
with the Bluetooth
commands. Command
Generator is described in
Chapter 4, Command
Generator, on page 39.
Script Manager is a tool that
provides an editor for writing
and/or executing scripts that
will generate Bluetooth
wireless traffic. With Script
Manager, new scripts can be
written and saved, or existing
scripts may be opened, edited,
and run. Script Manager is
described in Chapter 5, Script
Manager, on page 53.
1.3 Key Features
• Plug-and-play USB connection between test system and test module
• External antenna can be removed to create wired piconet
• Audio connector for connecting audio devices, such as headsets
• Can operate as either a master or slave device in a piconet
• Graphical interface allows for easy selection of command parameters
• Wizard provided to reduce learning curve and memorization of
command sequences
• Test modes provide for these Bluetooth wireless technology protocols:
HCI, L2CAP, SDP, RFCOMM, TCS, and OBEX
• Scripting capability for establishment of predefined test sequences
• System information report provides details regarding device under test
