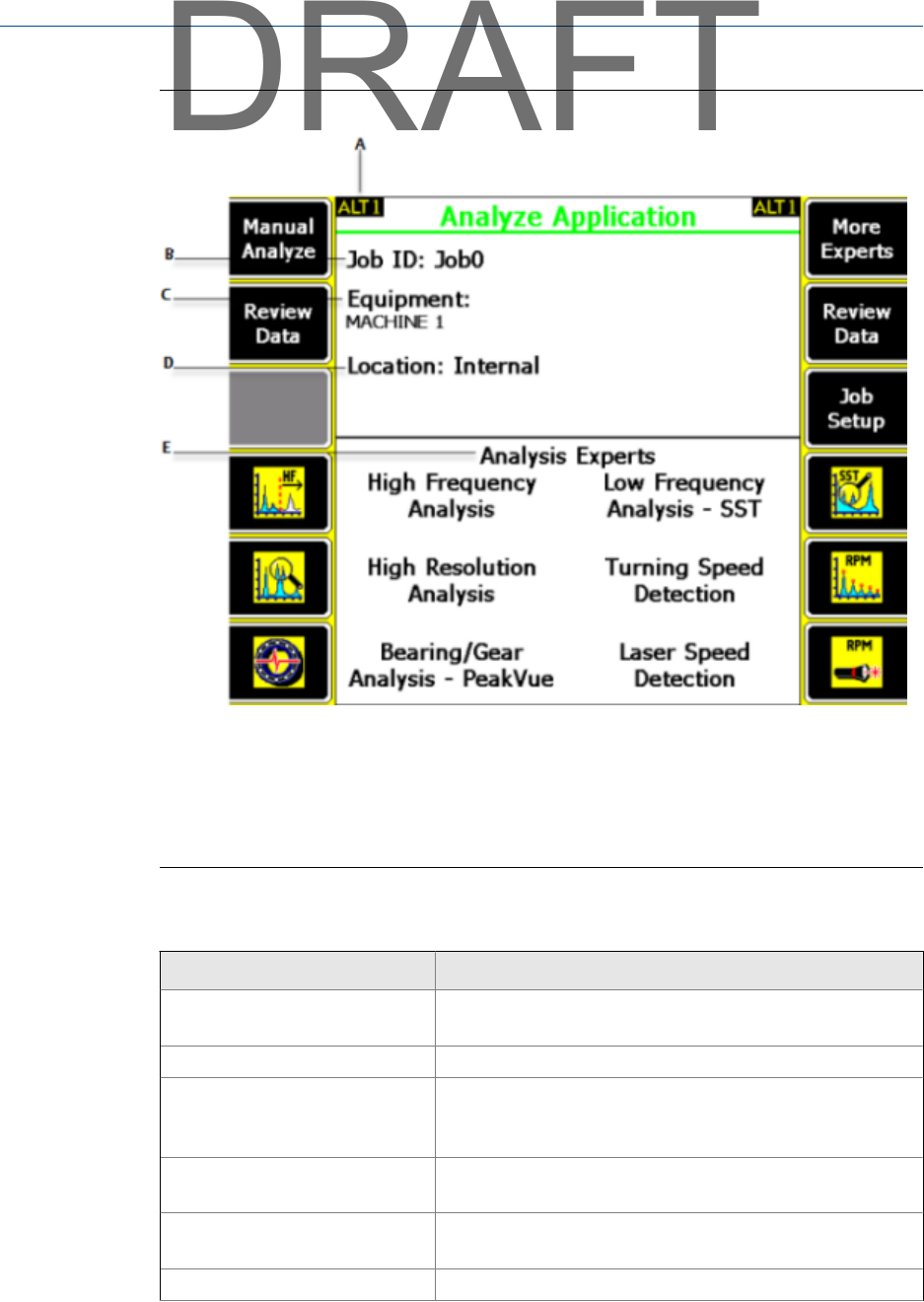

Analyze main menuFigure 6-1:
A. An alternate (ALT) screen includes additional options.
B.
The identifier for the job.
C. The equipment description.
D. Where the job file is in the analyzer. If the job is on a memory card, "Card" appears.
E. The predefined measurements you can run. The F7 More Experts key displays additional
measurements.
ALT1 keys
Option Description
F1 Manual Analyze Set up and collect various types of data, including waveform,
spectrum, and cascade.
F2 Review Data View previously collected data.
F3 Listen to Live Data Listen to vibration using wireless headphones without
collecting data. When you select a measurement, the audio
turns off.
F4 High Frequency Analysis Collect data using a higher Fmax value. This is useful when the
right side of the spectrum has many peaks.
F5 High Resolution Analysis Collect data with a higher resolution to separate closely-
spaced peaks.
F6 Bearing/Gear Analysis - PeakVue Detect anti-friction bearing or gear defects.
Analyze and Advanced Analyze
89
