Double scale
0-360° clockwise
0-360° counter clockwise
Magnetic backing
Requires vertical orientation on axial face of the shaft or rotor

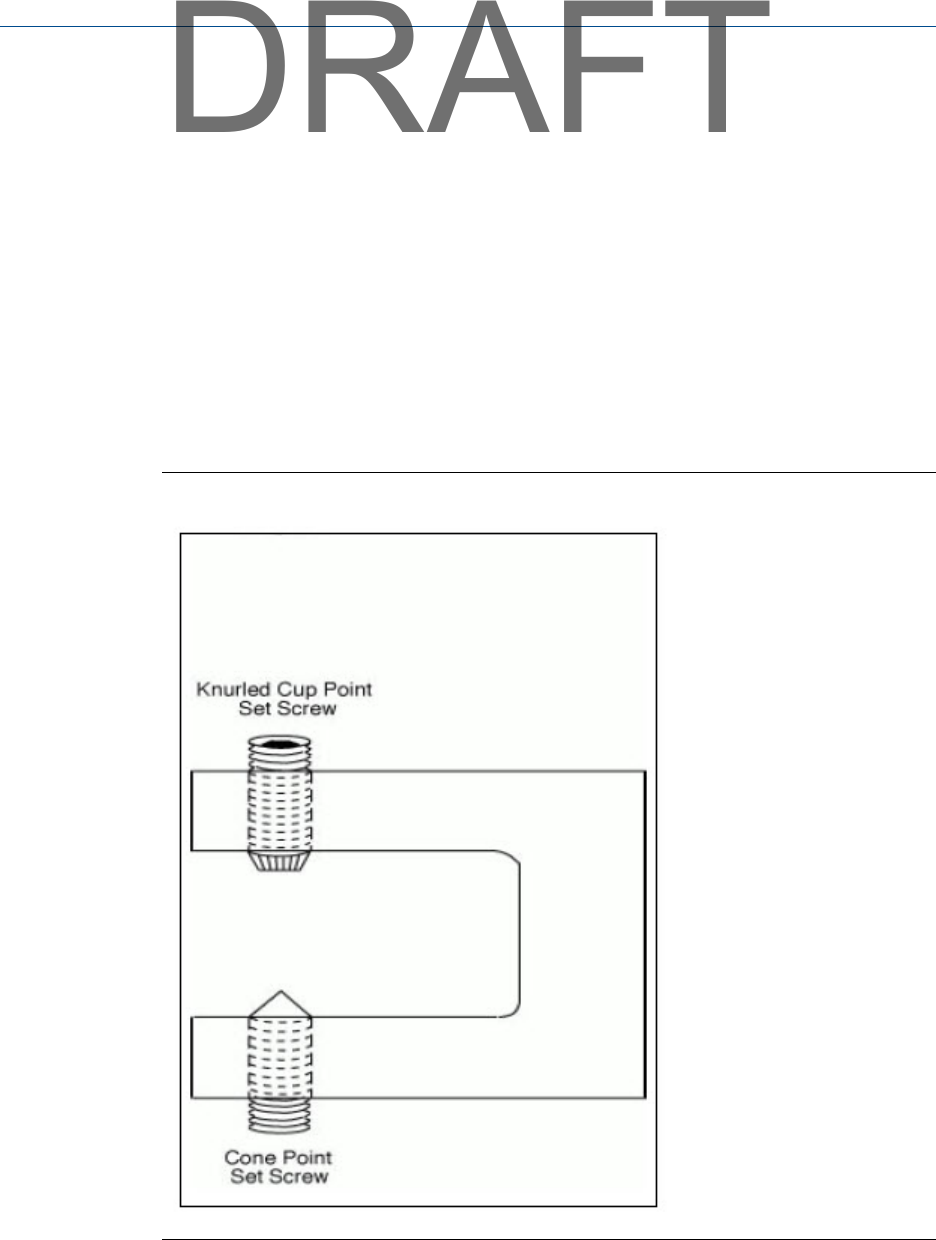

9.17.2 Clamp-on reusable trial weights
The CSI Model 8BA20 Trial Weights Assortment includes nine reusable clamp-on trial
weights. Weights are clamped on by using knurled cup point set screws in combination
with cone point set screws on the opposing side.
Reusable trial weightFigure 9-14:
Balance
250
