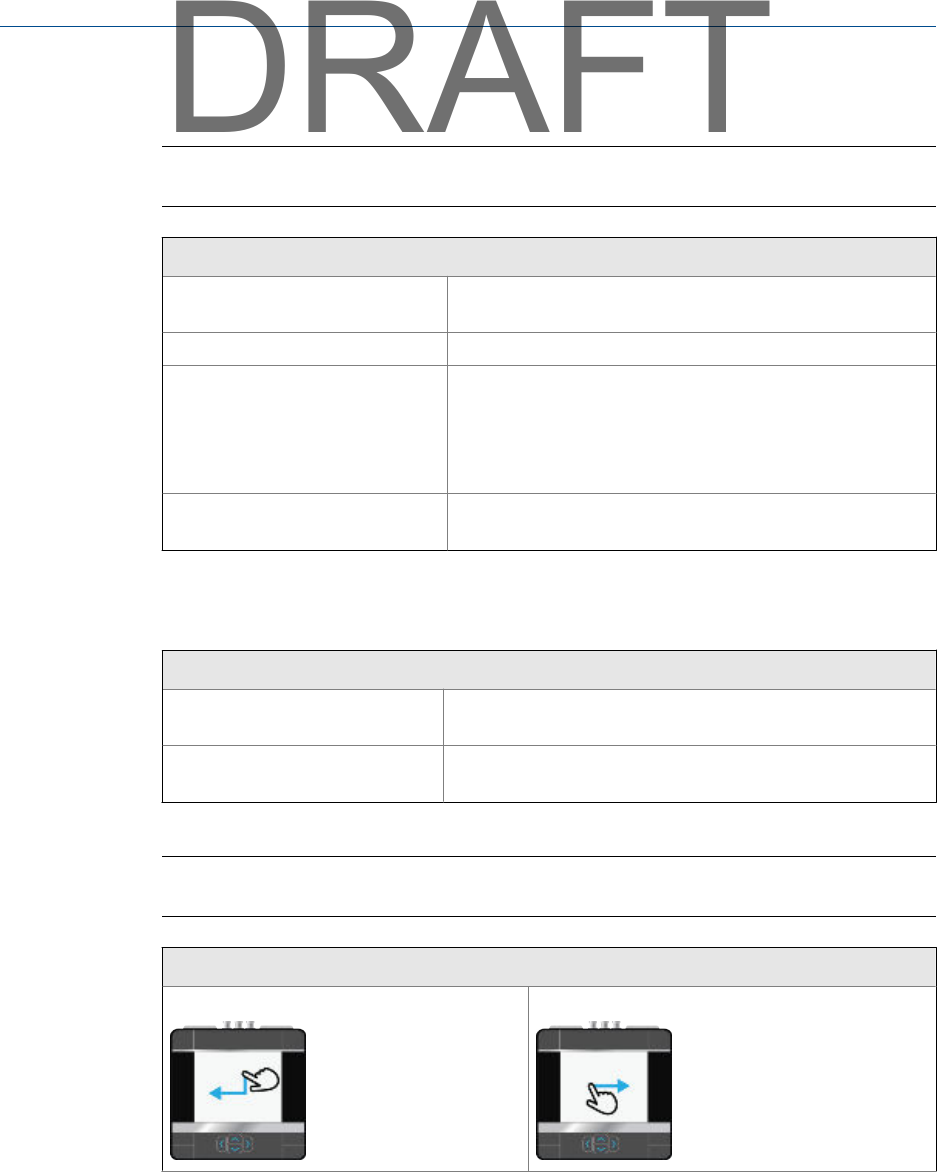

Gestures for plots
Note
You cannot use gestures when using Log for the plot axis. The Enter gesture does not work on plots.
Working with plots
Activate a plot Touch the desired plot when the analyzer displays multiple
plots.
Add a cursor Touch anywhere on the plot.
Move a cursor Swipe left or right, or touch anywhere on the plot. On a
waveform, the cursor moves 20 percent of the waveform. On
a spectrum, the cursor moves to the next highest peak. To
clear a cursor, use the Clear Cursor option on the plot's ALT
screen.
Increase or decrease the plot
amplitude
Swipe up or down.
Gestures for menus and text
Entering text or selecting options
Use upper or lower case
characters
Swipe up or down.
Scroll items in a list Swipe up or down. This also applies to the options on the
Balance main menu.
Tip
Use consistent pressure when you press in the middle of the touchscreen as indicated below.
Gestures
Enter Right arrow (swipe right)
