• Lines connecting the reference run reading and up to two additional trim readings,
always using the last two trim run readings, for each measurement point defined for
the plane.
• % Down (percent of magnitude change) - Relationship between the most recent trim run
reading and the initial reading.
• % Spec (percent of spec) - Relationship between the most recent trim run reading and
the balance specification.
• In Spec - “Yes” in the In Spec column means the magnitude reading is within
specification. “No” in the In Spec column means the magnitude reading is not within
specification.
If the analyzer subtracts runout data, the magnitude reading displayed under Tolerance
Check also has runout subtracted. View collected data with the runout correction relative
to the balance specification.
9.9.3 View the trim correction
1. From the Balance main menu, press F5 View Corr.
Note
If the measurement response between the reference run and the trial run data changes fewer
than 5 percent, a warning message displays when you select Trim Run Correction. Press Enter to
continue. Remember that insufficient vibration magnitude changes can produce inaccurate
influence coefficients.

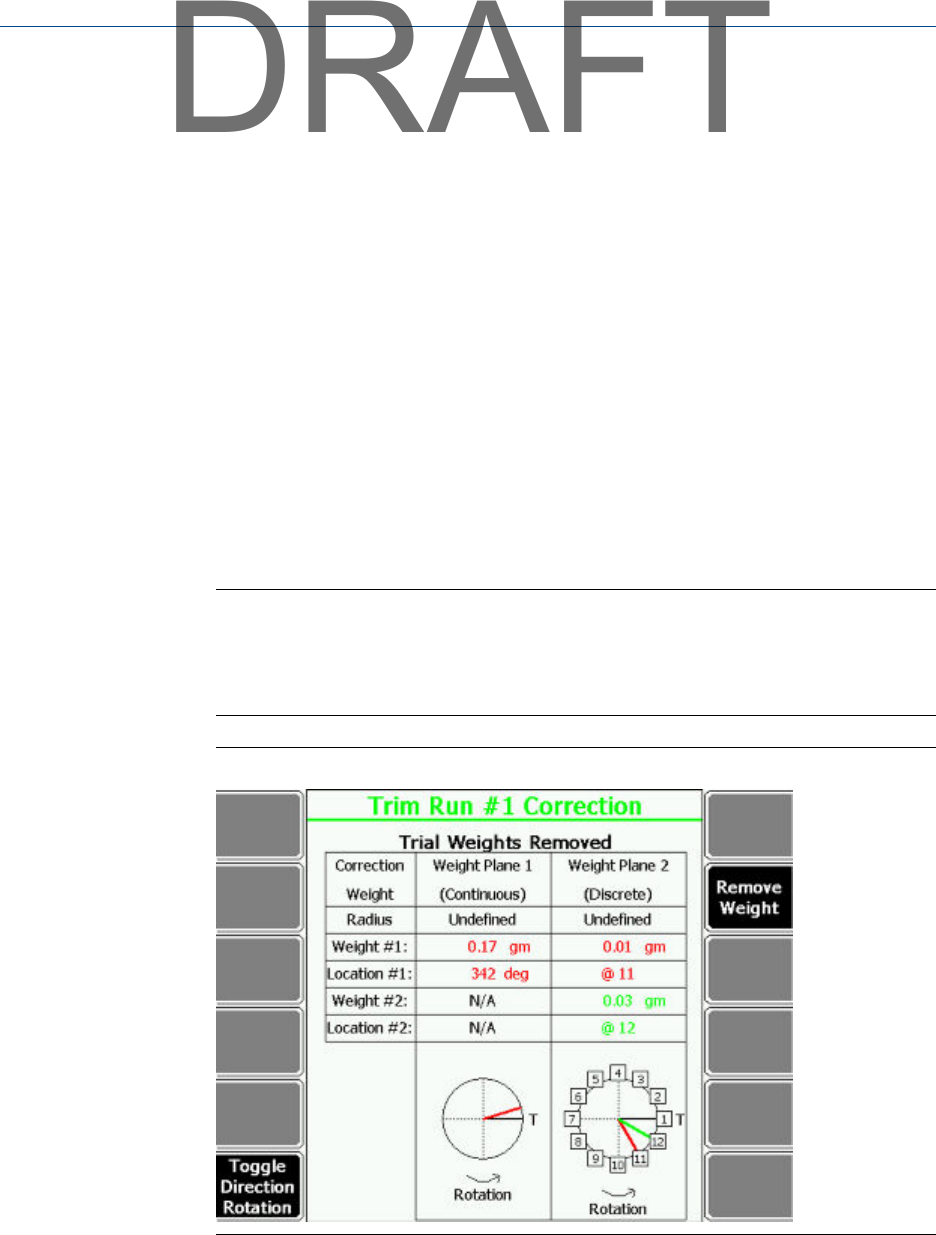

Trim Run CorrectionFigure 9-6:
2. Press Enter.
3.
Acquire trim run data, if you are doing a multi-plane balance job.
Balance
223
