2.2 Front view

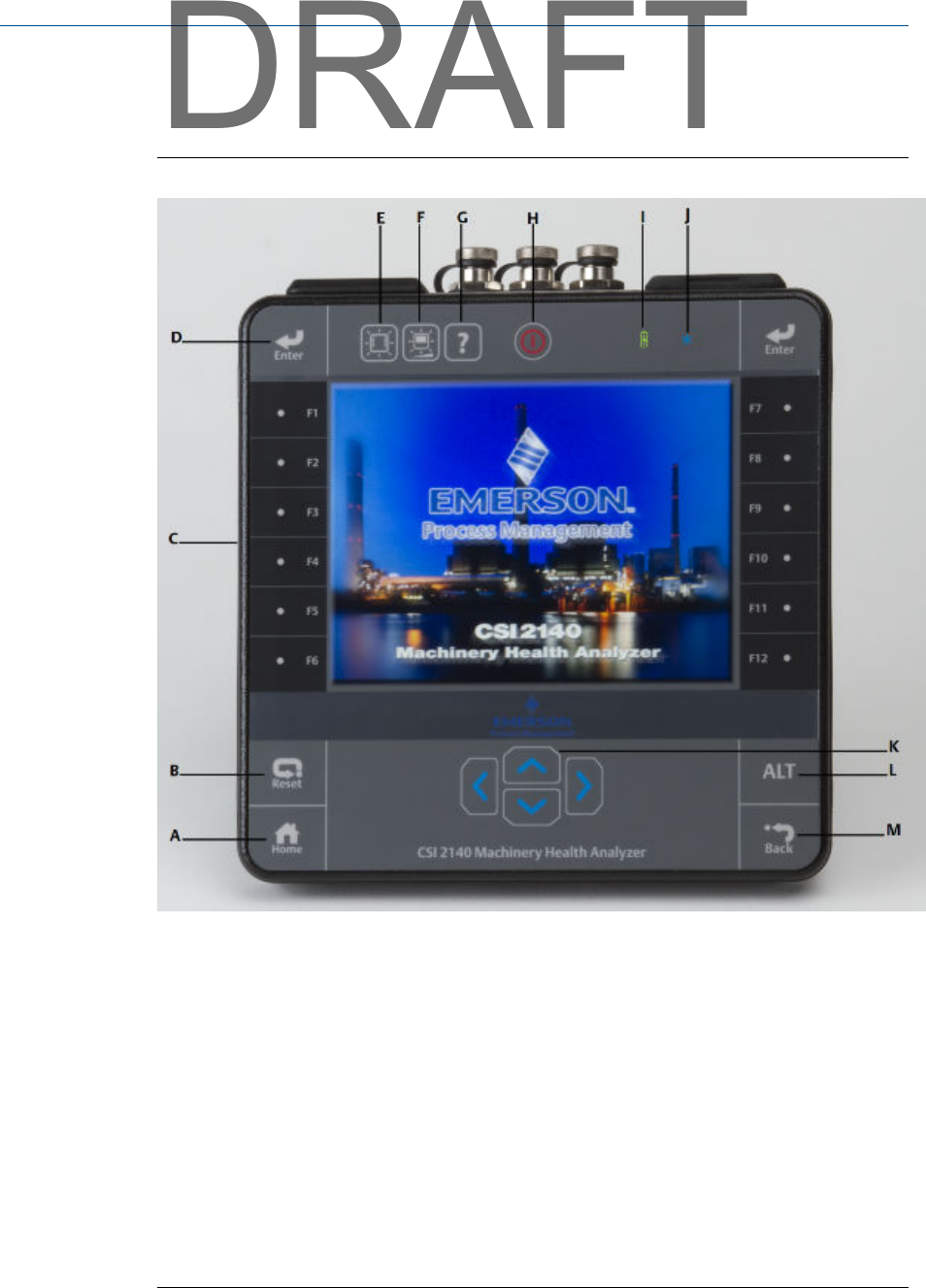

CSI 2140 front panelFigure 2-1:
A. Home key - Return to the Home screen from any program.
B.
Reset key - Return to the main menu in a program.
C. Function keys - Displays menu options.
D. Enter key - Select a menu or option.
E. Keypad backlight key - Turn on the backlight under the keys.
F. LCD backlight key - Set the backlight for the LCD touchscreen. Four settings are available.
G. Help key - Display Help text for a key.
H. Power key -Turn the analyzer on or off, or put the analyzer in standby.
I. Battery LED - Display a green LED if the battery pack is charged, or an orange LED if the battery pack
is charging.
J. Status LED - Flash a blue LED each time you press a key or option. The blue LED also appears when
the analyzer is in standby.
K. Arrow keys - Move through menus.
L. ALT key - Display an alternate screen.
M. Back key - Back up to the main menu in a program.
Introduction to the analyzer
