Appendix IV Panel Views and Descriptions

131

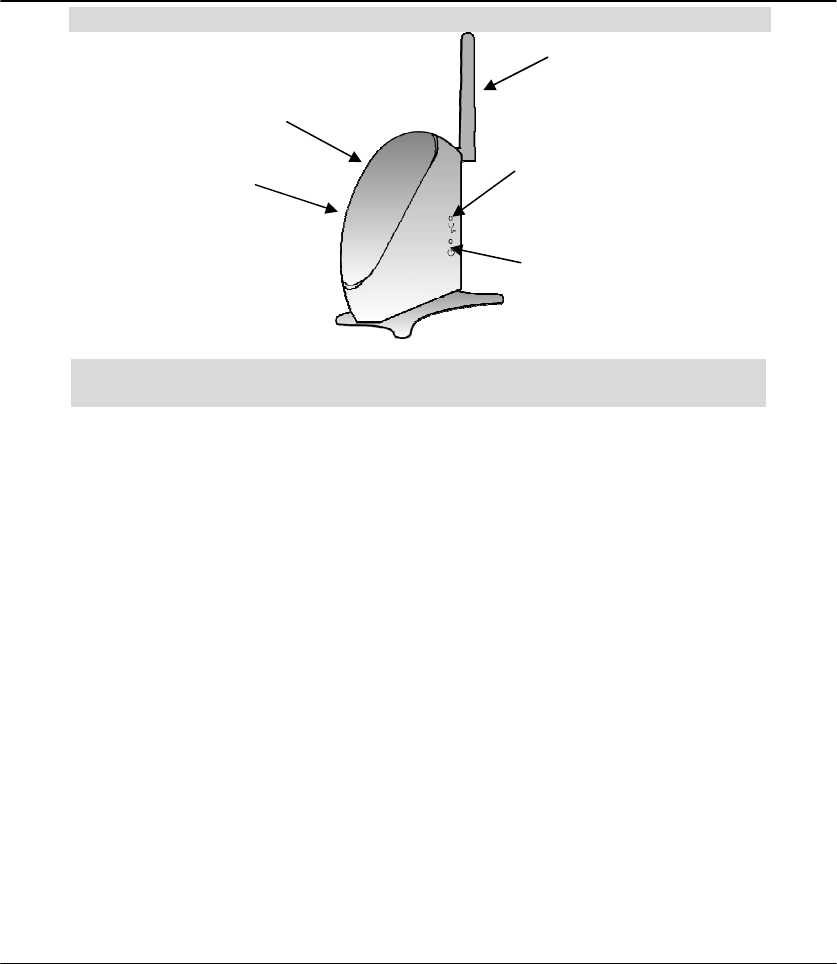

Appendix IV Panel Views and Descriptions

Features Status and Indications

Steady Yellow The access point is operating at the speed of

10Mbps.

1 LAN Link/Act

LED

Steady Green The access point is operating at the speed of

100Mbps.

Steady Green More than 1 wireless client is present in the

wireless network.

2 WLAN Link/Act

LED

Blinking Green Activity is detected in the wireless network.

Steady Green The device is in access point or gateway

mode.

Blinking Green The device is booting.

3 Diagnostic LED

Off The device is in Client mode.

Steady Blue Power is supplied to the device.

4 Power LED

Off No power is supplied to the device.

5 Antenna 2dbi antenna
