Installing the Monitor
2-15
Compaq Confidential – Need to Know Required
Writer: Caroline Juszczak Project: Compaq Flat Panel Monitor Rackmount (TFT5000R) User Guide Comments:
Part Number: 141559-001 File Name: c-ch2 Installing the Monitor Last Saved On: 8/3/99 11:29 AM
17. Place the AC adapter onto the power supply tray.

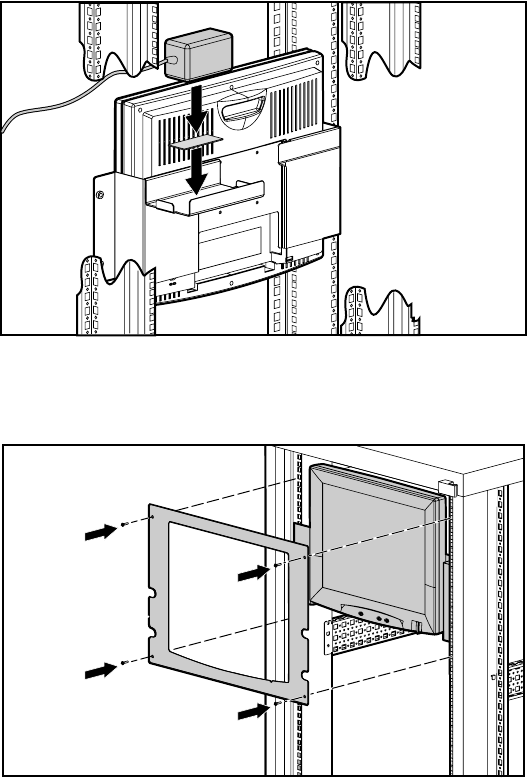

Figure 2-22. Placing the AC adapter onto the power supply tray
18. Move the faceplate into position over the cage nuts and secure it to the
rack with four M6 screws.
Figure 2-23. Attaching the faceplate
