3. Install the replacement power supply by lifting up on the power supply
module latch 1 and pushing in on
the blower base 2 until the assembly is
fully
seated in the enclosure.

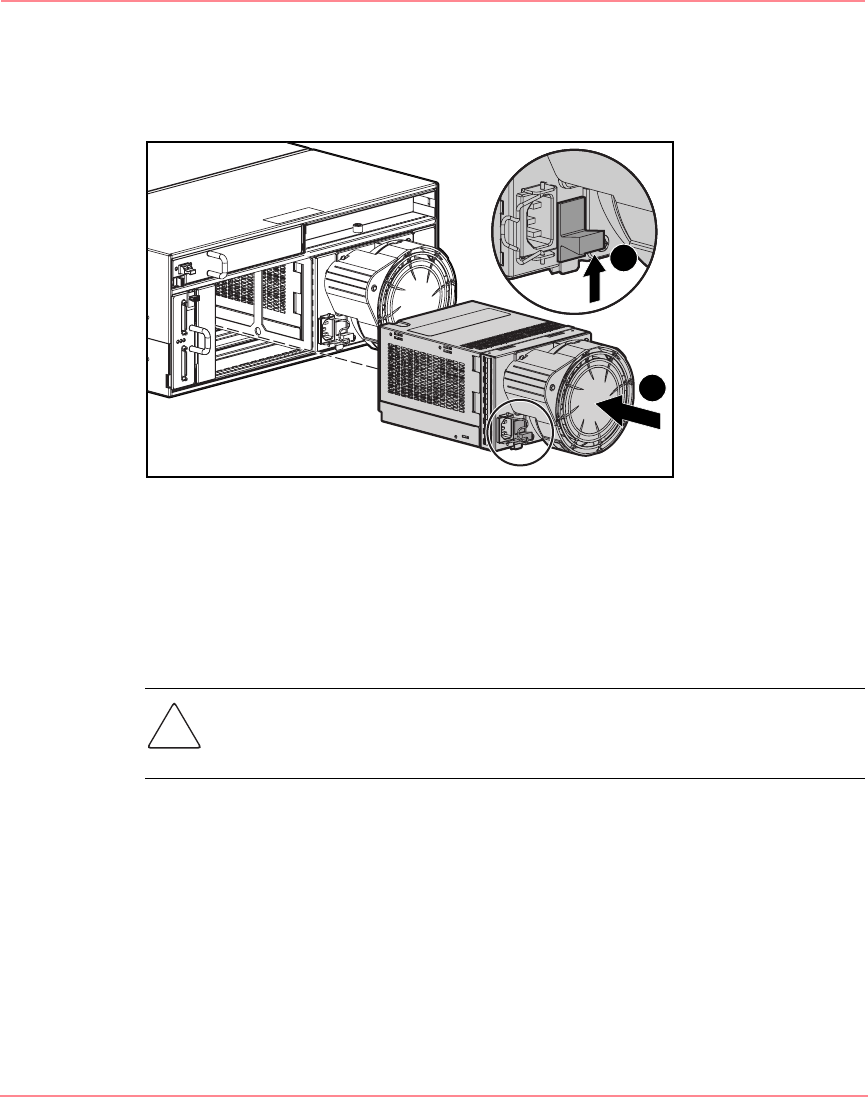

Figure 38: Installing the replacement power supply
4. Re-connect the AC power cord to the replacement power supply and engage
the cord lock.
Replacing Hard Drives
Caution: To replace a hot-pluggable drive, it is important to follow the
guidelines in this section. Failure to do so could result in data loss and could
void your warranty.
Drive failure is indicated by an amber Drive Failure indicator.
RAID 0 is not a fault-tolerant configuration. Never remove a drive from a RAID 0
array unless it has failed. If you are using a RAID 0 configuration, removing an
operating drive is not allowed and will result in loss of data.
To remove a working drive without losing data, the entire array must be backed
up, the drive must be replaced, and the entire array must be restored. Backing up a
single drive and replacing it will not restore the array.
2
1
