Caution: Pressing on the center section of the blower can damage the blades.
To prevent this, press only on the outer edge of the blower.
2. Align the new blower’s guidepost 2 with the power supply connector 1.
Slide the replacement blower into the blower base 4 until the tabs 3 snap into
place.
See Figure 36 for an illustration.

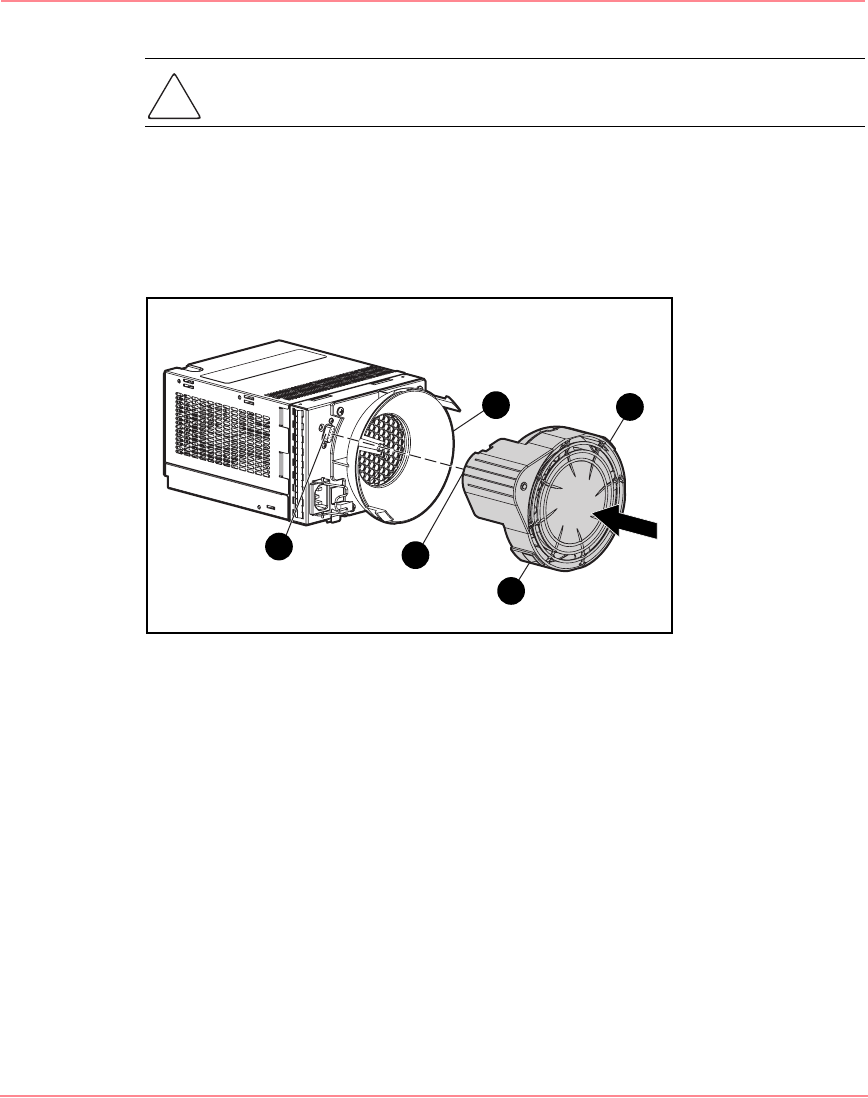

Figure 36: Installing the replacement blower
3. Make sure the following operational blower indications occur:
a. The blower starts operating immediately.
b. The blower indicator is On.
2
4
3
3
1
