Operation and Management
66 Modular SAN Array 1000 User Guide

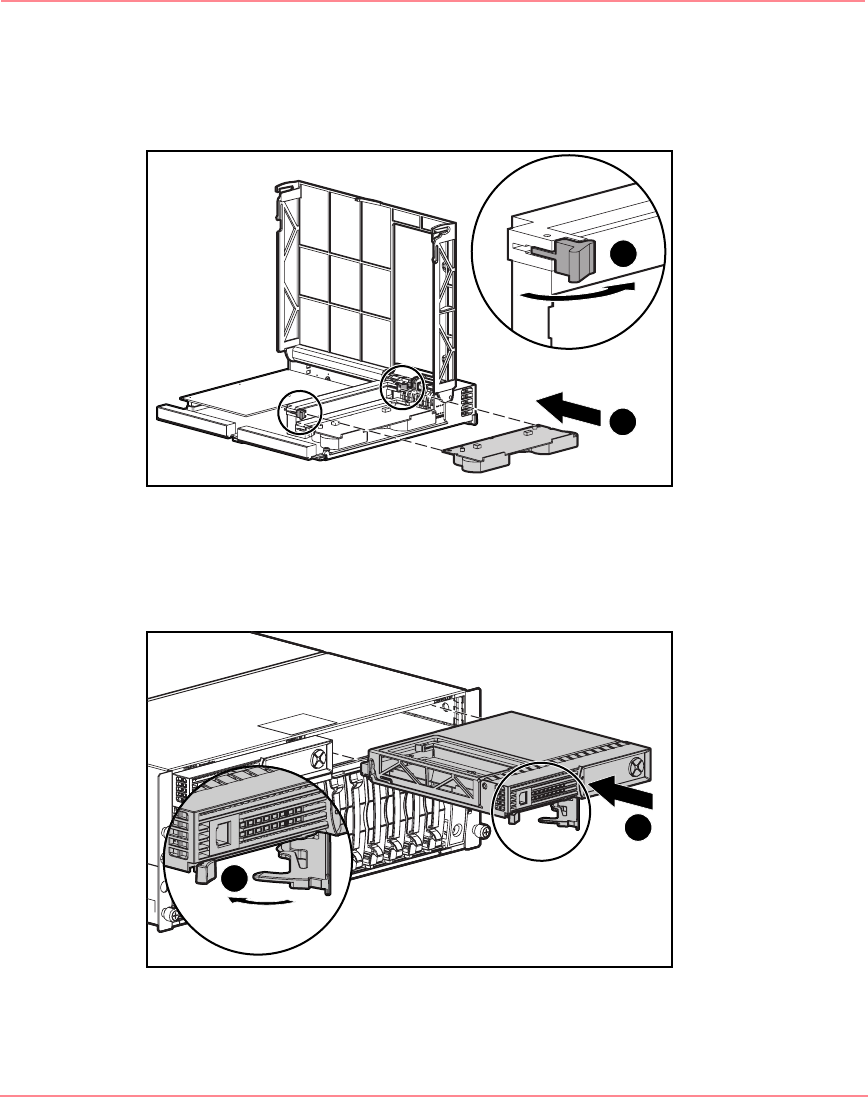

6. Install the new MSA1000 Controller cache by sliding the new MSA1000
Controller cache into the controller 1. Be sure the side latches are fully
engaged 2. See Figure 28.
Figure 28: Installing the cache module
7. Push the controller in as far as it will go 1; press the latch inward until it is
flush against the front panel 2. See Figure 29.
Figure 29: Installing the controller
1
2
1
2
