3. As illustrated in Figure 27, unlatch the clips that are holding the MSA1000
Controller cover 1 and raise the cover 2.
4. Simultaneously unlatch the clips that are holding the MSA1000 Controller
cache in place 3.
5. Carefully pull the cache away from the controller board 4.

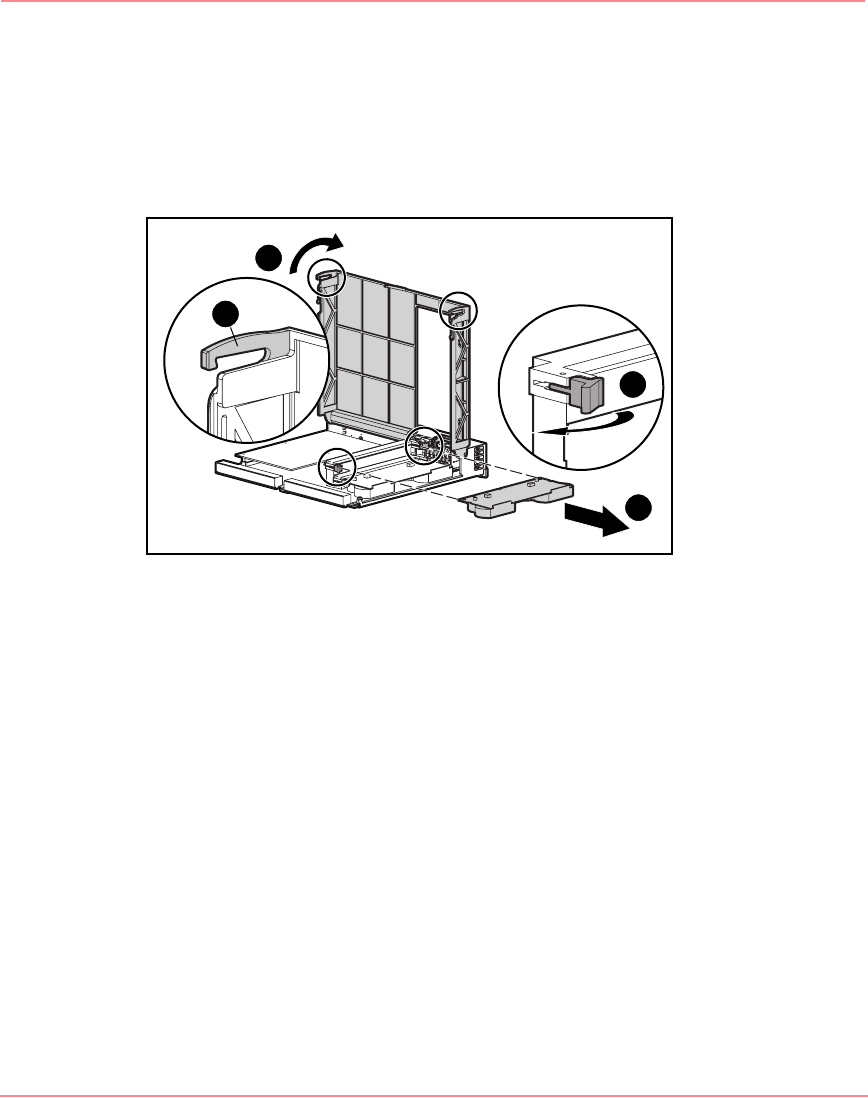

Figure 27: Removing the cache module
4
2
3
1
