Operation and Management
56 Modular SAN Array 1000 User Guide
SCSI I/O Module with Integrated EMU Indicators
The SCSI I/O Module has three indicators. The following figure and table
describe their locations and meanings.

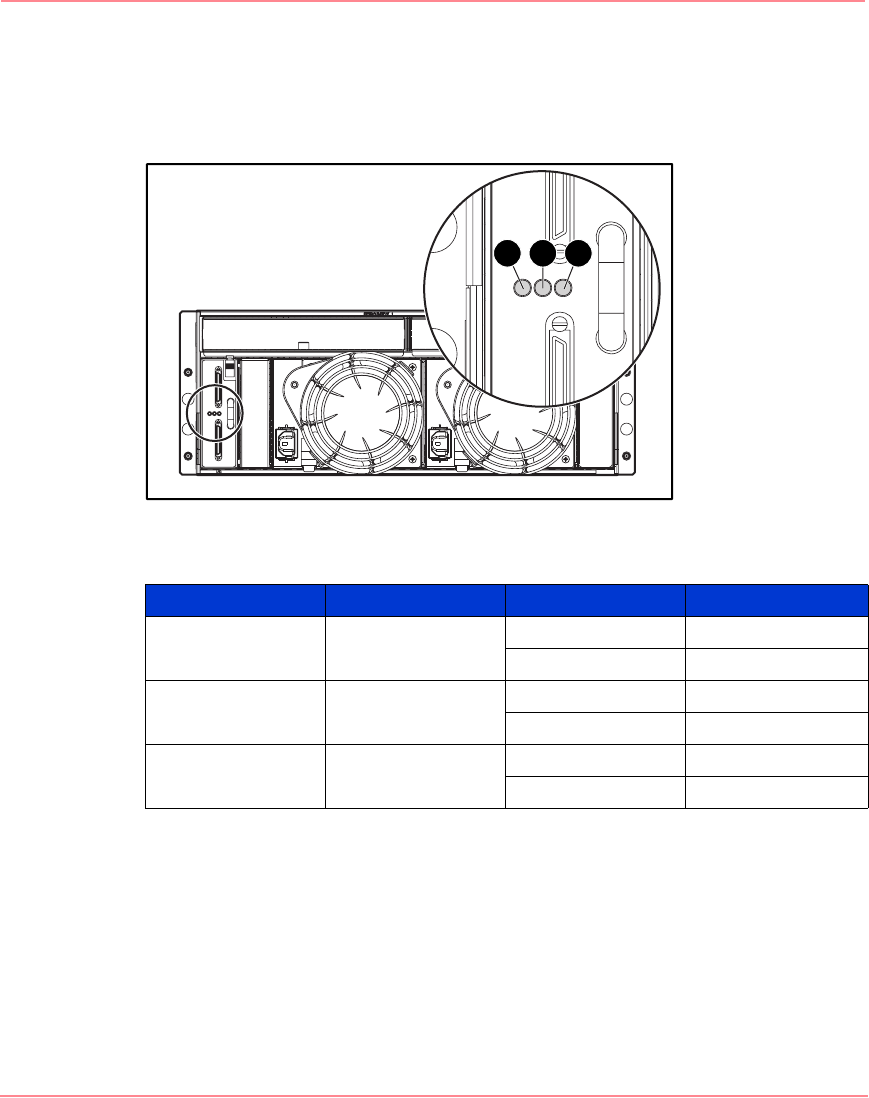

Figure 21: SCSI I/O Module with Integrated EMU
Number Indicator Condition Meaning
1
Power Solid green Power on
Off Power off
2
SCSI Host Port A Green/Flashing On/Activity
Off Off
3
SCSI Host Port B Green/Flashing On/Activity
Off Off
1 2 3
