MSA1000 Setup and Sample Configurations
46 Modular SAN Array 1000 User Guide
Embedded MSA SAN Switch 2/8 Configurations
The following illustrations provide examples of an MSA SAN Switch 2/8
installed in the MSA1000.
Figure 15 shows the MSA1000 in a non-redundant configuration and Figure 16
shows the MSA1000 in a redundant configuration.

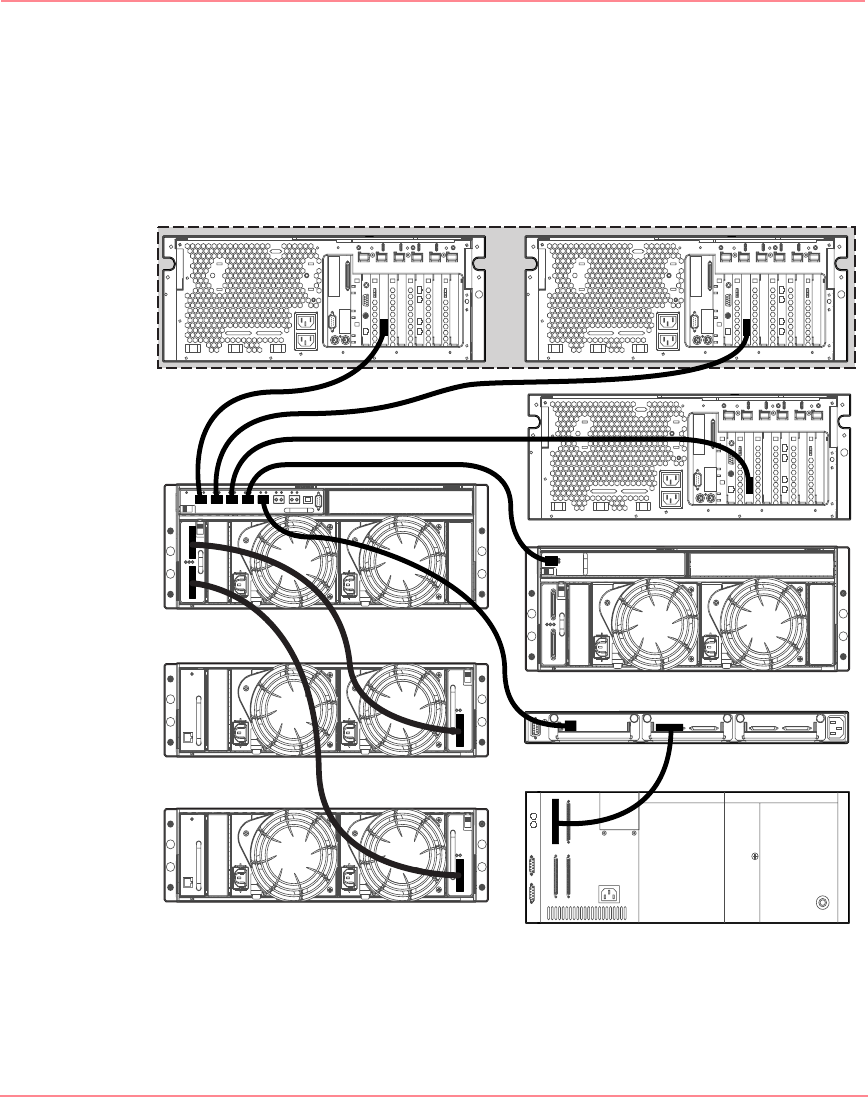

Figure 15: MSA SAN Switch 2/8, non-redundant configuration
654321
Cluster
Server
MSA1000
Tape Back-up
654321
654321
MSA1000
4314 storage enclosure
4314 storage enclosure
Router
230941-005_MSA1000_UG.book Page 46 Thursday, April 17, 2003 5:53 PM
