MSA1000 Setup and Sample Configurations
45Modular SAN Array 1000 User Guide
When a redundant configuration is set up using external SAN switches, two
MSA1000 Controllers, two Fibre Channel I/O modules, two SAN switches, and
two HBAs in each server are required.
Figure 14 illustrates the cable connections of a redundant configuration when
external SAN switches are connected to the Fibre Channel I/O modules of the
MSA1000.

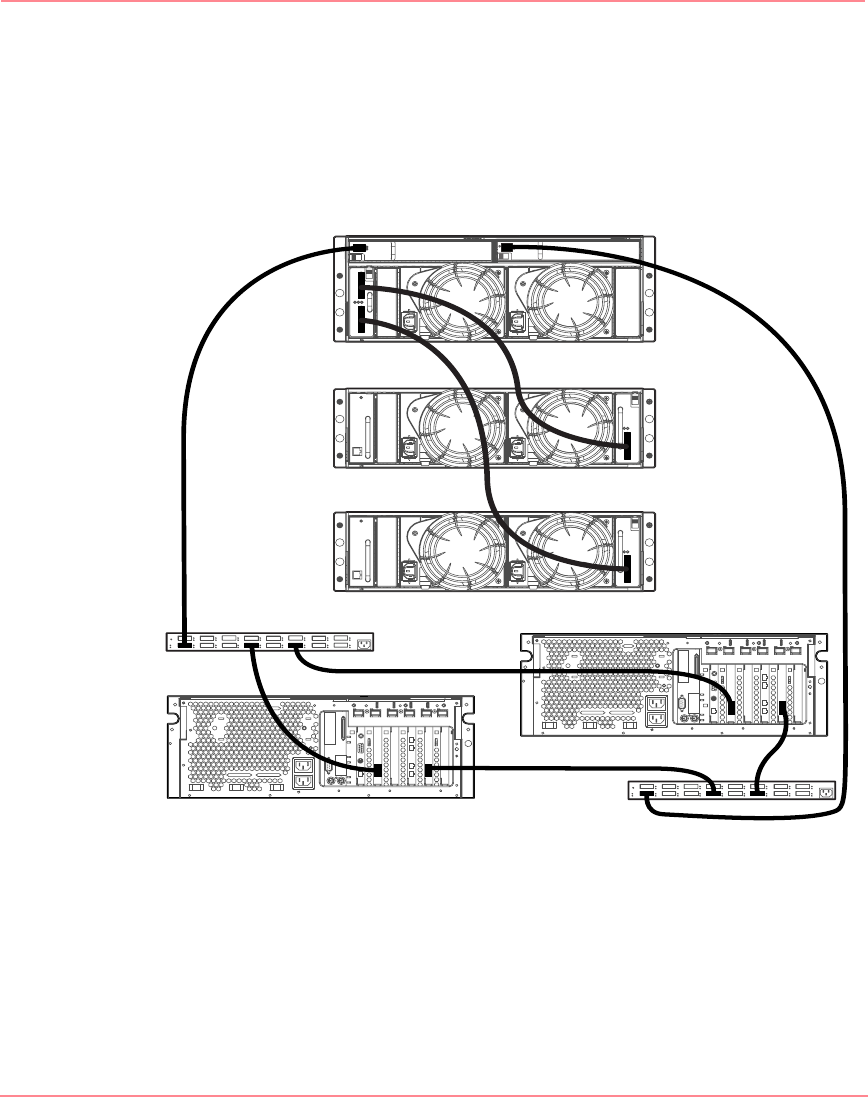

Figure 14: I/O module connected to an external SAN switch, redundant
configuration
654321
654321
Server 1
Server 2
Switch 2
Switch 1
MSA1000
4314 storage enclosure
4314 storage enclosure
