MSA1000 Setup and Sample Configurations
44 Modular SAN Array 1000 User Guide
Another common configuration includes connecting an external SAN switch to
the Fibre Channel I/O module of the MSA1000.
Figure 13 illustrates multiple servers and multiple MSA1000s connected to a SAN
switch in a non-redundant configuration.

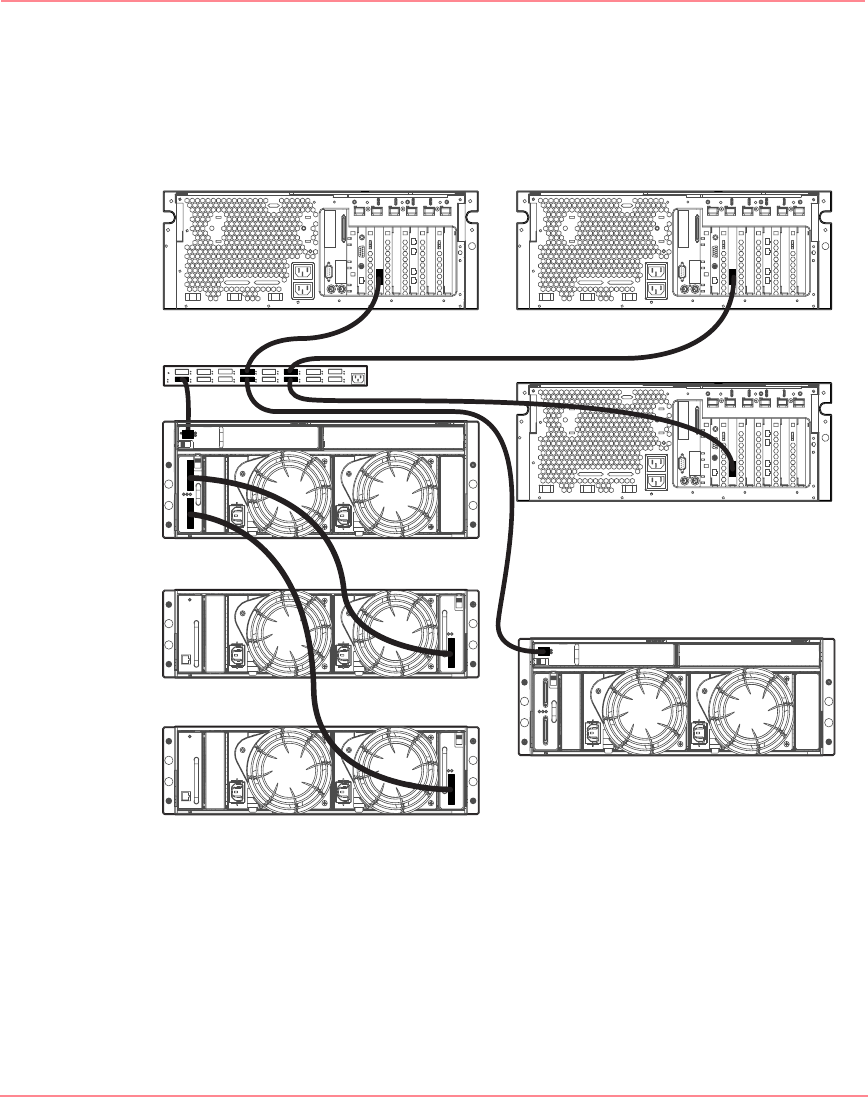

Figure 13: I/O module connected to an external switch, non-redundant
configuration
654321
Server 1 Server 2
654321
654321
Server 3
Switch
MSA1000
MSA1000
4314 storage enclosure
4314 storage enclosure
