Introduction
15Modular SAN Array 1000 User Guide
SCSI I/O Module with an Integrated Environmental Monitoring Unit
(EMU)
This element performs several functions, including monitoring the enclosure
operation, detecting and indicating errors, providing I/O connectors, and
displaying enclosure status.

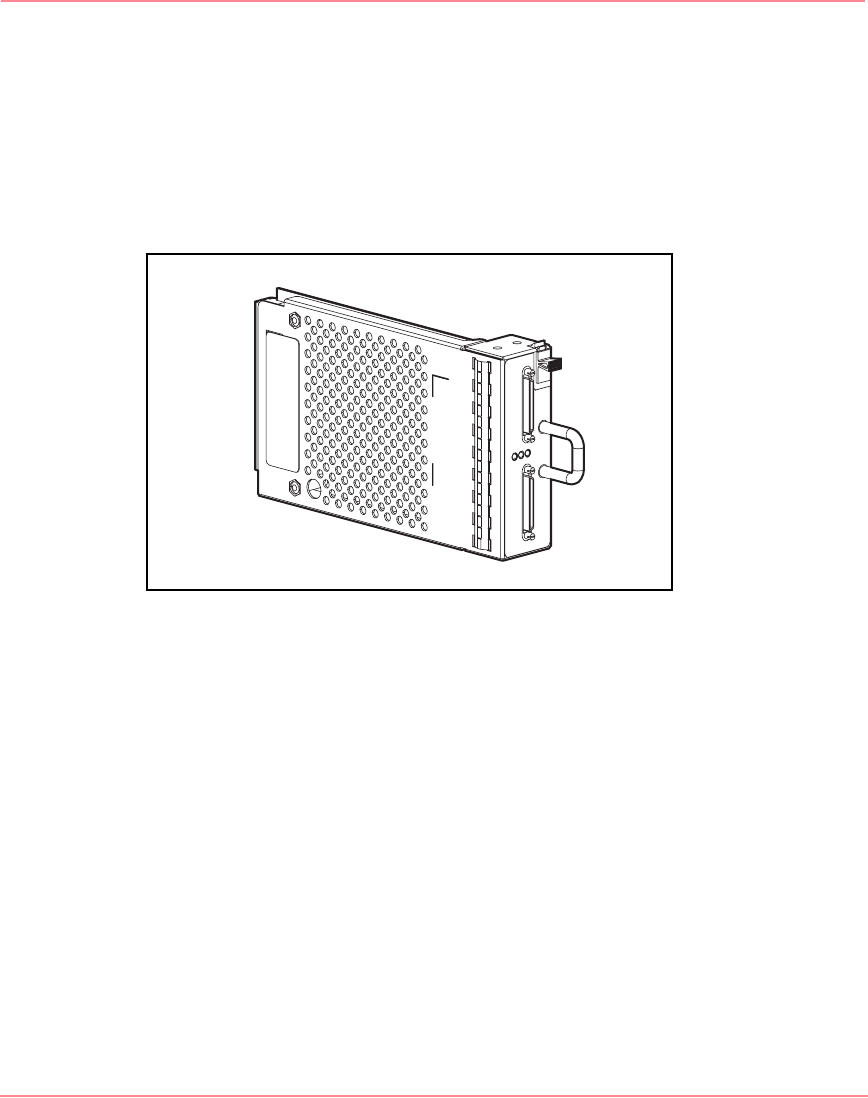

Figure 5 is an illustration of a SCSI I/O Module with the integrated EMU.
Figure 5: SCSI I/O Module with an integrated Environmental Monitoring Unit
EMU functions include:
■ Monitoring the power supply voltages
■ Monitoring the power supply and enclosure temperatures
■ Monitoring the presence and status of hard drives
■ Detecting and reporting element changes in the enclosure and showing the
addition or removal of a hot-pluggable component
■ Controlling drive status indicators
■ Providing expansion ports for external HP StorageWorks enclosures
For more information on the EMU, including installation and removal and status
indicators, refer to the “Enclosure Status Indicators” section of the “Operation and
Management” chapter.
