Introduction
6 Modular SAN Array 1000 User Guide
Rear View of the MSA1000
The following figure and supporting table illustrate and define the features and
components on the rear of the MSA1000.

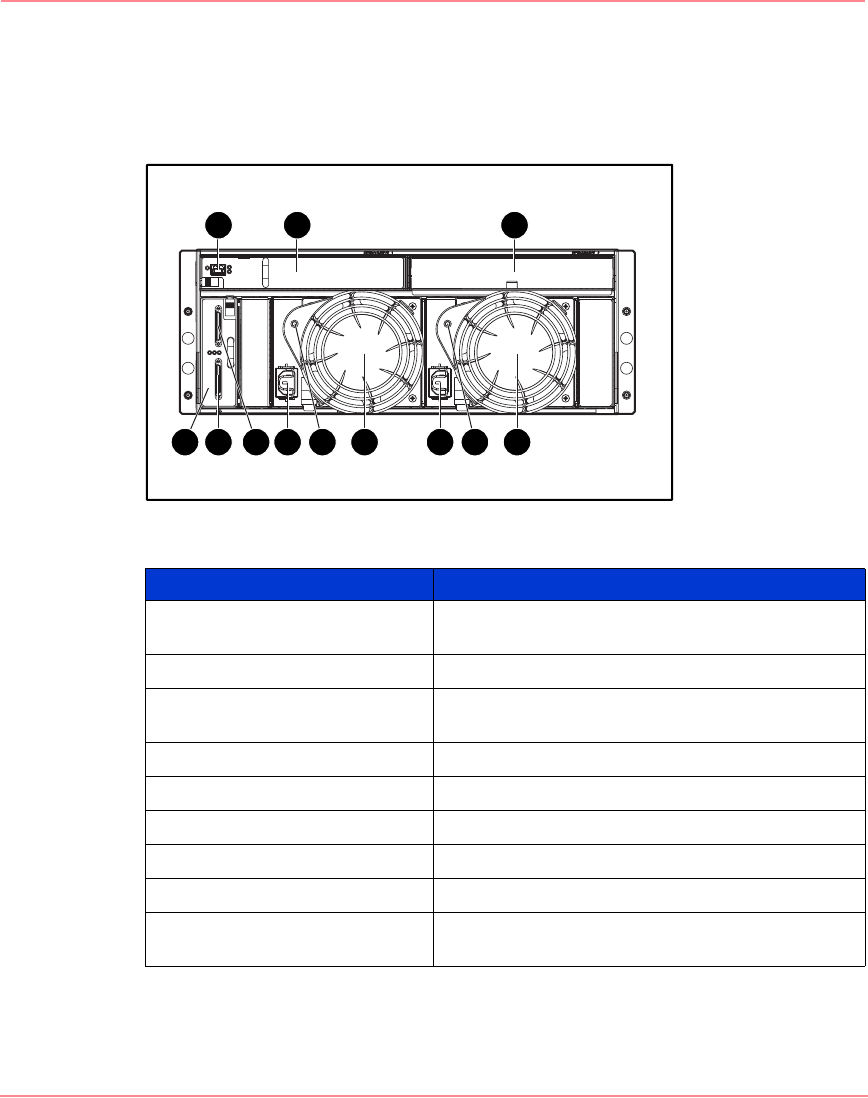

Figure 2: Rear view of the MSA1000
Item Description
1
2-Gb Small Form Factor Pluggable Transceivers
(SFP)
2
Fibre Channel I/O Module
3
Blank panel (when hot-pluggable options are not
installed)
4
Power supply/blower assemblies
5
Power supply/blower assembly indicators
6
AC power cord connectors
7
SCSI Port A connector
8
SCSI Port B connector
9
SCSI I/O Module with an integrated
Environmental Monitoring Unit (EMU)
321
46 546 5789
