Introduction
5Modular SAN Array 1000 User Guide
Front View of the MSA1000
The following figure and supporting table illustrate and define the front view
features of the MSA1000.

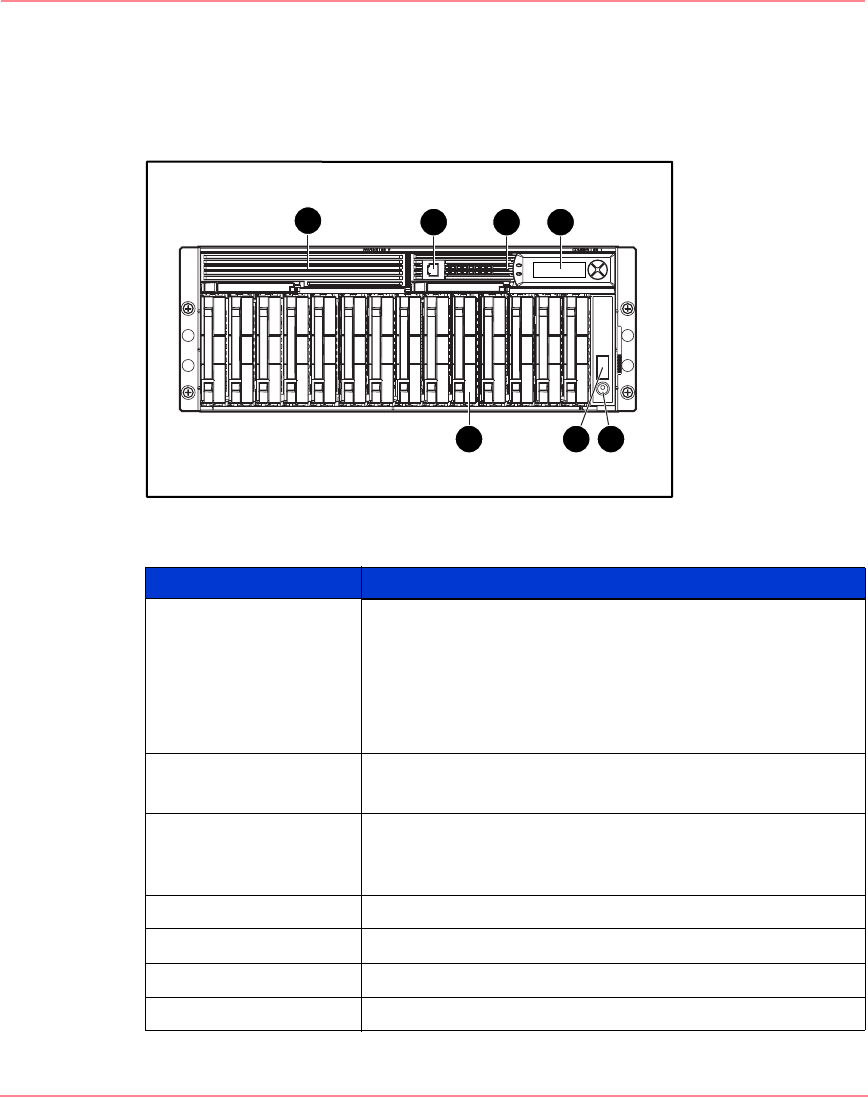

Figure 1: Front view of the MSA1000
Item Description
1 Blank panel
Included in the standard shipping configuration and
removed when a redundant MSA1000 Controller is
installed.
In redundant configurations, this is the secondary
controller and may be referred to as controller2.
2
RJ-45Z customized serial port for accessing the CLI
One customized cable is included in the shipping carton.
3
Hot-Pluggable MSA1000 Controller
In redundant configurations, this is the primary controller
and may be referred to as controller1.
4
Controller LCD display
5
Power switch
6
Enclosure status indicators
7
Hot-pluggable hard drives
1
3 42
7 6 5
